AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
AZ150 Hot Dipped Galvalume Steel Coils GL 0.50mm 1200mm ASTM A792M CS-B Anti-Finger Print
What Are The Galvalume Coils?

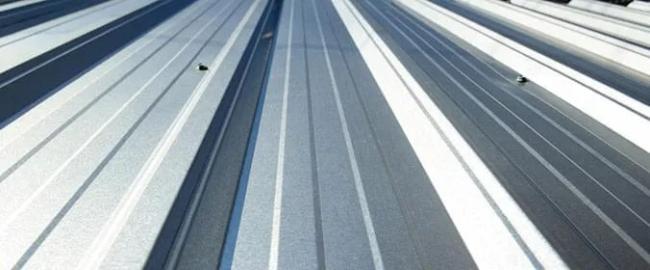

The alloy-coated product contains 55% aluminum, 43.5% zinc and 1.5% silicon by weight. Applied by the traditional hot-dipping process, Galvalume is perfect for applications that call for high corrosion resistance and heat reflectivity. It is typically used in construction , appliances, agricultural equipment and several non-exposed automotive components.
Thanks to its shiny spangled appearance, Galvalume can be used even without a layer of paint over it. The JSW Galvalume sheet, branded JSW Vishwas+, is a unique product that is suitable for heating and ventilation applications. It has better resistance to oxidation and can withstand temperatures up to 315°C without discolouration.
Features
Smooth surface and uniform spangled appearance.
A superior anti-fingerprint coating that looks better, and lasts longer.
Surface treatment as per ROHS (Restriction On Hazardous Substance) norms
A wider thickness range with tighter tolerances to ensure precision in end applications.
High corrosion resistance and heat reflectivity
High temperature resistance and formability
Easy paint application
European Standards EN 10346:2015
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating Mass (g/square meter) |
|---|---|---|---|---|
| EN 10346 | DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S320GD, S350GD S550GD |
0.2 - 1.2 | 800 - 1,250 | AZ100 AZ150 AZ185 |
America standards ASTM A792M
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| ASTM A792M | CS(TYPE A, B, C) FS(TYPE A, B) DS DDS SS GRADE 33(230) 37(255) 40(275) 50(340) CLASS 1~3 80(550) CLASS 1~3 |
0.2 - 1.2 | 800 - 1,250 | AZM100 AZM110 AZM120 AZM150 AZM165 AZM180 |
Japanese Standard JIS G 3321
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating(g/square meter) |
|---|---|---|---|---|
| JIS G 3321 | SGLCC SGLCD SGLCDD SGLC400 SGLC440 SGLC490 SGLC570 |
0.2 - 1.2 | 800 - 1,250 | Z06(60) Z08(80) Z10(100) Z12(120) Z14(140) Z18(180) Z20(200) Z22(220) Z25(250) Z27(270) |
Australian Standard AS1397
| Standards | Steel grade | Thickness(mm) | Width(mm) | Coating |
|---|---|---|---|---|
| AS1397 | G1~G3 G250 G300 G350 G450 G500 G550 |
0.2 - 1.2 | 800 - 1,250 | AZ150 AZ200 |
