Big Spangle Galvanized Steel Sheet and Coils Zinc 120g Unoiled Chromated JIS G3302 SGCC

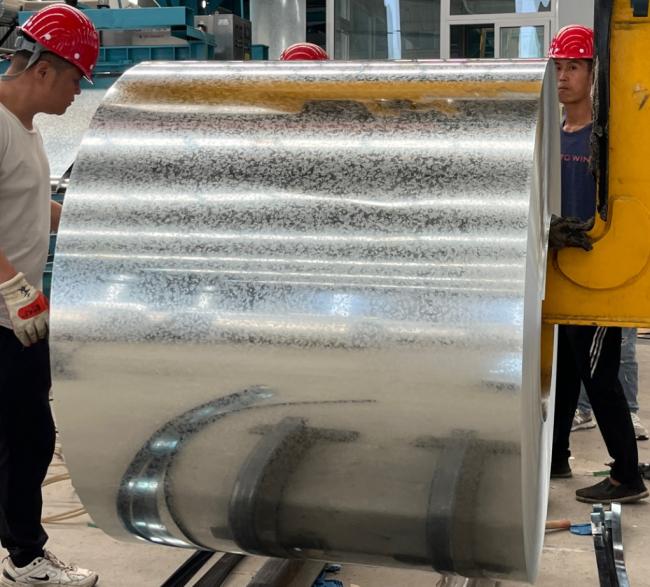

Big Bright Spangle Galvanized Steel Sheet in Coils

Galvanised steel coils are thin steel sheets that are dipped into molten zinc in order to attach a layer of zinc to the surface. This is an effective method of corrosion protection that extends the life of the metal material.

Main characteristics of galvanised steel

Corrosion protection: 13 years for heavy industrial areas, 50 years for marine, 104 years for suburban areas and 30 years for urban areas.

Pangang galvanised steel plate grade marking, code description

Surface structure: smooth: G; normal zinc flower: Z; small zinc flower: X; no zinc flower: W; fingerprint resistance: N

Surface treatment: SiO2 passivation: F1; oiling: Y

Surface Quality: Higher Grade Surface: FB; Higher Grade Surface: FC

1, non-passivated material examples

Example: DX53D＋Z/120/W/Y 0.8*1100*C

Note: For deep drawing/normal plating/zinc layer double-sided weight of 120g/m2/no zinc flower/non-passivated oiling

2,Environmental protection passivation material examples

Example: DX51D＋Z/180/W/FB/F1/Y 0.6*1100*C

Note: For general stamping / normal plating / zinc layer double-sided weight of 180g/m2 / no zinc flowers / higher grade surface / SiO2 passivation / oiling

Hardness: soft (normal), hard, full hard

Zinc coating: 30-275 G /M², or on request

Zinc pattern: large zinc pattern, small zinc pattern, no zinc pattern

Surface finish: fingerprint resistant, chromate, oiled, unoiled

Spangle Situation

Regular Spangle

A regular bright pattern produced on hot-dip galvanised steel sheets by adding certain heavy elements to the molten zinc bath.
