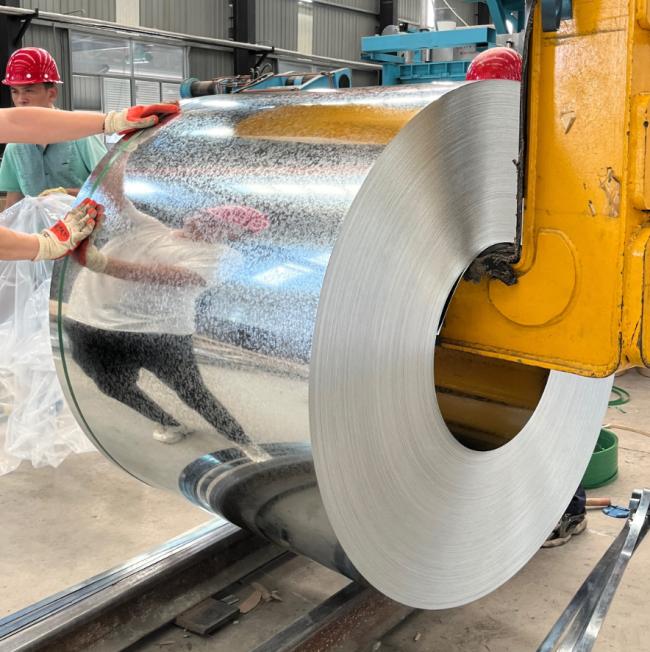

G90 Galvanized Steel Coils ASTM A653M EN10143 Roofing Steel Coil

Spangle Galvanized Steel Coils G90=Z275g ASTM A653M/ JIS G3302 SGCC / EN10143 Top Quality

Main characteristics of galvanised steel

Corrosion protection: 13 years for heavy industrial areas, 50 years for marine, 104 years for suburban areas and 30 years for urban areas.

Inexpensive: Hot dip galvanising costs less than other coatings.

Reliable: The zinc coating is metallurgically bonded to the steel and forms part of the steel surface, making the coating more durable.

Toughness: the galvanised steel layer forms a special metallurgical structure that can withstand mechanical damage during transport and use.

Comprehensive protection: every part of the coating can be galvanised and is fully protected even in depressions, sharp corners and hidden areas.

Saving time and effort: the galvanising process is faster than other coating methods.

TOP QUALITY GALVANIZED STEEL COILS CASES

Pangang galvanised steel plate grade marking, code description

Surface structure: smooth: G; normal zinc flower: Z; small zinc flower: X; no zinc flower: W; fingerprint resistance: N

Surface treatment: SiO2 passivation: F1; oiling: Y

Surface Quality: Higher Grade Surface: FB; Higher Grade Surface: FC

1, non-passivated material examples

Example: DX53D＋Z/120/W/Y 0.8*1100*C

Note: For deep drawing/normal plating/zinc layer double-sided weight of 120g/m2/no zinc flower/non-passivated oiling

2,Environmental protection passivation material examples

Example: DX51D＋Z/180/W/FB/F1/Y 0.6*1100*C

Note: For general stamping / normal plating / zinc layer double-sided weight of 180g/m2 / no zinc flowers / higher grade surface / SiO2 passivation / oiling

Hardness: soft (normal), hard, full hard

Zinc coating: 30-275 G /M², or on request

Zinc pattern: large zinc pattern, small zinc pattern, no zinc pattern

Surface finish: fingerprint resistant, chromate, oiled, unoiled

Spangle Situation

Regular Spangle

A regular bright pattern produced on hot-dip galvanised steel sheets by adding certain heavy elements to the molten zinc bath.
