AFP Galvalume Coil Stock JIS G3302-SGCC 0.9mm*1000mm AZ60
AFP (anti-finger print) Galvalume Steel Sheet in Coil JIS G3302-SGCC 0.90mm* 1000mm AZ60
The coating consists of 55% aluminum, 43.5% zinc, and 1.5% silicon in weight ratio, respectively. The production process of aluminum zinc steel sheet is similar to that of galvanized steel plate and aluminum plated plate, and it is a continuous melting coating process. 55% aluminum zinc alloy coated aluminum zinc steel plate has superior corrosion resistance compared to galvanized steel plate of the same thickness when exposed to the same environment on both sides. 55% aluminum zinc alloy coated aluminum zinc steel ( 55% Alu-zinc Steel) plate not only has good corrosion resistance, but also color coated products have excellent adhesion and flexibility.
1.Structure of Aluzinc Steel Coil Description:
Hot-dip aluzinc steel sheet is substrated on cold rolled steel(CRC) in various strength and specification. Coating composition is 55% aluminium in weight ratio, 43.4% zinc, and 1.5% silicon, with excellent corrosion and heat resistance performance. It is especially useful for countless outdoor and industrial applications.
2.Main Features of the Galvanized Steel Coil:
• Base material for countless outdoor and industrial applications
• Excellent corrosion resistance
• Excellent heat resistance performance
• High strength
• Good formability
• Rust- proof ability
• Good visual effect

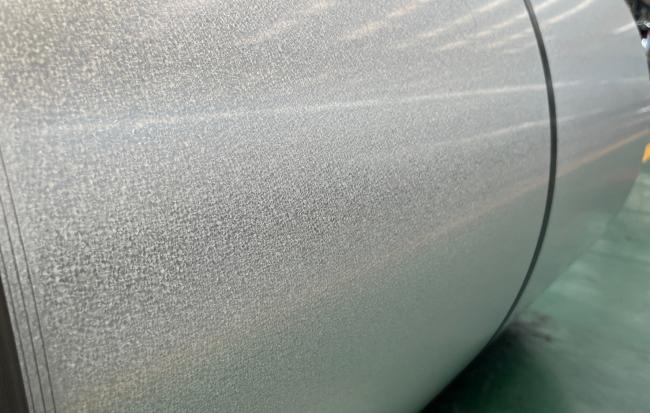

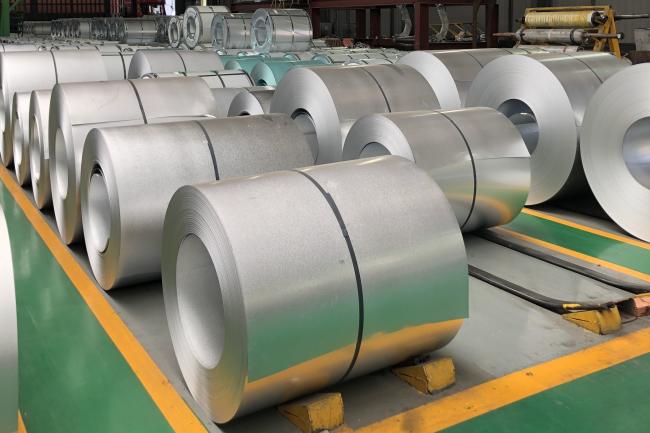

3. Aluzinc Steel Coil Images
4.Aluzinc Steel Coil Specification
Thickness: 0.3-0.7mm
Width: 914-1250mm
Inner Diameter: 508-610mm
Weight of Steel Coil: 3-15MT
Coating Type: Al-Zn Alloy
Available Dipped Layer: 50-150g/m2
Surface Finish Structure: Normal Spangle & Small Spangle & Zero Spangle
Available Surface Treatment: Passivating & Oiling & AFP & Filming
| Thickness | 0.12- 2.5MM |
| Width | 600 - 1250MM |
| Length | As require |
| Zinc Coating | Z30 - 150g/㎡ |
| ID of Coil | 508/610MM |
| Surface Structure | Regular spangle,Minimum spangle, Zero spangle, Big spangle |
| Color | Blue,Green,Golden,Yellow |
| HRB | Soft Hard (＜60),Medium Hard (60-85), Full Hard (85-95) |
| Surface Treatment | Oiled (O), Chromium (C),Phosphating (P), Spinpass Resistant to Fingerprints(AFP) |
| Standard Seaworthy Export Packing | Dust-proof kraft sheet, iron packing, Angle protective, packing belt |
| Mechanical properties of galvanized steel | |||
| Usage | Grade | Yield strength(MPa) | Tensile strength(MPa) |
| Punching galvnaized steel | DC51D+Z | - | 270-500 |
| DC52D+Z | 140-300 | 270-420 | |
| DC53D+Z | 140-260 | 270-380 | |
| Structure galvanized steel | S280GD+Z | ≥280 | ≥360 |
| S350GD+Z | ≥350 | ≥420 | |
| S550GD+Z | ≥550 | ≥560 | |
