85g/M2 Aluzinc Steel Coils Minimum Spangle Galvanized Steel GB/T 2518-2008
GL AFP Steel Coil or Sheet GB/T 2518-2008 1.0mm* 1000mm AZ85 minimum Spangle
Oiled Galvanized Steel Coil or Sheet GB/T 2518-2008 DX54D+AZ 1.0mm* 1000mm AZ85
Product: Galvanized Steel Coil or Sheet
Standards: Euro standards (DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ), America standards: ASTM A 792 (CS-B, SS33, SS37, SS40)
Key Specifications:
Thickness: 0.12-1.2mm
Width: 750-1250mm
Zinc Coating: AZ40-AZ150g/m2
Alloy Or not: is alloy
Material: cold-rolled
Color: silver or customized
Surface: coated, composited, embossed, holographic impression, printed
Packaging:
Standard seaworthy export packing, other types of packing can be customized as every requirements
Shipping packaging:
Bundled with firm steel straps, easy for loading and unloading
Standards: Euro standards (DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ)
America standards: ASTM A 792 (CS-B, SS33, SS37, SS40)
Key Specifications:
Thickness: 0.12-1.2mm
Width: 750-1250mm
Coating: AZ40-AZ150g/m2
Color: silver or customized
Surface: coated, composited, embossed, holographic impression, printed
Packaging:
Standard seaworthy export packing, other types of packing can be customized as every requirements
Shipping packaging:
Bundled with firm steel straps, easy for loading and unloading
Shipping information:
FOB Port: Tianjin or Qingdao of China
Payment Detains: T/T
Application and Usage:
Construction
plant, warehouse, handrail, new Stall, rolling Door, roof, brige, elevator
Electric appliance
Refrigerator, switch cubicle, air conditioner and bread maker, house furnishings
Transportation
Auto (car), tractor, highway fence, ship board, container, railway, vessel
1.Structure of Aluzinc Steel Coil Description:
Hot-dip aluzinc steel sheet is substrated on cold rolled steel(CRC) in various strength and specification. Coating composition is 55% aluminium in weight ratio, 43.4% zinc, and 1.5% silicon, with excellent corrosion and heat resistance performance. It is especially useful for countless outdoor and industrial applications.
2.Main Features of the Galvanized Steel Coil:
• Base material for countless outdoor and industrial applications
• Excellent corrosion resistance
• Excellent heat resistance performance
• High strength
• Good formability
• Rust- proof ability
• Good visual effect

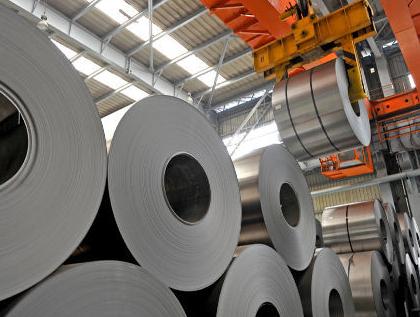

3. Aluzinc Steel Coil Images
4.Aluzinc Steel Coil Specification
Thickness: 0.3-0.7mm
Width: 914-1250mm
Inner Diameter: 508-610mm
Weight of Steel Coil: 3-15MT
Coating Type: Al-Zn Alloy
Available Dipped Layer: 50-150g/m2
Surface Finish Structure: Normal Spangle & Small Spangle & Zero Spangle
Available Surface Treatment: Passivating & Oiling & AFP & Filming
| Thickness | 0.12- 2.5MM |
| Width | 600 - 1250MM |
| Length | As require |
| Zinc Coating | Z30 - 150g/㎡ |
| ID of Coil | 508/610MM |
| Surface Structure | Regular spangle,Minimum spangle, Zero spangle, Big spangle |
| Color | Blue,Green,Golden,Yellow |
| HRB | Soft Hard (＜60),Medium Hard (60-85), Full Hard (85-95) |
| Surface Treatment | Oiled (O), Chromium (C),Phosphating (P), Spinpass Resistant to Fingerprints(AFP) |
| Standard Seaworthy Export Packing | Dust-proof kraft sheet, iron packing, Angle protective, packing belt |
| Mechanical properties of galvanized steel | |||
| Usage | Grade | Yield strength(MPa) | Tensile strength(MPa) |
| Punching galvnaized steel | DC51D+Z | - | 270-500 |
| DC52D+Z | 140-300 | 270-420 | |
| DC53D+Z | 140-260 | 270-380 | |
| Structure galvanized steel | S280GD+Z | ≥280 | ≥360 |
| S350GD+Z | ≥350 | ≥420 | |
| S550GD+Z | ≥550 | ≥560 | |
