Slit Galvanized Steel Strips Aluzinc Steel Coil Chromated Unoiled AFP Treatment
Price:
850 USD/MT
MOQ:
25 MT
Delivery Time:
30-40 DAYS
Product Description
G550/SGC570 Galvalume Slit Steel Coil 0.95*168 AZ150 Aluzinc Steel Coil Chromated Unoiled AFP Treatment
What is aluminium-zinc plated sheet
Aluminium-zinc plated sheet is a steel plate plating on the basis of zinc with the addition of aluminium (passivation protection), the general composition of 55% aluminium, 43.5% zinc, 1.5% silicon, with excellent resistance to atmospheric corrosion, corrosion resistance of galvanized sheet 2-5 times, but also has the high temperature corrosion resistance of aluminium plate, smooth surface, good appearance, but the formation of its plating and resistance to welding a little worse. In foreign countries generally about 40% of aluminium zinc plating used directly, about 60% of the plate is further as a colour coated substrate.
Uses: building roofs, walls, electrical cabinets, home appliances, automobiles, colour coated substrates, etc.
Coating content classification
-
55% alu-zinc steel plate: the coating consists of 55% aluminium, 43.4% zinc and 1.6% silicon, the corrosion resistance is 2-6 times of galvanised sheet, characterised by high-temperature corrosion resistance, smooth surface, good appearance, but the plating of the molding and weldability is slightly worse.
-
5% aluminium-zinc steel plate: plated with 5% aluminium, 0.1% mixed rare earth elements, the rest is zinc, corrosion resistance is galvanised sheet 2-3 times, characterized by the plating of the formation is very good, with good coating and welding performance, but the surface is not as bright as high alumina steel plate, fine, so rarely used bare.
Index |

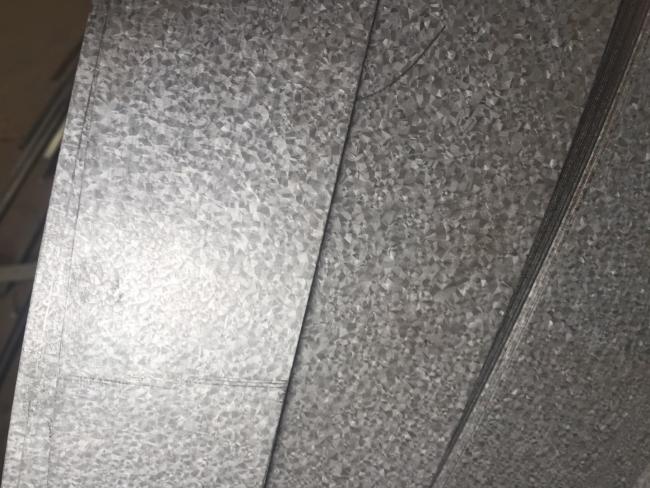

Regular spangle / Minimum SpangleGalvalume/ 55% Aluzinc Steel Coil/Sheets |
Thickness |
0.13-2.0mm |
Width |
600~1500mm |
Zinc Coating |
AZ30~AZ200 g/㎡ |
Surface Treatment |
AFP (anti-finger print)Passivated / Chromated 6+,3+, Free; Oiled; Skin-passed |
Steel Grade |
DX51D/52D/53D/S250GD/280GD/350GD/550GDASTM A792M, CS-B, SS255-SS550JIS G3302-SGCC, SGCH (Full hard-G550) |
Coil I.D. |
508 / 610 mm |
Coil weight |
2 ~ 20 tons |
Packaging |
Standard export packing ( Eye to Side)Vertical Packing ( Eye to Sky) with wooden palletHorizontal Packing ( Eye to Side) with wooden pallet |
MOQ. |
16 tons |
Loading port |
Tianjin / Qingdao / Rizhao port |
SURFACE TREATMENT |
DESCRIPTION OF USE |
CHROMATE PASSIVATION(C) |
Surface treatment for high-strength steel plates after hot-dip plating to reduce white rust during transport and storage |
Chrome-free passivation(C5) |
Surface treatments that require limiting the amount of hexavalent chromium, etc. in passivation solutions that are harmful to the environment and humans |
Anti-finger print(N) |
Surface treatment after the passivation process, which acts as a lubricant during processing, prevents fingerprints from staining during operation, and prevents premature blackening of the surface during use. |
Chrome-free and fingerprint resistant(N5) |
Surface treatment after the passivation process, in the process of lubrication, to prevent the operation of the fingerprint staining, to prevent the use of the surface of the process of premature blackening, and at the same time, the requirement to limit the fingerprint-resistant film harmful to the environment and human body, such as hexavalent chromium content |
Oiled(O) |
Surface treatment added after the passivation process to further reduce rusting during long-distance transport and long-term storage |
Index |

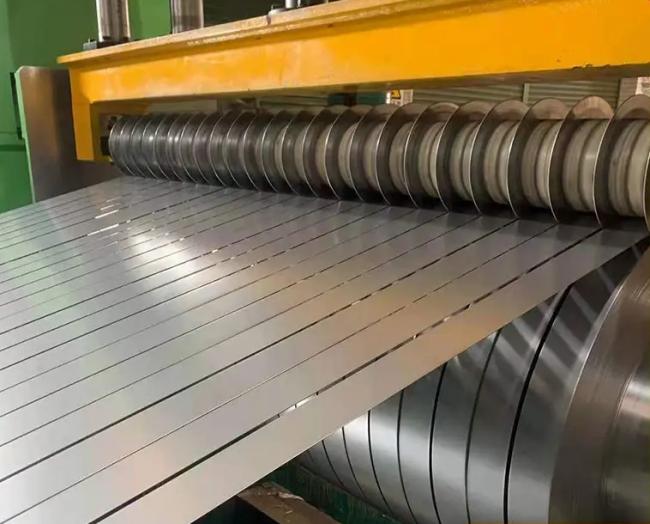

Strips & Slitting Steel Coils |
Available Products |
Galvanized, Galvalume, Aluzinc, Pre-Painted Steel Coils |
Thickness |
0.13-2.0mm |
Width |
20~1250mm |
Steel Grade |
DX51D/52D/53D/S250GD/280GD/350GD/550GDASTM A792M, CS-B, SS255-SS550JIS G3302-SGCC, SGCH (Full hard-G550) |
Coil I.D. |
508 / 610 mm |
Coil weight |
1.5tons ~ 10 tons |
Packaging |
Standard export packing ( Eye to Side)Vertical Packing ( Eye to Sky) with wooden palletHorizontal Packing ( Eye to Side) with wooden pallet |
MOQ. |
16 tons |
Loading port |
Tianjin / Qingdao / Rizhao port |
DECHO building colour steel plate can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.
Reasons for choosing Decho Building Materials new material:
-
Provide extremely rich colour choices
-
The paint surface is long-lasting and bright
-
Surface coating will not fall off after stamping and has good hardness with strong ductility and is not easy to scratch.
-
with excellent weather resistance, corrosion resistance, is to ensure the durability of the premise of the building
-
DECHO BUILDING MATERIALS for the manufacturer direct sales
-
The colour is customized by customers;
-
Thickness and width have a variety of options;
-
We provide whole rolls and cut boards for sale;
Welcome to enquire.
