Product Description
Building industry ,structural roofing Color Coated PPGI/PPGL/Ppal/Gi/Gl/Sheet/Coil/Plate/Panel Strip/Roll AZ coating

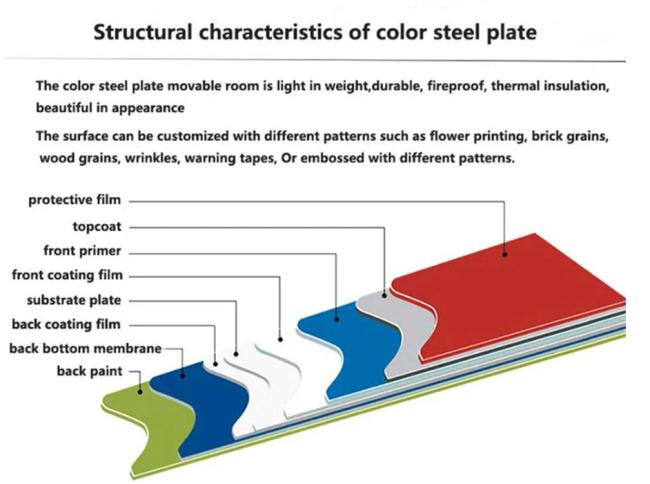

Color-coated coils are products made from hot-dip galvanized steel sheet, hot-dip aluminized steel sheet or electrolytically galvanized steel sheet as the base material, which, after surface pretreatment (degreasing and conversion treatment), is coated with one or more layers of colored coating and baked and cured. It is also available in various steel sheet coils painted in different colors, called color-coated coils.
Classification
According to the substrate: cold rolled substrate, hot-dip galvanized substrate, electro-galvanized substrate, aluminum zinc plated substrate, etc.
According to the type of coating: polyester, silicone-modified polyester, vinylidene fluoride (fluorocarbon), plastisol.
According to the color: it can be divided into many kinds according to the user's requirements, such as white-gray, scarlet, sea-orchid, porcelain-orchid, withered-yellow, ivory-white, deep-bean-green, sky-orchid, ivory-white and so on.
According to the surface state: coated board, embossed board, printed board, etc.
Product features
(1) Longer service life than galvanized sheet metal;
(2) Good heat resistance than galvanized steel at high temperatures; not easy to change color;
(3) Good heat reflection;
(4) Processing and coating properties similar to hot-dip galvanized steel; (5) Good welding properties.
(5) Good welding performance.
(6) Excellent economy, performance and competitive price. As a result, architects, engineers and manufacturers widely use zinc-aluminum coated steel sheets in industrial buildings, steel structures and civil engineering equipment, including garage doors, gutters and roofs.
Product Description
| Name | PPGI steel coil | |
| Type of substrate |
Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled steel, Aluminum |
|
| Thickness | 0.125-2mm | |
| Tolerance | Thickness: ± 0.01mm | |
| Width | 600-1250mm ( Normal:1250, 1200,1000,914 mm) | |
| Top Paint | 10-25 micron(Normal:10-12mic) | |
| Back paint | 5-12 micron(Normal:5-7mic) | |
| Coating | Zn coating | AZ coating |
| 30-400gsm | 30-400gsm | |
| Coil weight | 3-5 tons or as your requirement. | |
| Coil ID | 508/610 mm | |
| Grade | Galvanized | Galvalume |
| SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH....... |
DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ,SGLCC,SGLCD,SGLC4 40,SGLHC........ |
|
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU | |
| Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance |
||
| Primer paint: Polyurethane, Epoxy, PE | ||
| Functions:Machinability, Corrosive resistance, Adhesion, Scrath resistance |
||
| Back paint: Epoxy, Modified polyester | ||
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance | ||
| Type of coating process |
Front: Doulbe coated & double drying | |
| Back: Double coated & double drying, single coated & double drying | ||
| Double coated & double drying is used for corrugated sheet | ||
| Double coated & single drying is for sandwich panel | ||
| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet. |
|
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings |
|
| Structural Grades | C | Mn | P | S | Al | Si | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30,33,36,40 | 0.25 | 0.9 | 0.035 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| 36T2,45-80 | 0.25 | 1.35 | 0.035 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
| 45T2 | .02- 0.08 | .30- 1.0 | .03- .07 | 0.025 | .02- .08 | 0.6 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | .01- .03 |
| HSLA Grades | C | Mn | P | S | Al | Si | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45C1 | 0.22 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 45C2 | 0.15 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 50C1 | 0.23 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 50C2 & 55C2 | 0.15 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 55C1 | 0.25 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 60C1 & 65C1 | 0.26 | 1.5 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 60C2 & 65C2 | 0.15 | 1.5 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
| 70C1 | 0.26 | 1.65 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.16 | 0.005 | 0.005 | 0.005 | |||
| 70C2 | 0.15 | 1.65 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.16 | 0.005 | 0.005 | 0.005 |
