Marble Pattern AA3003 3105 Aluminum Architectural Facades PVDF AkzoNobel Color Coated Coils
1. Introduction:

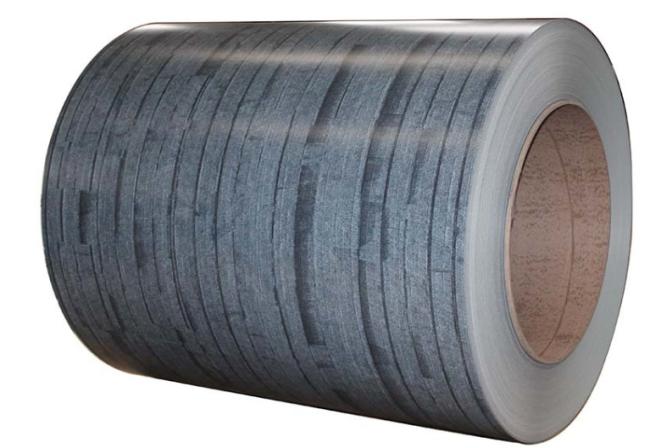

Printed Color Coated Steel and Aluminum Coil
Printed color coated plates offer decorative effects such as wood grain, brick grain, camouflage, and marble.
The printing process for color coated coils typically involves gravure printing. This method uses steel rollers laser-engraved with desired patterns to transfer ink onto the surface of the steel plate.
Initially, the substrate undergoes pre-treatment including degreasing, cleaning, and passivation. After this, a layer of matching color primer is applied to the steel plate surface. Depending on the application, primers may include polyester, polyurethane, and other coatings. After drying and curing the primer, ink is applied through printing. Printing complexity ranges from single color to multi-color patterns. Once the ink is dried and cured, a varnish coating follows, which can be polyester, High Durable Polyester (HDP), fluorocarbon PVDF, or other types.
For higher printing quality requirements, such as fluorocarbon printed color coated panels, a three-coating and three-baking process is used. This involves applying a polyurethane primer, followed by a layer of matching fluorocarbon topcoat, ink printing, and finally a coat of fluorocarbon varnish. The entire production process for printed color coated panels includes cooling, coiling, and shearing after drying and solidification of the coatings.

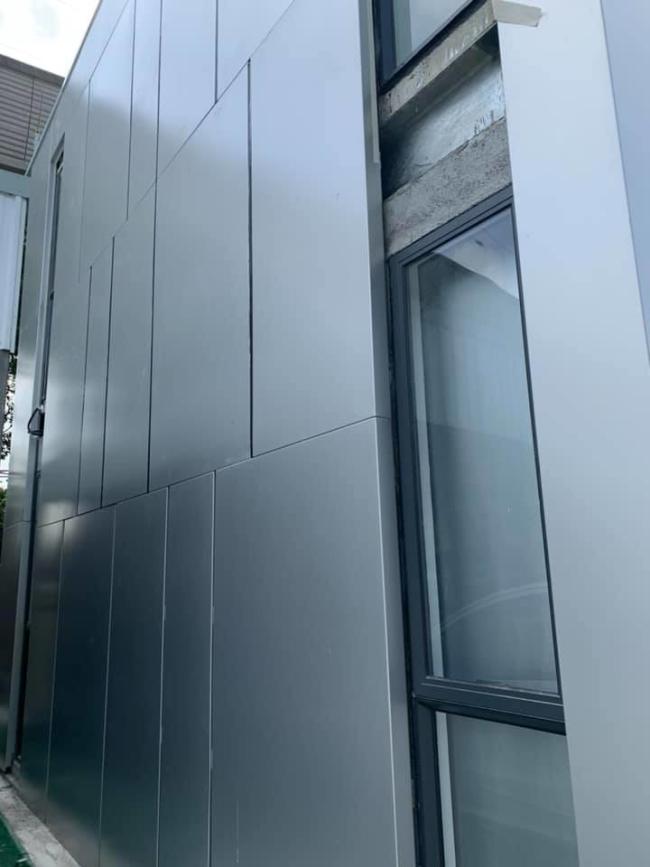

2. Why Choose Printed Color Aluminum Panels for Exterior Wall Decoration?
Using printed color aluminum panels for exterior wall decoration offers several advantages, making them a preferred choice for modern architecture. The reasons include:
1. Aesthetic Versatility:
2. Durability and Weather Resistance:
3. Lightweight and Easy to Install:
4. Corrosion Resistance:
5. Eco-Friendly and Recyclable:
6. Low Maintenance:
7. Fire Resistance:
Conclusion
Printed color aluminum panels combine aesthetic appeal with practical benefits, including durability, lightweight construction, corrosion resistance, and ease of maintenance. Their versatility and long-lasting performance make them an ideal choice for exterior wall decoration, especially in modern architecture where design flexibility and sustainability are essential.
|
Parameter |
Specification Range |
|---|---|
|
Alloy Series |
1000, 3000, 5000, 6000 series |
|
Alloy Grades |
1050, 1100, 3003, 3105, 5005, 5052, 6061 |
|
Temper |
H14, H24, H16, H26, H18, H28 |
|
Thickness |
0.2mm - 1.5mm |
|
Width |
800mm - 1600mm |
|
Coil Weight |
2.5 tons - 3.0 tons |
|
Coil Diameter |
Inner: 150mm, 405mm, 505mm; Outer: 1200mm |
|
Coating Type |
PE (Polyester), PVDF (Polyvinylidene Fluoride), SMP (Silicone Modified Polyester) |
|
Coating Thickness |
Top: 15-30 microns; Back: 5-20 microns |
|
Color |
RAL Colors, Custom Colors |
|
Surface Treatment |
Mill Finish, Anodized, Brushed, Embossed |
|
Protective Film |
With or without protective film |
|
Standard |
ASTM, EN, JIS |
|
Gloss |
20%-80% |
|
Surface Quality |
Smooth, no visible defects |
|
Corrosion Resistance |
Excellent (particularly in marine and industrial environments) |
|
Thermal Reflectivity |
High |
|
Environmental Impact |
100% Recyclable |
|
Applications |
Construction, Automotive, Aerospace, Household Appliances, Packaging |
Paint Suppliers & Partners:

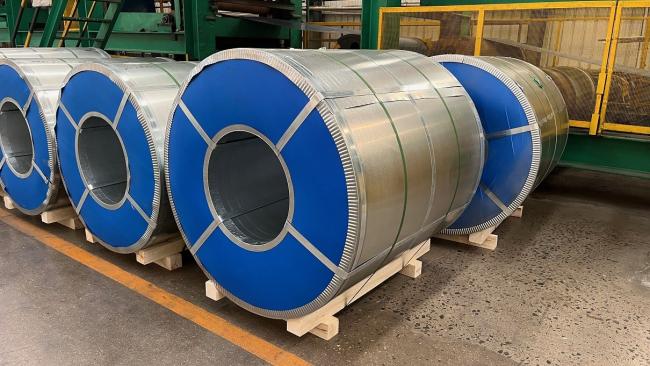

Export Package
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
