Metal garage steel roller shutter door profile roll forming machine
Price:
Negotiable
MOQ:
10 set
Delivery Time:
10-15 working days
Brand:
WADJAY
Product Description
Metal stud and track garage steel roller shutter door profile roll forming machine
Product Description
Tile Type:Colored Glaze Steel
Feeding width:1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Core Components:Motor, Engine, PLC
Control system:totally automatic PLC control system
Roll stations:18 rows
Shaft material:45# high grade steel
Cutting system:automatic hydyaulic cutting
Kind of drive:chain system drive
Frame material:300 H-high grade steel
Cutting blade material:Cr 12 high grade steel
Applicable Industries:Manufacturing Plant, Construction works
| Roller Shutter Door Roll Forming Machine | ||
| 1.Raw material | Thickness | 0.8-1.2mm |
| 2.Decoiler | Operation | automatic |
| Weight apacity | 2-5t | |
| 3.Main body | Roller station | 10-15 rows |
| Diameter of shaft | 65-80mm | |
| Material of rollers | 45# steel | |
| Material of shaft | 45# steel | |
| Frame | 16-18mm | |
| Chain | 1.32-1.97inch | |
| 4.Cutter | Operate | auto |
| Blade Material | cr12mov | |
| 5. Power | Voltage | customized |
| Power | 4-7.5kw | |
| 6.Control system | Electric Box | customized/Delta |
| Language | english chinese/customzied | |
| 7.Forming Speed | Forming Speed | 20-35m/min |

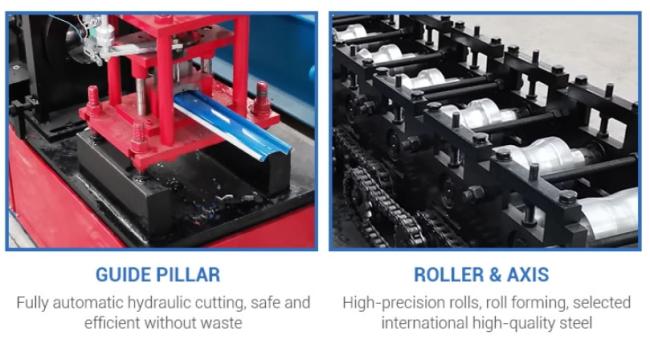

Detailed Images
