Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
Price:
Negotiable
MOQ:
1 set
Delivery Time:
15 working days
Brand:
wadley
Product Description

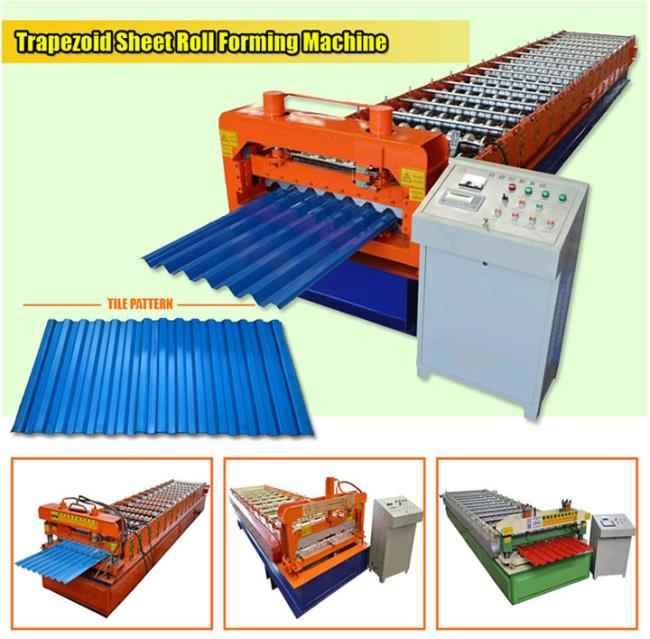

Hydraulic Pressure Corrugated Roof Tile Manufacturing Roll Making Forming Machine
The tile pressing machine is a machine consisting of discharging, forming and post-forming cutting. Its color plate has a flat appearance, uniform paint, high strength and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, stadiums, Exhibition halls, theaters and other rooms and walls.
Technical Parameters:
| No. | Item | Specification |
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-0.8mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 6000mmx1600mmx1400mm |
| 8 | Speed | 12-15m/min |
| 9 | Diameter of shaft | 75mm |
| 10 | Weight of the Machine | 5500-6500KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 9.5kw |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 5.5kw |
