Metal Machining Center Corrugated Tile Sheet Making Roll Forming Machine
Metal corrugated roof tile sheet making roll forming machine
Glazed tile making machine, is used to produce glazed tile.

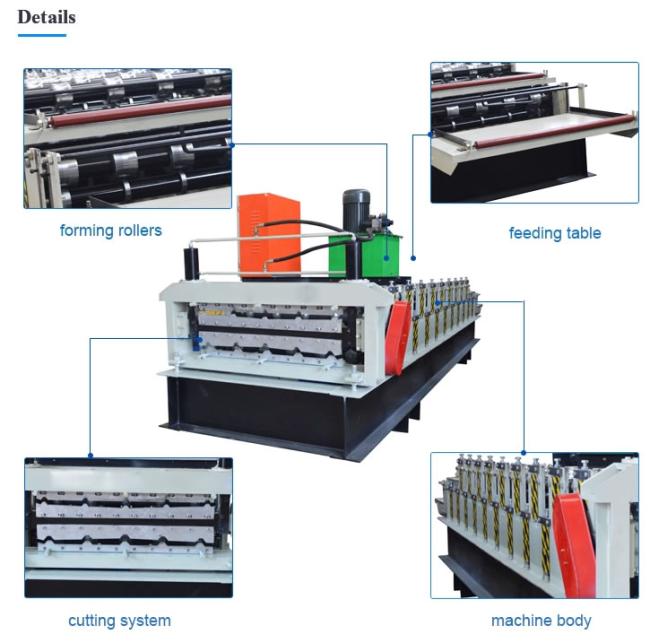

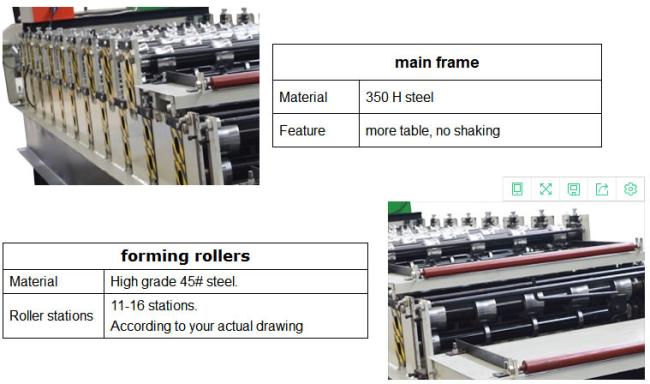

Machine components: glazed tile glazed tile making machine from the external structure to see by the loading frame, loading frame support, feed guide device, forming host, punching device, forming shear device, hydraulic station, computer control cabinet and other components.
Applicable Industries:Building Material Shops, Manufacturing Plant, Construction works
| Name | Double Layer Roof Automatic Tile Roll Making Forming Machine |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | 914, 1000, 1220 or 1250 mm. According to your actual drawing. |
| Electric Power | 380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 7.2*1.3*1.1m(L*W*H), as per the drawing |

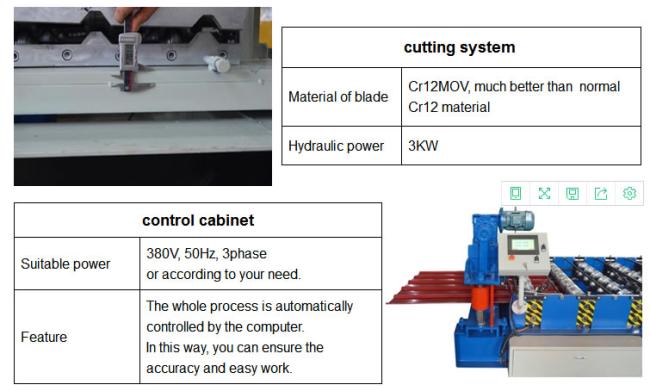

| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet | You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |

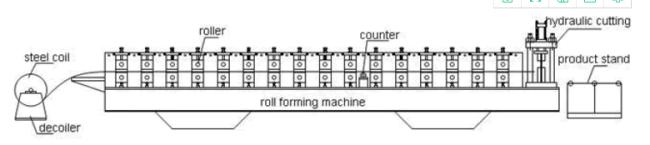

Working Flow

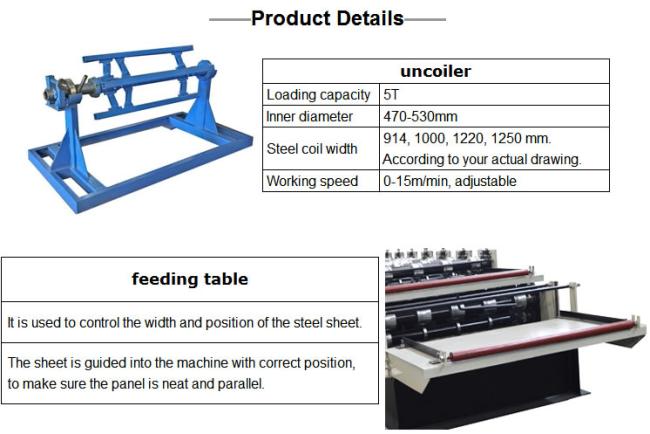

Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
