380V / 220V Steel Tile Roll Forming Machine 300 H Steel Welded Machine Frame
Flat Steel Corrugated Roll Forming Steel Tile Panel Cold Roof Roll Forming Machine
Brief description:
The ridge tile pressing machine adopts the tensioning material frame. The forming machine adopts hydraulic forming shears, hydraulic station and PLC computer control cabinet. The process flow: Uncoil → feeding → roll forming → punching the radge shape, CNC system uses computer motherboard and relay, frequency converter, production efficiency can reach 5-8m / min, and the yield is high.Color steel roof ridge tiles are new building materials, rich in color, classical and elegant, to add a finishing touch to your architecture. The utility model has the advantages of light weight, high strength, good waterproofness, convenient installation and quickness, and can be widely applied to roofs of villa roofs, urban flat slopes, and tourist scenic spots. Compared with other materials, the combination of light materials and various auxiliary materials not only has a short construction period, but also has a simple construction method and can maintain the aesthetic appearance of the roof without editing. The arc-shaped color steel roof tile is more perfect on the basis of the handmade ridge tile, and is a better partner of the color steel glazed tile or the color steel.
The machine electric control system:
A. Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime.
B. Voltage: 380V 50 HZ 3 PHASE (As customer's need)
C. Language: English and Chinese
D. Automatic length measurement
E. Automatic quantity measurement
F. Length Tolerance: 3 m±1.5 mm
G. Length inaccuracy can be amended easily.
H. Unit of length: millimeter (switched on the control panel)
I. Computer operating panel: touching screen and button together.

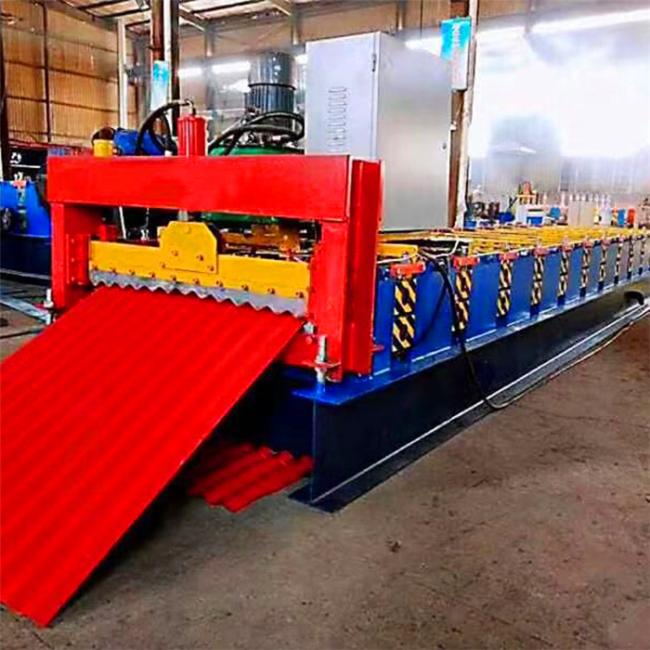

Popular use corrugated steel roofing sheet roll forming machine for wall and roof of house
--- The sheet produced by this machine is used for roof or wall.
--- Customer can choose hydraulic drive or motor drive method, the different is working speed.
--- Machine frame is high grade strength steel.
--- We also provide different brand electric parts for customer.
| NO. | Items | parameters | Remark | |
| 1 | Suitable Material | type | GI/PPGI/AL | |
| Width | 1000mm | Custom | ||
| Thickness | 0.3-1.0mm | |||
| 2 | Product specifications | lengh | any lengh | |
| lengh tolerance | ± 2mm
| |||
| 3 | Working Speed | 8m-25m/min | Standard machine | |
| 4 | Control System | PLC | Custom | |
| 5 | Total Power | 5.5-11 KW | ||
| 6 | Total Weight | About 5-7.5 T | Up to final design | |
Q1. How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3. Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4. What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5. Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6. Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
