WADLEY Galvanized Stainless Steel Glazed Roof Tile Making Machine Roofing Sheet Roll Forming Machine
Price:
Negotiable
MOQ:
1
Delivery Time:
28days
Brand:
wadley
Product Description
Metal roofing galvanized aluminum corrugated steel sheet making machine colored steel wall roof panel cold roll forming
| Name | Colored steel galvanized glazed roof tile roll forming making machine factory |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | 914, 1000, 1220 or 1250 mm. According to your actual drawing. |
| Electric Power | 380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 7.2*1.3*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet | You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

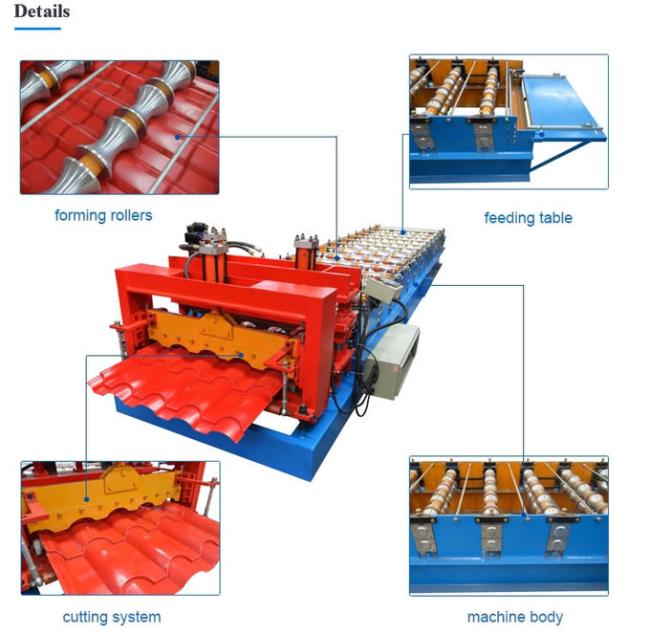

Details Show
The Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
Henan Wadley Machinery Co.Ltd manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, H-BEAM Line etc.As a professional manufacturer & import of ROLL FORMING MACHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard.
Customer visite: If you intend to visite our factory~ Welcome to contact us!
