Guardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming Machine
Price:
Negotiable
MOQ:
1 set
Delivery Time:
5-8 working days
Brand:
WADJAY
Product Description
Guardrail Roll Forming Machine Highway Expressway Guard Board Crash Barrier Guardrail Cold Roll Forming Machine
Product Description
Main Specification
Manual decoiler
- Capacity: 5 ton
- Loading width: MAX 600mm
- Valid expanding range for coil inner diameter: 480-520mm
Main roll forming system
- Main motor power: 50kw
- Separate motor reducer: 750type
- Punching: Hydraulic pre-punching before forming
- Punching mould:Cr12mov
- Hydraulic power: 7.5KW
- Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated0.05mm
- Leveling rollers: 7rollers(three upper and four lower)
- Roll forming station: 16 groups
- Diameter of main shaft: 100mm
- Drive: independent gearbox with universal joint
- Raw material: Black steel & galvanized steel
- Thickness of Raw material: 2.0-4.0mm
- Width of Raw material: 488mm
- Working speed: 10m--15m/min(Exclude cutting time)
- Cutting: Hydraulic cutting after forming, Auto cutting when reach the set length.
- Cutting blade: Cr12mov
- Cutting tolerance: +/- 1.5mm
- Hydraulic pressure: 30Mpa
- Weight of machine: about 25ton
- Size of machine: About 9000×2150×1500mm L x W x H
- Color of machine: yellow and blue
- Coder: Omron
- Control: PLC Delta, made in Taiwan, 380V 50HZ, 3 phases (Also can design)
- Computer operating panel: touching screen
2. Parameters of guardrail machine :
| 1 | Model No. | Two waves highway roll forming machine |
| 2 | Max coil thickness | 3.5mm |
| 3 | Coli material | Steel or other |
| 4 | The bearing capacity of manual decoiler | 5 tons |
| 5 | shaft material | 45#steel |
| 6 | Out diameter | 100mm |
| 7 | numbers of forming steps | 20 stations |
| 8 | transmission | Differential gear transmission |
| 9 | Forming speed | 10-15m/min |
| 9 | main motor power | 45kw |
| 10 | voltage | 380V50HZ Three-phase or you need |
| 11 | dimension | 20.5*1.2*1.5m |
| 12 | cutting | Hydraulic cutting |
| 13 | Cutting power | 13.5kw |
| 14 | blade material | Cr12 steel with quenched treated 60-62°c |
| 15 | control system | PLC(Delta) |
| 16 | length tolerance | ±2mm |
| 17 | spare parts | easy emaged parts:conk 2pcs, fuse-link 4pcs rubber mat: 1 pcs bolt spanner: 1 pcs |
| 18 | The whole line including: Hydraulic decoiler, roll forming machine, cutting part PLC control system, run-out table. | |

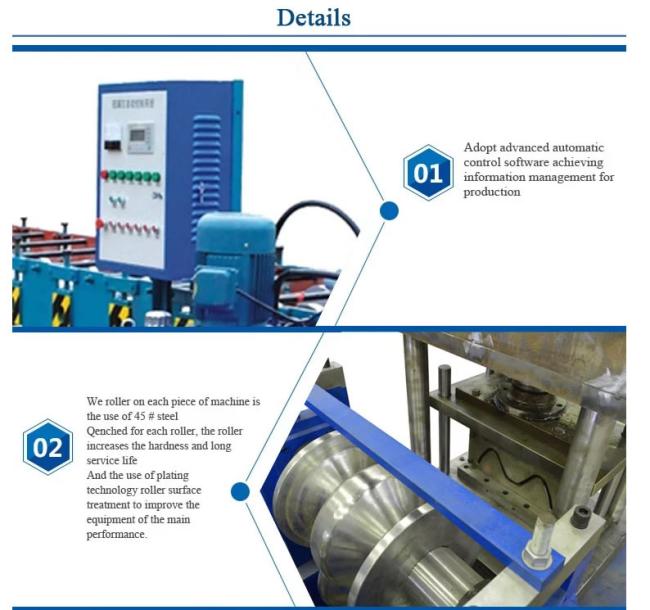

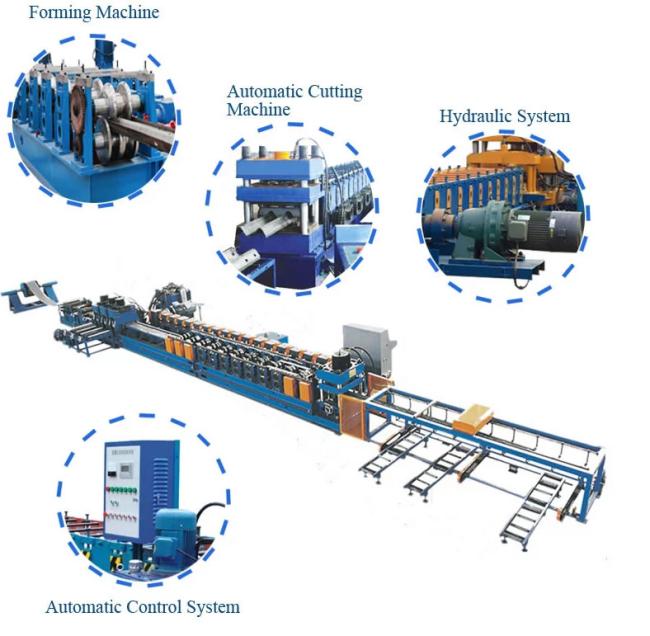

3. Components of Highway expressway guard board crash barrier guardrail cold roll forming machine :
| No. | Name | Unit | Qty |
| 1 | decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
4. Working Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
→Products receiving
