Double Layer Roof Wall Panel Roll Forming Machine
| roll forming machine specs |
| 1. Dimensions: length 6000mm × width 1400mm × height 1300mm 2. Maximum speed of molding machine: 15 meters per minute 3. Forming color steel plate thickness: 0.2-0.8mm 4. Roller shaft diameter: 70mm 5. CNC computer operation panel 6. The unit includes: forming machine, hydraulic station, discharging rack, forming shears and control box. 7. Machine weight: about 3.0 tons, 8. Transmission mode: 1 inch chain drive 9. Forming row number: 4 peak tile type 13 row 5 peak tile type 11 row 10. Power host: 3kw 11. Pump station motor: 3kw 12. Distribution: The whole machine is controlled by industrial computer PLC; 13. Equipment chassis: 300H steel; vertical plate thickness is 14mm 14. Maximum error: Since the device is fully computer controlled, the maximum length error is ±1mm; |
Roll forming machine production line:
Material feeder→Molding core→Hydraulic system→Automatic control system→Automatic shearing maechanism→Roll forming receiving tables
Roll forming machine different angle pictures
it main 2 parts, body&feeding part
body including rollers, shaft ectss..,
 |  |
Roll forming mahcine more details
| PLC: easy to opearte, for the lanuage can be customzied. Of course, PLC brand can also install it according to your requests |  |
| feeding |  |
| roller: 45#, can be OEM |  |
| hydraulic cutting prorect your coil good when cutting
|  |
| travel switch control coil length, the length can adjust according to people' requests |  |
If you want to do many different panell, we can customzied for you, 2 layer, 3 layer, 4 laeys ectss
save your factory spaces

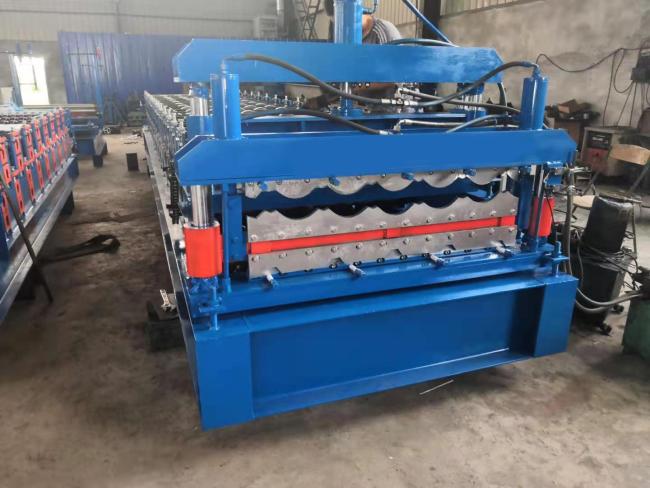

| double layer |  |

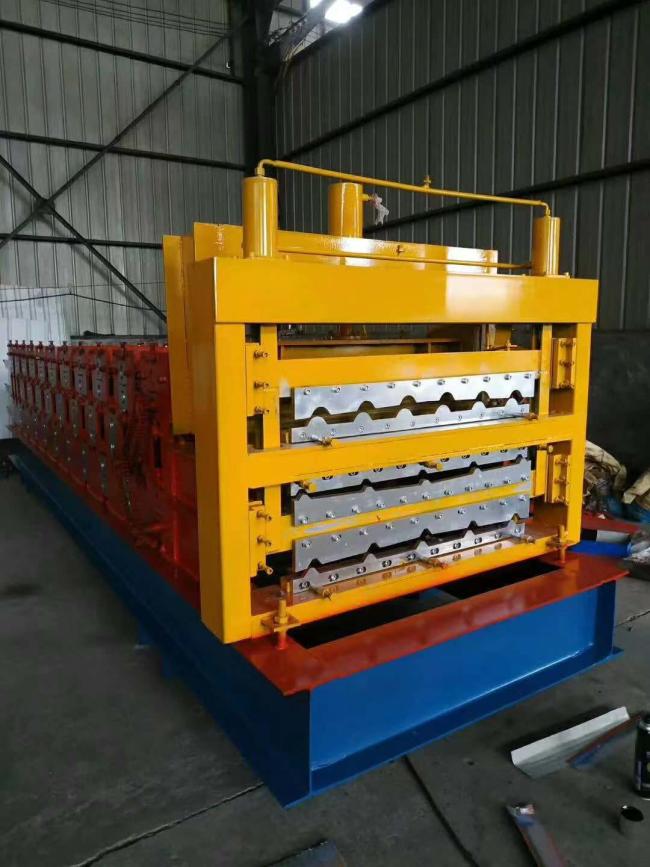

| three layer |  |
Roll forming more pictures:
all can be customzied, just send you panel layout
Popular panel
customers' feednack
 |  |
Roll forming machine
good comments
Decoiler machine
| hydraulic | manual |
 |  |
roll forming machine:
machine size is big, usually shipped by full container, 20GP, 40HQ, which is the suitable for this machine.
It can protect machine good too~~
Customers' feedback below
 |
|
