Vertical Slotting Machine B50100 for inserting planes forming surfaces and keyways
Good Quality Vertical Slotting Machine B50100 for inserting planes, forming surfaces and keyways

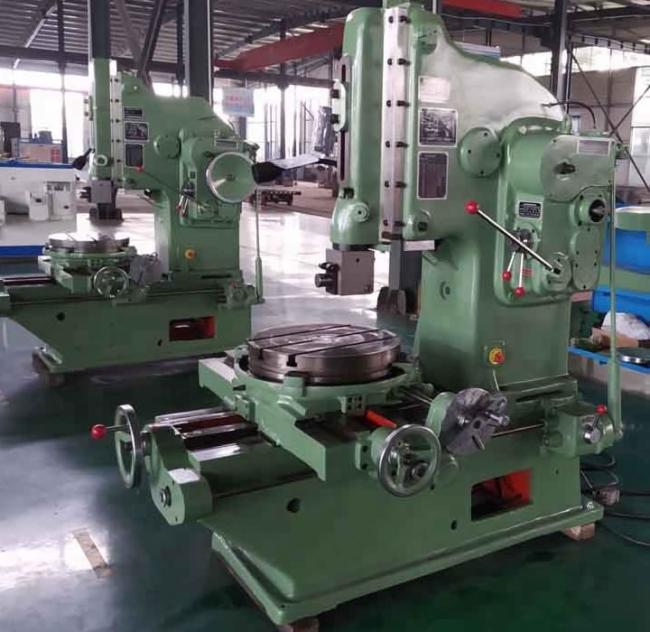

This slotting machine is designed of machining various kinds of large or medium sized machine parts.IT is used for slotting various flat surface,straight
External and internal formsurface,keyways,etc,The slotting speed may be regulated infinitely.
The machine is acconpained with an electro magnetic tool holder and a too bar.The toolholder is used for outer slotting and the tool bar for inner slotting and for slotting the keyway.
The B50100 is used for inserting flats, forming surfaces and keyways, and inserting work such as molds with a slope of 10°. It is suitable for single or small batch production. The workbench of the plunging machine has three different directions of feed (longitudinal, lateral and rotary), so that the workpiece is machined on several surfaces after a single clamping.
Slotting Machine
| Work range | B50100 |
| Max .slotting length | 1000mm(850mm for internal slotting) |
| Distance between tool holding surface and column front | 1120mm |
| Table diameter | 1250mm |
| Distance between table surface and low end of ram | 1140mm |
| Max.table traverse longitudinal cross | 1200mm 1000mm |
| Table rapid traverse speed.longitudinal or cross | 500m/min |
| Cutting stroke speed | 4-25m/min |
| Return stroke speed | 7-25mm/min |
| Max.weight of the workpiece for slotting | 4000kg |
| Max.permissible sutting force (within ram traverse speed of 10-20m/min) | 24500N |
| Range of feed longitudinal | 0.2-5mm/double stroke |
| Cross | 0.2-5mm/double stroke |
| Circular (along Fcircular) | 0.4-10mm/double stroke |
| Power of main drive motor | 30kW |
| Total weight Of machine(including eletrical equipment) | 22t |
| Overall dimensions (L x W x H) | 4400x2830x5730 mm |
