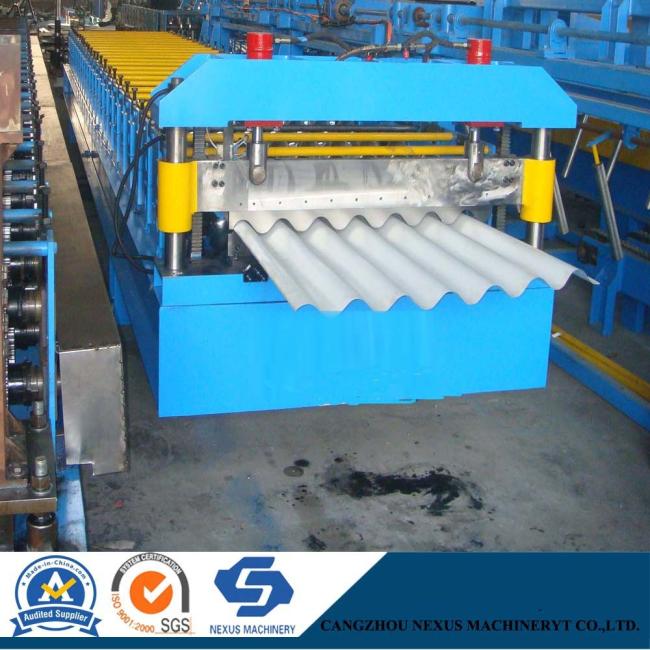

780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment
780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
![780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment]()

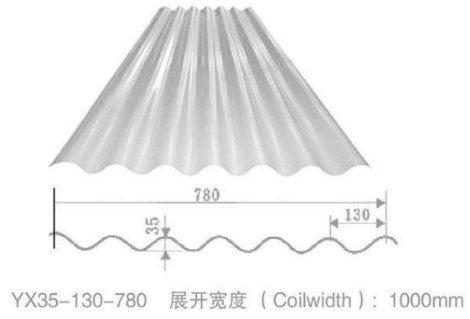

2. Profile Drawings for Reference:
![780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment]()
3. Technical parameters:
4. Equipment list :
5. Character of main structure:
![780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment]()
![780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment]()
![780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment]()
FAQ:
1) Q: Do you provide installing and staff training overseas?
A: Overseas machine install and worker training services are optional. We can send engineer to customers' factory to teach and install.
2) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians. What's more, we can provide updated spare parts to customer if they have requirement.
3) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
2) We welcome your visit us and test machine by yourself in our factory.
4) Q: Do you sell only standard machines?
A: Absolutely not. Most machines are customized according to buyer's specific demand.
Certificate and Exhibition
![780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment]()
![780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment]()
780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
2. Profile Drawings for Reference:
3. Technical parameters:
| Manual decoiler | |
| Capacity | 5ton |
| Feeding width | MAX 1300mm |
| Expanding range | 460-520mm |
| 780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment | |
| Main motor power | 4kw |
| Drive | 1'' single chain |
| Type: | wall panel |
| Main shaft dia | ¢70mm |
| material | 45# forge steel and quenched |
| Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
| Roll station | 18 groups |
| Raw material | 0.3-0.8mm |
| Coil width | 1000mm |
| Working speed | 10m--15m/min(Exclude cutting time) |
| Length Tolerance | ±1.5mm |
| Weight of machine | About 5 ton |
| Size of machine | About 7500×1800×1500mm L x W x H |
| Color of machine | Yellow and Blue |
| Coder | Omron, made in Japan |
| Control | PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) |
| Computer operating panel | touching screen |
| Other electrical element | Schneider |
| Cutting | Hydraulic cutting. Auto cutting when reach the set length |
| Hydraulic power | 3KW |
| Blade material | Cr12mov,quenched 58°-62° |
| Working pressure | 16mpa |
| Cutting tolerance | +/- 1.0mm |
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | 780 Big Wave Zinc Corrugated Roofing Sheet Roll Forming Equipment (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Character of main structure:
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency.
FAQ:
1) Q: Do you provide installing and staff training overseas?
A: Overseas machine install and worker training services are optional. We can send engineer to customers' factory to teach and install.
2) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians. What's more, we can provide updated spare parts to customer if they have requirement.
3) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference.
2) We welcome your visit us and test machine by yourself in our factory.
4) Q: Do you sell only standard machines?
A: Absolutely not. Most machines are customized according to buyer's specific demand.
