Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine
Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine is one most popular type of roll forming machines. It is used to make Al-Mg-Mn steel, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 550mm, thickness range is from 0.3mm to 1.0mm. We adopt 16mm thick wall board type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
![Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine]()
2. Profile Drawings for Reference:
![Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine]()
3. Technical parameters:
4. Equipment list :
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

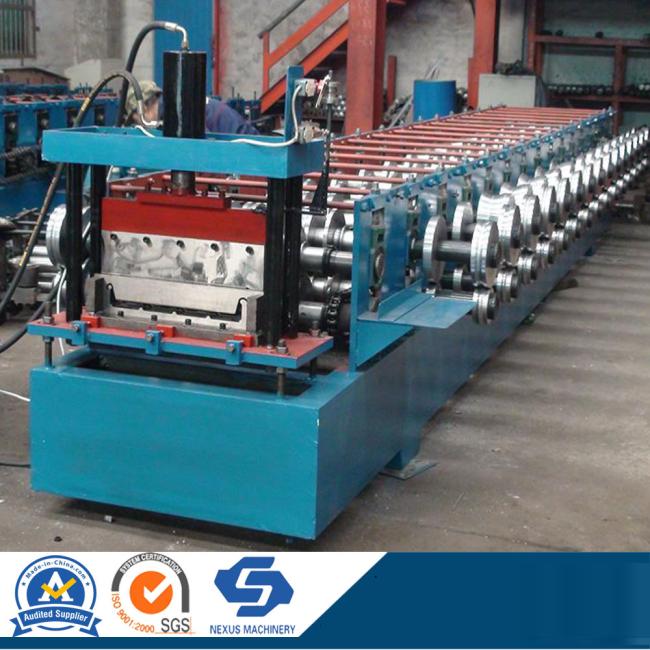

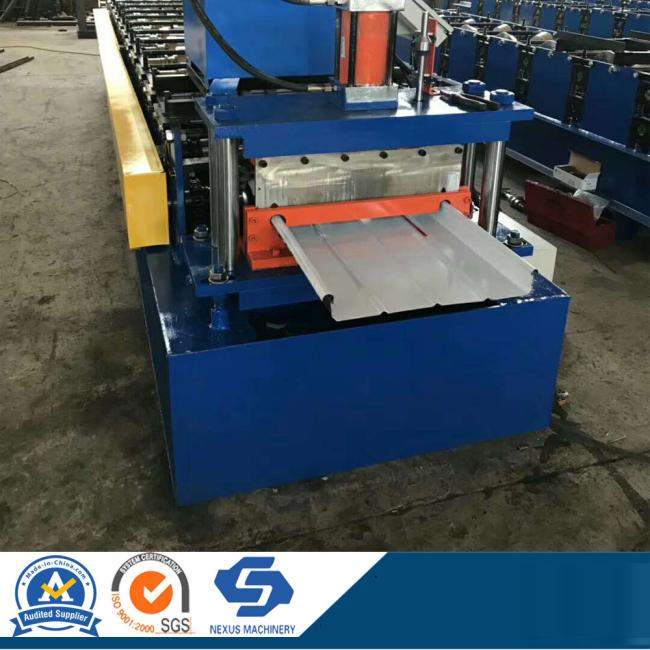

6. Photos of Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine for Reference:![Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine]()
![Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine]()
Package Picture of Roll Forming Machines:
![Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine]()
More Products for your Choose:
![Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine]()
7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
![Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine]()
Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine is one most popular type of roll forming machines. It is used to make Al-Mg-Mn steel, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 550mm, thickness range is from 0.3mm to 1.0mm. We adopt 16mm thick wall board type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
2. Profile Drawings for Reference:
3. Technical parameters:
| Manual decoiler | |
| Capacity | 5ton |
| Feeding width | MAX 1300mm |
| Expanding range | 460-520mm |
| Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine | |
| 5.5kw*2 | |
| Drive | 1'' single chain |
| Type: | Wall board |
| Main shaft dia | ¢70mm |
| material | 45# forge steel and quenched |
| Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
| Roll station | 13 groups |
| Raw material | 0.4-1.0mm |
| Coil width | about 470mm,575mm |
| Working speed | 10m--15m/min(Exclude cutting time) |
| Length Tolerance | ±1.5mm |
| Weight of machine | About 5 ton |
| Size of machine | About 7500×1800×1500mm L x W x H |
| Color of machine | Yellow and Blue |
| Coder | Omron, made in Japan |
| Control | PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) |
| Computer operating panel | touching screen |
| Other electrical element | Schneider |
| Cutting | Hydraulic cutting. Auto cutting when reach the set length |
| Hydraulic power | 3KW |
| Blade material | Cr12mov,quenched 58°-62° |
| Working pressure | 16mpa |
| Cutting tolerance | +/- 1.0mm |
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
6. Photos of Al-Mg-Mn Standing Seam Roofing Corrugated Forming Machine Self Lock Roll Forming Machine for Reference:
Package Picture of Roll Forming Machines:
More Products for your Choose:
7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
