Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine
A bold, square-fluted profile able to effectively cover widths of 686mm, Inverted Box Rib (more commonly known as IBR) is an attractive, practical and highly-durable side cladding and roofing option in residential, commercial and industrial build projects.
Apart from superior draining capabilities and an ideal weight to load/span ratio, there are more than a few reasons why IBR is a South African building industry favourite: IBR can be factory cranked, curved and bull-nosed to exact specifications, making it a malleable material across builds big and small.

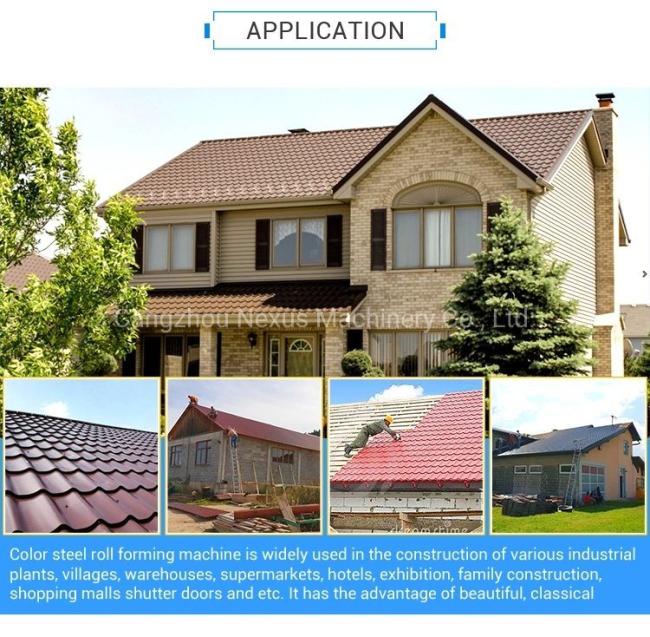

IBR roof sheeting can be used in small scale residential, and medium to large commercial and industrial building projects, for everything from garages, carports, sheds and Wendy Houses, to low cost housing, offices, factories, and warehouses.
1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
2. Profile Drawings for Reference:
![Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine]()
3. Technical parameters for Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine :
4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
5. Photos of Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine for Reference:
![Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine]()
![Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine]()
![Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine]()
![Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine]()
![Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine]()
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
A bold, square-fluted profile able to effectively cover widths of 686mm, Inverted Box Rib (more commonly known as IBR) is an attractive, practical and highly-durable side cladding and roofing option in residential, commercial and industrial build projects.
Apart from superior draining capabilities and an ideal weight to load/span ratio, there are more than a few reasons why IBR is a South African building industry favourite: IBR can be factory cranked, curved and bull-nosed to exact specifications, making it a malleable material across builds big and small.
IBR roof sheeting can be used in small scale residential, and medium to large commercial and industrial building projects, for everything from garages, carports, sheds and Wendy Houses, to low cost housing, offices, factories, and warehouses.
1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table
2. Profile Drawings for Reference:
3. Technical parameters for Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine :
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | 45# steel with 0.05 mm chrome |
| 7 | Shaft material | 45# steel with 0.05 mm chrome |
| 8 | Weight | 6.5 tons |
| 9 | length | 5.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
5. Photos of Canton Fair Galvanized Steel Ibr 686 Roof Tilespan Sheet Roll Forming Making Machine for Reference:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
