Automatic Hydraulic Cutting Omega Profile Steel Framing Machine

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

Product Description

Customer Question & Answer
Ask something for more details

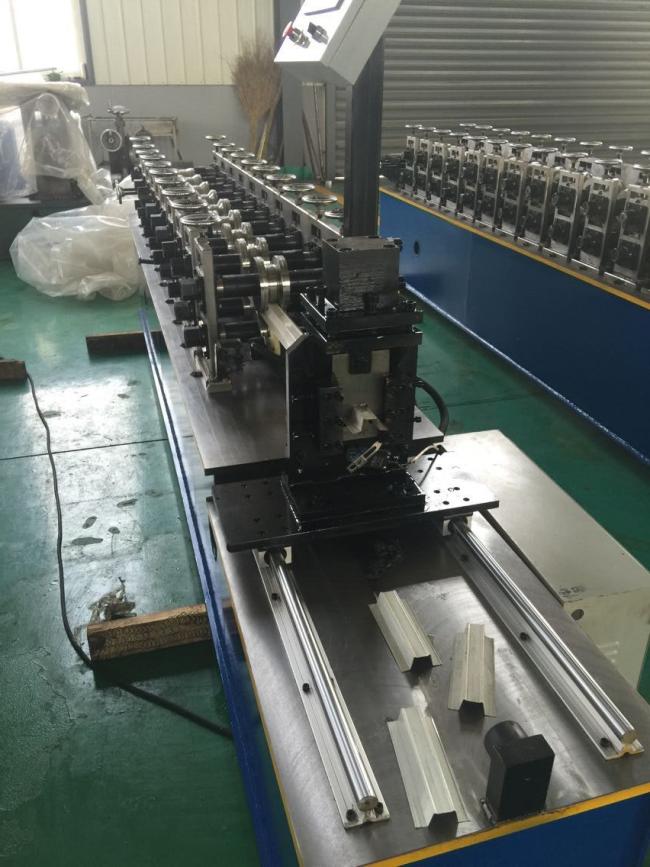

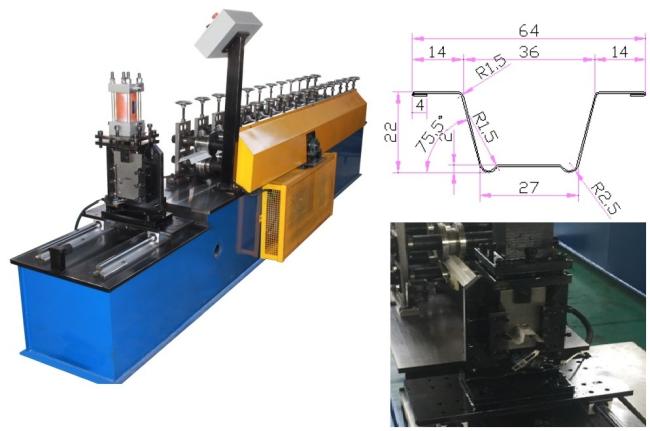

Automatic Hydraulic Cutting Omega Profile Steel Framing Machine


The Automatic Hydraulic Cutting Omega Profile Steel Framing Machine can manufacture various kinds of light keel,Produced keel has a beautiful appearance.

Automatic Hydraulic Cutting Omega Profile Steel Framing Machine



ConfigurationsManual Uncoiler ,Guiding Platform ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Suitable to processColor steel plate
Width of the plate98/133/163mm
Control SystemPLC Colored Touch Screen
Rollers10 stands
Shaft Diameter60mm
Thickness of the plate0.3-0.8mm
Hydraulic Pressure10-12MPa
Roller Standard45#steel with chrome coating heat treatment
Cr-Plating Size0.05mm
Cutter StandardCr12
Power5.5+3kw
Voltage380V 50Hz 3phases
Overall Size2.3Tons

Automatic Hydraulic Cutting Omega Profile Steel Framing Machine
ABOUT US:
Automatic Hydraulic Cutting Omega Profile Steel Framing Machine
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
Automatic Hydraulic Cutting Omega Profile Steel Framing Machine
Package Photos of Roll Forming Machine:
Automatic Hydraulic Cutting Omega Profile Steel Framing Machine
Contact Us:
Automatic Hydraulic Cutting Omega Profile Steel Framing Machine
