Light Production Machine Drywall Fastening Steel Stud and Truss Profiles Roll Forming Machine
Technical Parameters:
| No | item | specificate |
| 1. | processing material | GI strip coils |
| 2. | processing thickness(mm) | 0.3-0.6 |
| 3. | productivity | 20-25m/min |

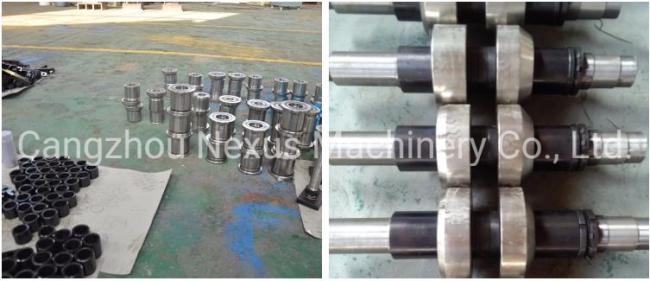

| 4. | roller material | Cr12 |
| 5. | roller driven | decelerating motor+chain transmission |
| 6. | number of roller stations | 10 |
| 7. | diameter of shaft | Φ40mm |

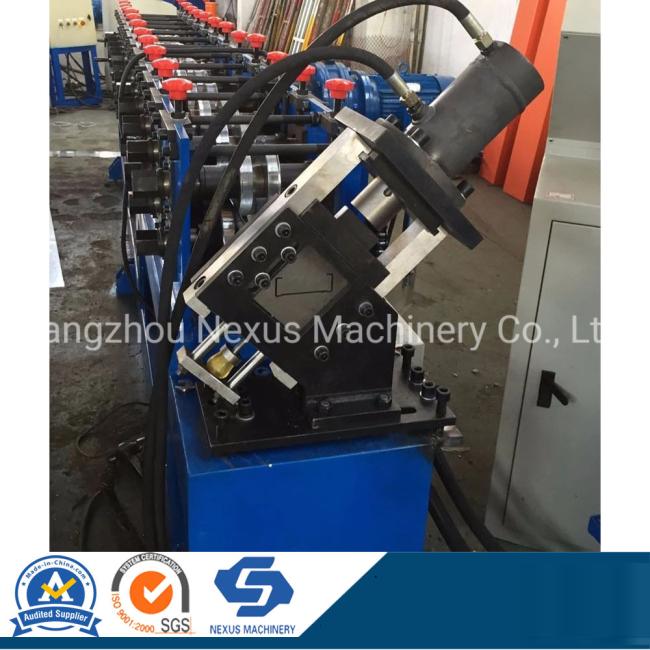

| 8. | cutting mode | hydraulic cutting device |
| 9. | length measurement | encoder |
| 10. | operation mode | button+touch screen |
| 11. | control style | PLC(brand:delta) |
| 12. | driven system | single |
| 13. | total power | 3+3kw |
| 14. | voltage | 380v 50hz or as your requirement |
ABOUT US:
More Products for Your Choose:
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
