High-Output Arena Lens 272×272mm | 408pcs 3030 LEDs | 10°–90° Multiple Options & Low-Glare Optics
High-Output Arena Lens 272×272mm | 408pcs 3030 LEDs | 10°–90° Multiple Options & Low-Glare Optics
1. Advantage
(1) High transmittance
The light transmittance of our lens is 92%.
(2) High-quality PC material
We use high-quality PC materials(Teijin PC), and we can also specify the materials.
(3)Convenient installation
Screw installation is convenient and fast.
(4)Waterproof
Fitted with a silicone gasket, it is effectively waterproof.
(5)Multiple light distribution
Multiple light distributions to meet your light distribution needs.
(6)Multiple dimensions
Multiple sizes are offered, and custom molds can be made if you require a tailored solution.
(7)Uniform facula
The lens improves LED color quality while creating a cleaner, more concentrated light spot.
2. Specification
| Mold No. | HH-470-102×4-xx-3030 |
| Material | PC |
| Transmittance | 92% |
| Size(mm) | 272x272mm |
| Angle | 10°/30°/45°/60°/90° |
| LEDs | 3030 |
| LEDs number | 408 |
3. Application
Can be used in high-power stadium lighting.

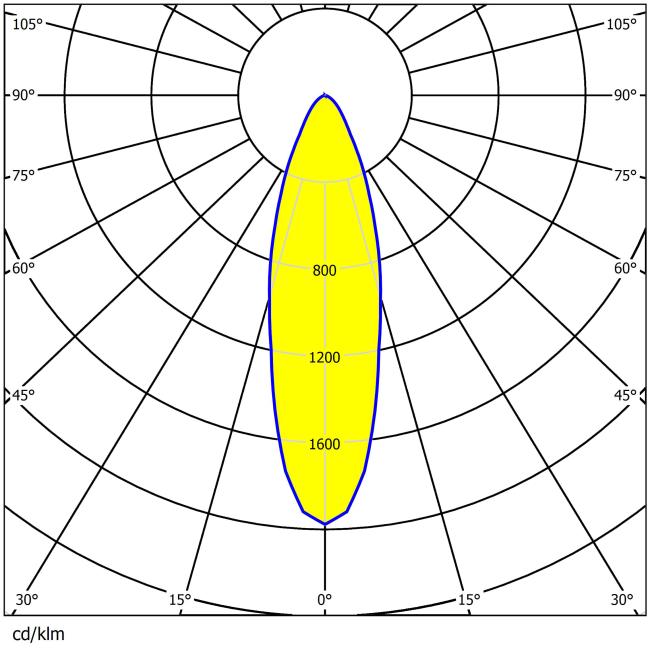

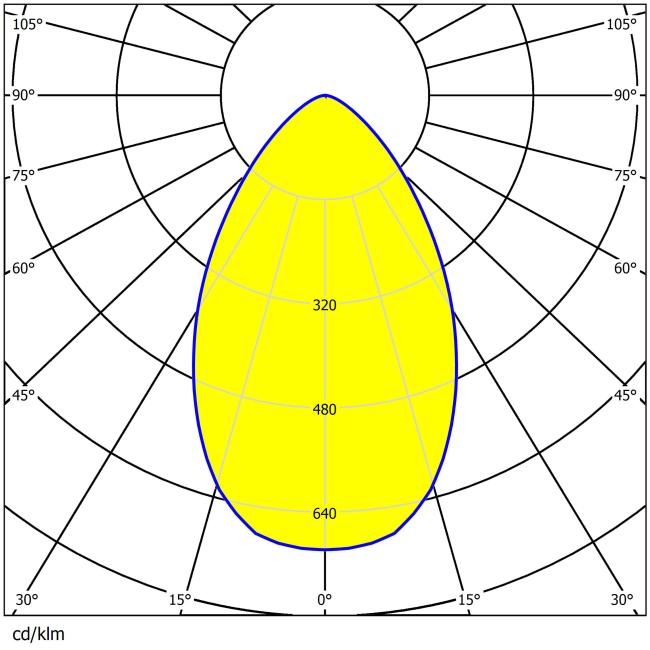

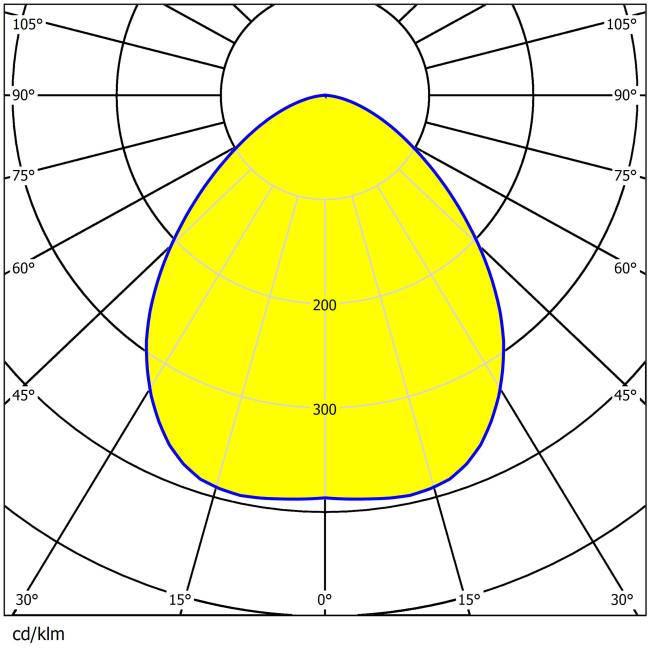

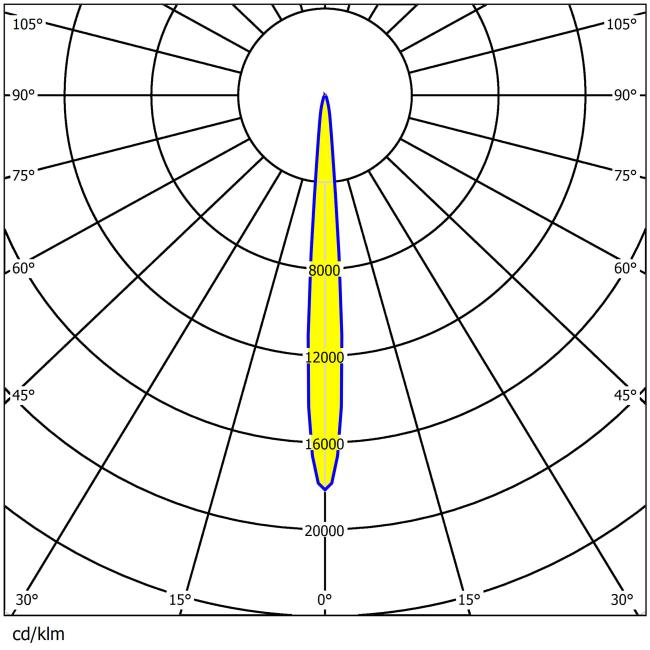

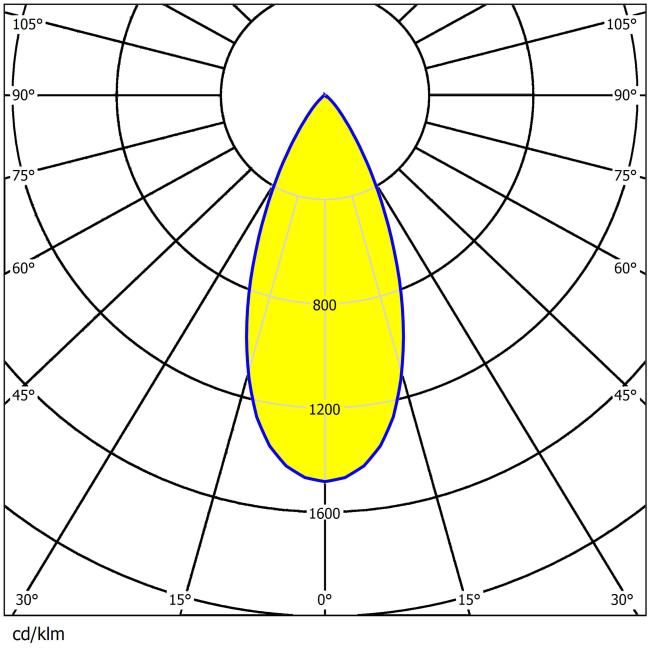

4. Light Distribution
5. Our services
(1) Good quality control
(2) Highly competitive prices
(3) Latest product
(4) Best professional team
(5) Smooth communication
(6) Effective OEM&ODM service
6. FAQ
Q1. What’s your MOQ? Can I order a small order QTY for the first time?
Q2. What about the lead time?
Q3. Which payment term?
A: Usually, we prefer T/T, PayPal, Western Union, and MoneyGram.
Q4. Can you do ODM and OEM products?
A: Yes, ODM, OEM order is accepted.
Q5. How to process mold product orders?
A: Firstly, let us know your requirements or application.
Secondly, our designers will come up with designs.
Thirdly, the customer confirms the design and pays the deposit.
A: All our products are 100% QC and marked before delivery, and if there is any problem during the period, we will help deal with it.
Q7. Reliable After-sales Service:
A: Customers could be guided by us to address any troubles; We will supply enough spare parts for each project.
We provide 24-hour support and can be reached anytime by phone or email.
