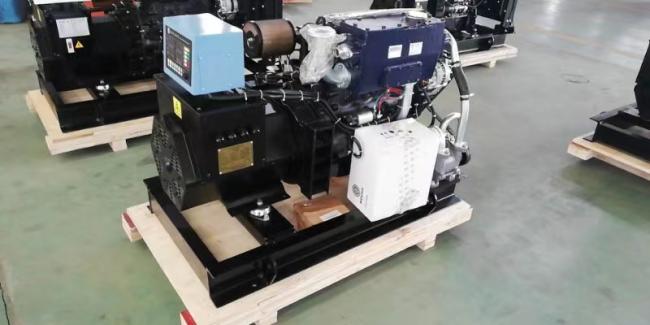

Weichai 12kW 15kVA Diesel Marine Generator 220V-690V Commercial
Weichai 12kW/15kVA Marine Diesel Generator w/12-Month Warranty
Products: Weichai 12kW/15kVA Marine Diesel Generator w/12-Month Warranty
Prime Output: 12kW
Payment Term One: 30% Paid By T/T for Deposit, 70% Paid by T/T Before Shipment.
Payment Term Two: 100% Paid by Irrevocable L/C At Sight.
Engine Manufacturer: Weichai Group
Warranty: 12 months or 1,000 running hours, subject to which comes first.
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Sea-water Heater, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Testing: Tecgen Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
Services Parts: Service and parts are avaiable from Tecgen Power or distributors in your location.
TECHNICAL DATA:
| Technical Specification: | |
| Marine Diesel Generator Set Specification | |
| Marine Genset Model | TGWC-15M |
| Open | |
| Frequency | 60Hz |
| Voltage | 120V |
| Phase | 3 |
| Rate Current | 72.2A |
| Prime Power | 12kW / 15kVA |
| Standby Power | |
| Engine Model | WP2.3CD25E200 |
| Alternator Model | TGM-10-4 |
| Controller | HGM6120N |
| Weight & Dimensions | |
| Length (mm) | 1300 |
| Width (mm) | 630 |
| Height (mm) | 1000 |
| Weight (kgs) | 650 |
| Engine Specification | |
| Brand | Weichai |
| Engine Model | WP2.3CD25E200 |
| Standby power (kW) | 25 |
| Injection | Indirect |
| Aspiration | Four Stroke, Water-Cooled, Inline, Wet Cylinder Liner |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 89 x 92 |
| Displacement (L) | 2.289 |
| Cooling | Sea Water Pump |
| Compression Ratio | 17.3:1 |
| Governor | MECH |
| Air Filter | Dry Element |
| Fuel consumption | at 60Hz |
| 100% Load (L/h) | 3.3 |
| Alternator Specification | |
| Brand | Tecgen |
| Model | TGM-10-4 |
| Rate Output (kVA) | 15 |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Double |
| Controller System | |
| Brand | Smartgen |
| Model | HGM6120N |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | |
Tecgen Power Generator Feature:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Marathon alternator or Chinese Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Working Hours Base Fuel Tank
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Warranty with 1000 hours or one year, which comes first.
perfect and luxury for advertising.
All stand machine can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
