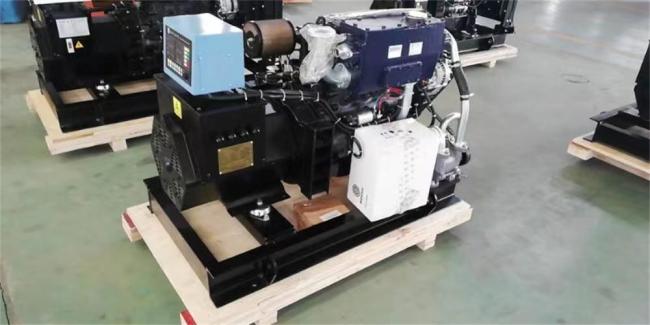

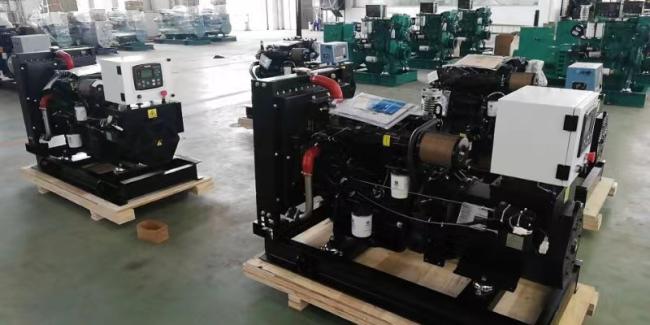

9kW Marine Diesel Generator Set With Sea Water Pump Cooling System Marine USE
9kW Marine Diesel Generator Set with Sea Water Pump Cooling System Marine USE
-Power by Yangchai / Weichai / Cummins Marne diesel engine
-With Stamford / Leroy Somer / Marathon / Tecgen alternator
-With Aisikai MCCB & Electronic Components
-Electric start with battery
-10 hours Lasting Base Integrated fuel Tank
-Strictly comply with ISO9001/CE
-24*365 hours global after-sale services
-Option:ATS, Deepsea / ComAp / Smartgen controller
-All generator sets COO Certificate
Specifications:
TECHNICAL DATA:
| Technical Specification: | |
| Marine Diesel Generator Set Specification | |
| Marine Genset Model | TGYC-11M |
| Open | |
| Frequency | 50Hz |
| Voltage | 400/230V |
| Phase | 3 |
| Rate Current | 15.9A |
| Prime Power | 9kW / 11kVA |
| Standby Power | |
| Marine Engine Model | WP2.1CD18E1 |
| Alternator Model | TGM160E |
| Controller | HGM6120N |
| Weight & Dimensions | |
| Length (mm) | 1300 |
| Width (mm) | 630 |
| Height (mm) | 1000 |
| Weight (kgs) | 550 |
| Marine Engine Specification | |
| Brand | Yangchai |
| Marine Engine Model | WP2.1CD18E1 |
| Standby power (kW) | 18 |
| Injection | Indirect |
| Aspiration | Four Stroke, Water-Cooled, Inline, Wet Cylinder Liner |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 85 x 100 |
| Displacement (L) | 2.289 |
| Cooling | Sea Water Pump |
| Compression Ratio | 17.3:1 |
| Governor | MECH |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 2.5 |
| Alternator Specification | |
| Brand | Tecgen |
| Model | TGM160E |
| Rate Output (kVA) | 11 |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Double |
| Controller System | |
| Brand | Smartgen |
| Model | HGM6120N |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | |
Main Features:
* Felxible -can be customerized according to customer's request, drawing will be submitted for approval. Such as taking off radiator and replacing with the heat exchanging system, total power solution such as gear box coupling and canopy design.
* Durability- With Yangchai marine engines have been engineered to meet the durability and performance needs of marine applications and seawater cooling options and controls seamlessly integrated to ensure the propulsion for your vessel meets your needs.
* Long-Life Expectancy - these critical parts are manufactured by leading companies, other part comes from reliable manufacturers, these sets guarantee long functional life, outstanding performance, and high efficiency.
* Easy availability of the spare parts -- the key parts are same as parts for vehicle diesel engine, better exchange and universality and durable.
* Easy maintenance -Diesel engine not require heavy maintenance. It is very easy, safe, and simple to use. Well-planned and preventive maintenance
measures are generally available for these marine generator sets which are also low in cost.
