23kW Silent Genset Yangdong Diesel Generator With Silent Enclosed Canopy For Standby
Price:
Negotiation
MOQ:
1 unit
Delivery Time:
15 Days
Brand:
Tecgen Power
Product Description

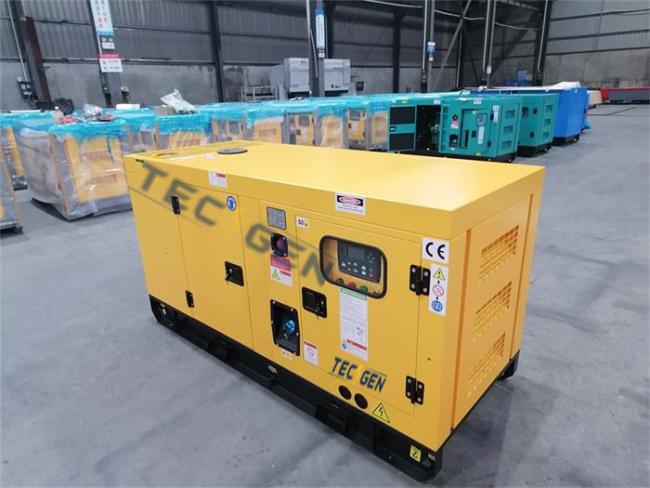

23kW silent genset Yangdong diesel generator with silent enclosed canopy for standby
Tecgen Power's Offerings:
- Water-Cooled Diesel Generators: Ranging from 1kw to 2400kw, our water-cooled diesel generators offer unparalleled efficiency and durability.
- Air-Cooled Diesel Generators: Ideal for a variety of applications, our air-cooled diesel generators are available in a wide range of power outputs, from 11kW to 91kW.
- Marine Diesel Generators: Designed for the demands of the marine industry, our marine diesel generators provide reliable power output from 12kW to 500kW.
- Brush & Brushless Alternators: With a diverse range of power outputs, from 2kVA to 800kVA, our brush and brushless alternators cater to various power requirements.
- AC Electric Motors: Offering a comprehensive selection of AC electric motors, ranging from 0.18kW to 315kW, we ensure you find the perfect motor for your application.
- CKD & SKD Type Diesel Generators: Tailored to meet specific customer needs, our CKD and SKD type diesel generators offer flexibility and customization.
Renowned Engines:
Harnessing the power of Cummins, Deutz, Perkins, Yangdong, Weifang Ricardo, SDEC, Weichai, Yuchai, FAWDE, Quanchai, YTO, ISUZU, VMAN, Googol, and Yanmar, we offer a diverse range of dependable engines.
Prestigious Alternators:
Our alternators are sourced from leading brands like Stamford, Leroy Somer, Meccalte, Marathon, and Copy Stamford, ensuring high-quality and reliable power output.
Control Panels:
Trust our control panels from top manufacturers like DEIF, Smartgen, Deepsea, ComAp, and Tecgen for seamless and efficient power management.
Yangdong Diesel Generator Technical Specifications:
| 23kW Yangdong Diesel Generator Datasheet | ||||
| Yangdong Diesel Generator | Genset Type | Silent Enclosed | ||
| Genset Model | TG32YDS | |||
| Prime Output | 29kVA / 23kW | |||
| Max Output | 32kVA / 25kW | |||
| Engine model | Yangdong Y4100D | |||
| Alternator mdoel | TGI184S23 (Copy Stamford) | |||
| Frequency | 50Hz | |||
| Speed | 1500rpm | |||
| Voltage | 240/415V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 40.3A | |||
| Controller | TG6120U | |||
| ATS | 63A Built-in ATS | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L2200x750x1180mm | |||
| Weight | 800kgs | |||
| Yangdong Diesel Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Yangdong Diesel Engine Parameters | ||||
| Yangdong Engine Y4100D | Brand | Yangdong | ||
| Model | Y4100D | |||
| Prime power | 31kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Naturally Aspiration | |||
| Compression Ratio | Direct Injection | |||
| Speed | 1500rpm | |||
| Displacement | 3.707 | |||
| Bore* Storke | 100mm*1118mm | |||
| governor | MECH | |||
| Start motor | DC 12V | |||
| Cooling Capacity | 5.7 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 237g/kW.h | |||
| Brushless Alternator Parameters | ||||
| Alternator TGI184S23 | Brand | Tecgen | ||
| Model | TGI184S23 | |||
| Rate Output | 23kW | |||
| Rate Speed | 1500rpm | |||
| Frequency | 50Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Genset Controller System | ||||
| Controller TECGEN TG6120U | Brand | Tecgen | ||
| Model | TG6120U | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| Inlet & Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||

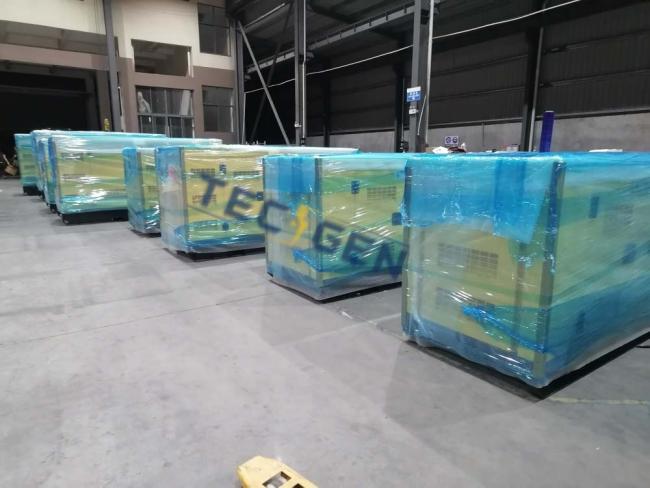

| Delivery Date of Yangdong Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Yangdong Diesel Generator Benefits:
- Safety-Enhanced Design: Features radiator & fan with safety guards for secure operation.
- Thorough Inspection: Each Yangdong diesel generator undergoes 3 rigorous inspections, including load testing up to 110%, for peak performance.
- Sturdy Steel Construction: Heavy-duty steel frame with 2mm-6mm thickness for durability.
- Decades of Expertise: 15+ years of experience in diesel engines & generator sets, backed by industry reputation.
- Sound & Fire Protection: High-density sound insulation & fireproofing materials for peace of mind.
- User-Friendly & Aesthetic Design: Bottom hole for forklift maneuvering, easy-access water & oil outlets.
- Extended Fuel Capacity: Base frame tank supports 8-10 hours of continuous operation with 5mm+ steel for stability.
