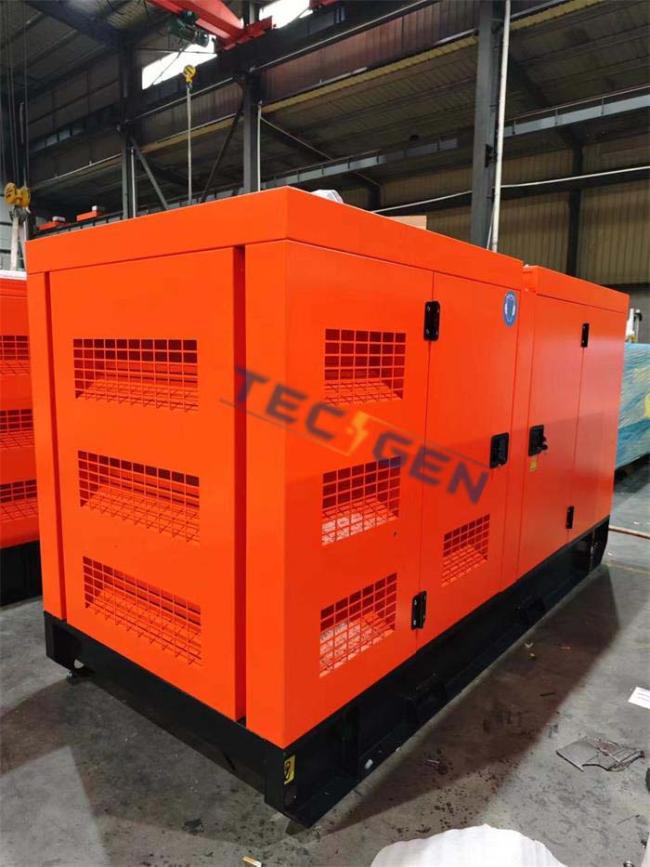

72kW Yuchai Diesiel Generator 60Hz With Soundproof Canopy
72kW Yuchai diesiel generator 60Hz Yuchai generator with Soundproof Canopy
YC DIESEL/Yuchai Engine General Features:
- Premier Cost-Efficient Power Solution -
✓ Premier Chinese brand with rich heritage & leading local market share
✓ Power range: 20KVA-3000KVA. Click for more info.
✓ 150+ global after-sales service centers
✓ High-grade alloy cast iron cylinder head for peak reliability
✓ Advanced combustion technology for optimized performance
✓ Features: Energy-saving, eco-friendly, reliable, robust, easy to maintain
Enhanced Features:
- Radiator: Operates at a maximum of 50°C, belt-driven fans with safety guard for added security.
- 24V Charge Alternator: Ensures reliable charging.
- Alternator: Single bearing, IP23 rated with H/H insulation class for durability.
- Absorber: Ensures efficient operation.
- Air, Fuel, & Oil Filters: Dry-type for enhanced filtering performance.
- Circuit Breaker: Safeguards the main line.

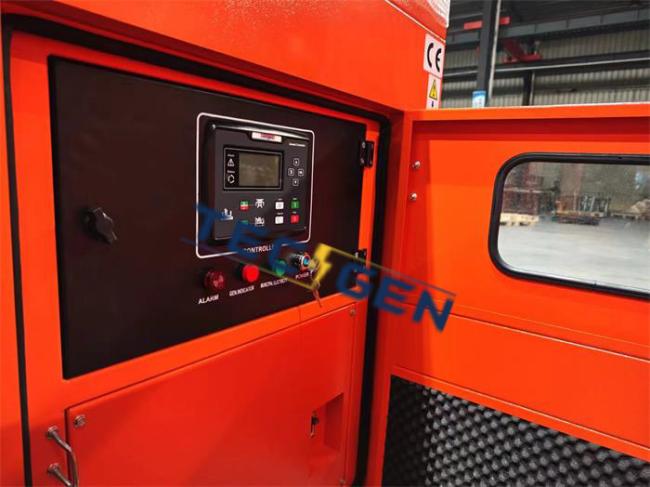

- Control Panel: Standard for easy operation.
- Batteries & Charger: Two 24V DC maintenance-free batteries with charger and wire for continuous power.
- Exhaust System: Ripple flex pipe, siphon, and flanged muffler for efficient exhaust.
- User Manual: Includes comprehensive instructions for ease of use.
72kW Yuchai Diesel Generator Specifications:
| 72kW Yuchai Diesel Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG99YCSD6 | YC6B130Z-D20 | TAL-A44-D | TECGEN 6120U | 72kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Yuchai Diesel Generator | |||||
| Engine Model | YC6B130Z-D20 Yuchai | ||||
| Alternator Mode | TAL-A44-D LEROY SOMER | ||||
| Rated Output | 90kVA / 72kW | ||||
| Standby Output | 99kVA / 79kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 125.2A | ||||
| Breaker | 160A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 2050KGS | ||||
| Genset size | L2750 * W1400 * H1700mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Yuchai Diesel Generator | |||||
| Manufacture | Yuchai | ||||
| Model | YC6B130Z-D20 | ||||
| Rated Output/Speed | 88KW/1800RPM | ||||
| Standby Output/Speed | 97KW/1800RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | Electric | ||||
| Engine Type | 6 cylinders in line | ||||
| Bore X Stroke | 108*125mm | ||||
| Displacement | 6.87 L | ||||
| Compression ratio | 17.5:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 19.7 L / h | ||||
| Fuel Consumption/standby output | 21.6 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Yuchai Diesel Generator | |||||
| Alternator Model | TAL-A44-D | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 80kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Yuchai Diesel Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | TECGEN 6120U | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
PRODUCT Features:
- Power Output: Ranges from 16KW to 2200KW for diverse applications.
- Engine: Fueled by reliable YUCHAI water-cooled diesel engine.
- Alternator Brands: Top choices include Stamford, Leroy Somer, and Marathon.
- AMF Panel: Integrated with ATS for seamless operation.
- Sound & Weatherproof: Optional trailer-type design for enhanced durability.
- Comprehensive Manual: Includes instructions for engine, alternator, and control system.
- Battery & Silencer: Comes with two storage batteries and silencer for quiet operation.
- Fuel Tank: Designed for 8 hours of continuous operation based on the frame.
- Warranty: 1-year or 1000-hour guarantee for peace of mind.
