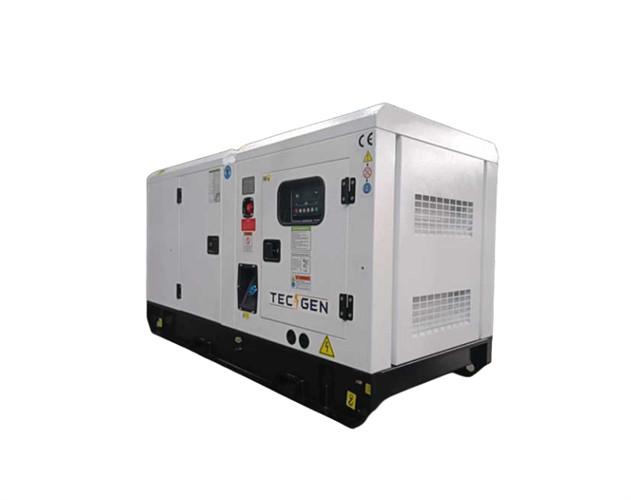

75KVA Diesel Generator Weichai Power 50HZ 60KW Soundproof Generator
75KVA Diesel Generator Weichai Power 50Hz 60KW Soundproof Generator
Standby Output: 83kVA/66kW
Prime Output: 75kVA/60kW
Prime Power:
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
Standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
| Technical Parameter for Diesel Generator | Genset Model | TG83WP |
| Prime Power | 75kVA/60kW | |
| Standby Power | 83kVA/66kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Weichai | |
| Engine Model | WP4.1D80E200 | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI224S-60 | |
| Engine General Data | Engine Power(kW) | 72 |
| Cyl / Arrangement | 4L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 105x118 | |
| Speed Governor | Electrical | |
| Fuel Consumption (g/kw.h)) | 235 | |
| Alternator Data | Model | TGI224S-60 |
| Brand | Tecgen | |
| Rate Output | 75kVA/60kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Deepsea, Deif, ComAp | |
| Starting Voltage | 24V | |
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Product Fetures:
1. Famous diesel engine -- Powered by Weichai Power
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, Tecgen.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date. During the guarantee period, our Tecgen Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
