94KVA Weichai Power 75KW Diesel Generator For Standby Output 50Hz 103KVA

94KVA Weichai Power 75KW Diesel Generator For Standby Output 50Hz 103KVA

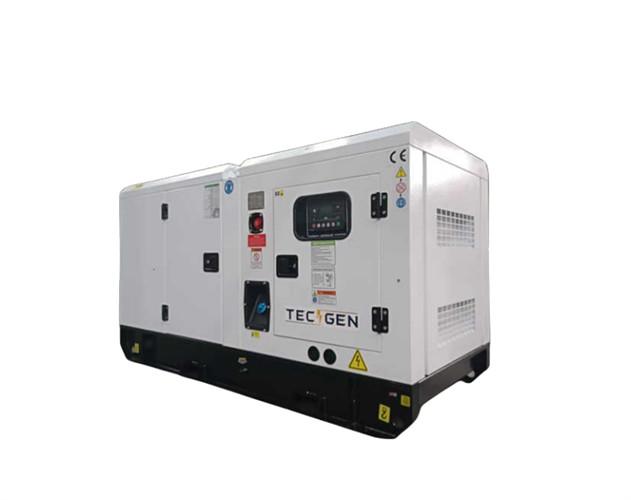

Products: 94kVA/75kW Weichai Diesel Generator Set

Standby Output: 103kVA/83kW

Prime Output: 94kVA/75kW

Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.

Testing: Tecgen Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.

Services Parts: Service and parts are avaiable from Tecgen Power or distributors in your location.

Engine

· Heavy duty diesel engine

· Four stroke, water cooled

· 12V and 24V stater and charge alternator

· Cooling radiator and fan

· Maintenance free battery including ract and cable

· Flexible fuel connection hoses and manual oil sump drain valve

· Exhaust silencer

Alternator

· Brushless, single bearing, flexible disc

· Insulation class: H

· Protection class: IP23

· Self-exciting and Self-regulation

Canopy

· All canopy designed with modular principles

· All metal canopy parts painted by electrostatic polyester power paint

· Soundproof design ensure that the noise level be controlled in small scope

· Convenient to lift and move

· Easy to maintenance and operate

Base Frame

· Base frame including position for forklift and crane

· Integral fuel tank

· Daily fuel tank continuously supply for 8-24 hours

· Fuel tank easy to maintain and clean

· Anti-vibration pads are flexed between engine and alternator.

Control System
Control, monitor and protect the Generator Set including:

· High water temperature

· Low oil pressure

· Over and under speed

· Over current

· Under/Over generator voltage

· Start and stop failure

· Low and high battery voltage

· Charge fail

· Emergency stop

Specifications:

Tecgen Power Generator Feature:

1, Output range: 5kVA to 3000kVA Heavy Duty diesel generator.

2, Different brands of engine, alternator and controller as options

3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator

4, Open type, silent type, super silent type or mobile type generator.

5, CE, ISO9001-2008, SONCAP, SASO and SGS certified

6, Starter System with maintenance-free battery

7, Control Panel with Key Start (Power Switch)

8, With 100% fire-resistant sound attenuating sponge

9, 10% of rate output of overload for 1hours in every 12hours

10, Spare parts are easy to get from worldwide market with much cheaper price

11, Perfect after-service network

12, Both 50Hz and 60Hz

13, Chint circuit breaker

14, Three-phase output meets differing requirements

15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option

16, Large fuel tank ensure continuous running.

17, Anti-Vibration Mounted

18, Industrial silencer and flexible exhaust hose

19, 0-110% load test for each unit before delivery

20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
