Silent Industrial Diesel Generators 50kVA FAWDE Generator Set With Stamford Alternator
Price:
Negotiation
MOQ:
1 unit
Delivery Time:
15 Days
Brand:
Tecgen
Product Description

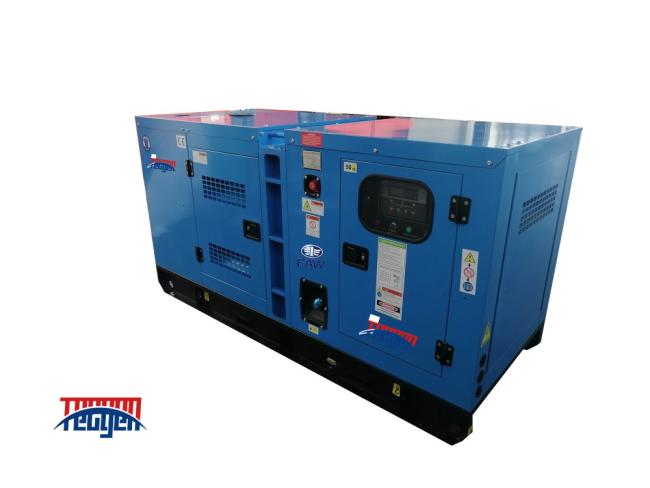

Silent industrial diesel generators 50kVA FAWDE generator set with Stamford alternator
Product Description for Industrial Diesel Generators - FAWDE Generator Set
Key Features:
- Powerful and reliable FAWDE diesel engine
- Silent/Super Silent operation for noise-free environments
- Wide voltage range compatibility for global usage
- Auto Mains Failure detection for seamless backup power
- Energy-efficient with low fuel consumption
Standard Features:
- Rated Voltage options: 440V/415V/400V/380V/230V/220V/110V
- Stable 50Hz frequency output
- AC Three-phase output for diverse applications
- Stamford UCI 224D alternator for consistent power delivery
- DEIF SGC-420 controller for intelligent power management
50kVA Industrial Diesel Generators Technical Parameters:
| Industrial Diesel Generators Technical Datasheets | ||||||
| Genset model | TG55FWS | |||||
| Genset Type | Silent / Super Silent | |||||
| Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| Output Type | AC Three Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 72.2A | |||||
| Prime Power | 40kW / 50kVA | |||||
| Standby Power | 44kW / 55kVA | |||||
| Diesel Engine | Brand | FAWDE | ||||
| Model | 4DX22-65D-HMS60W | |||||
| AC Alternator | Brand | Stamford | ||||
| Model | UCI 224D | |||||
| Genset Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 1200kgs | |||||
| Genset Dimensions | L2300 * W 1050 * 1300 | |||||
| Fuel Tank Capacity | 8 running hours | |||||
| FAWDE Diesel Engine Data | ||||||
| Brand | FAWDE | |||||
| Engine Model | 4DX22-65D-HMS60W | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged | |||||
| Displacement | 3.86L | |||||
| Compression ratio | 17:1 | |||||
| Bore×Stroke | 102*118mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 48kW | |||||
| Standby Power | 53kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 220g/kwh@1500rpm | |||||
| AC Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | UCI 224D | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 3kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| Genset Controller System | ||||||
| Controller System | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Functions | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Set Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin |
Leroy Somer / Stamford / Mecc Alte / Tecgen
|
DEIF | Open/Silent | ||
| 7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
| 11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
| 10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Ideal for industrial, commercial, and residential use as a primary or standby power source during power outages or as a continuous power supply in remote locations.
Options:
- Multiple power output ranges to suit your specific needs
- Choice of diesel engine brands and alternator configurations
- Customizable controller settings for enhanced functionality
Warranty:
Backed by a comprehensive warranty for peace of mind and assured quality. Contact us for detailed warranty terms and conditions.
