17kW Soundprood Diesel Generator 3 Phase Chinese Engine Generator Set Standby Use
17kW soundprood diesel generator 3 phase Chinese engine generator set standby use

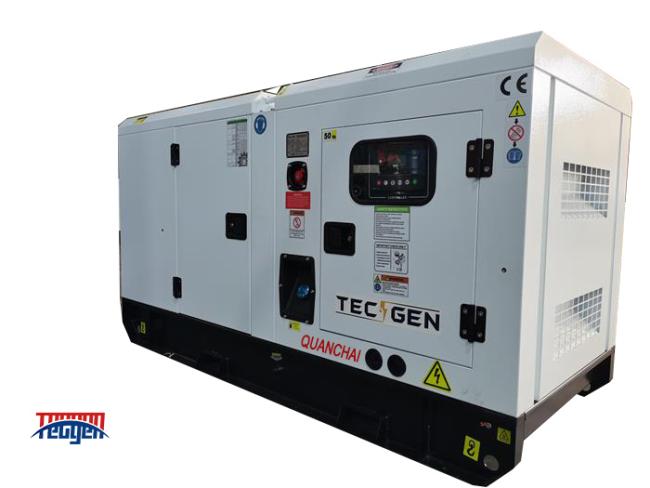

Product Description: Soundproof Diesel Generator Set
Standard Feature:
- Model: TG23QCS
- Rated Output: 17kW / 21kVA
- Standby Output: 19kW / 23kVA
- Frequency: 50Hz
- Rated Voltage: 240/415V
- Output Type: Three Phase, 0.8
- Rated Current: 29.2A
- Dimension: L2000 x W900 x H1000 mm
- Gross Weight: 730 kg
Key Feature:
- Powerful yet silent - Our soundproof diesel generator provides reliable power output while minimizing noise pollution.
- Chinese Engine Technology - Equipped with a Quanchai engine, renowned for its durability and fuel efficiency.
- High Efficiency - The Tecgen alternator ensures 92.50% efficiency, maximizing power output.
- Easy Control - The DEIF control system offers user-friendly operations with various safety features.
17kW Soundproof Diesel Generator Specifications:
| QUANCHAI Soundproof Diesel Generator Set Datasheet | |||||||||||||
| Genset Model | TG23QCS | ||||||||||||
| Rated Output | 17kW / 21kVA | ||||||||||||
| Standby Output | 19kW / 23kVA | ||||||||||||
| Frequency | 50Hz | ||||||||||||
| Rated Voltage | 240/415V | ||||||||||||
| Output Type | Three Phase, 0.8 | ||||||||||||
| Rated Current (A) | 29.2A | ||||||||||||
| Dimension (mm) | L2000 x W900 x H1000 | ||||||||||||
| Gross Weight (kg) | 730 | ||||||||||||
| Diesel Engine | Brand | Quanchai | |||||||||||
| Model | N490D | ||||||||||||
| Configuration | Four-stroke,Water-cooling,Direct Injection | ||||||||||||
| Rated Power | 23kW | ||||||||||||
| Rated Speed (rpm) | 1500rpm | ||||||||||||
| Cylinder No. | 4 | ||||||||||||
| Bore*Stroke (mm) | 90 x 100 | ||||||||||||
| Displacement(L) | 2.544 | ||||||||||||
| Intake | Natural Intake | ||||||||||||
| Oil Consumption (g/Kw*h) | 230@100% load | ||||||||||||
| Starting method | 24V DC | ||||||||||||
| Alternator | Brand | Tecgen | |||||||||||
| Model | TGI184S17 | ||||||||||||
| Rated Power | 17kW | ||||||||||||
| Materials | 100% pure copper | ||||||||||||
| Efficiency | 92.50% | ||||||||||||
| Voltage Regulation | <=±1 | ||||||||||||
| Voltage Regulation | Brushless, Self-excitation | ||||||||||||
| Insulation Class | H | ||||||||||||
| Option brands | Stamford / Leroy Somer / Meccalte | ||||||||||||
| Control System | Brand | DEIF | |||||||||||
| Model | SGC-420 | ||||||||||||
| Working Voltage | DC8.0V to DC35.0V, continuous | ||||||||||||
| Overall Dimensions (mm) | 233*38.5*173 | ||||||||||||
| Panel Cutout (mm) | 219*158 | ||||||||||||
| Working Condition | 0 to 95 % RH. To IEC 60068-2-78 | ||||||||||||
| Functions | AMF/ATS | ||||||||||||
| RS485 & CAN communication | |||||||||||||
| 9 Inlet & 7 Outlet | |||||||||||||
| PLC & BTN | |||||||||||||
| Protections | Under-speed | ||||||||||||
| Over-speed | |||||||||||||
| Configurable crank connect | |||||||||||||
| Battery monitoring | |||||||||||||
| Charging alternator | |||||||||||||
| Pre-heat | |||||||||||||
| Coolant temperature | |||||||||||||
| Lube oil pressure | |||||||||||||
| Fuel level detection | |||||||||||||
| Fuel theft detection | |||||||||||||
| ECU communication failure | |||||||||||||
| ECU diagnostic lamp | |||||||||||||
| Option brands | Deepsea / Smartgen / ComAp / Mebay | ||||||||||||
| Genset option equipment | |||||||||||||
| Integrated-Fuel-Tank | ATS Box / Cabinet | ||||||||||||
| PMG Alternator | Sync Panel | ||||||||||||
| Trailer Type | Engine Heater | ||||||||||||
| Water Heater | Fuel – Water Separator | ||||||||||||
| Maintenance Timetable of Diesel Generating Set | |||||||||||||
| Items | Job | Content | Everyday | Every Week | Every Month | Every Six Month | Every Year or 250 Hours | ||||||
| Lubricating System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Level of engine oil | √ | √ | √ | √ | √ | ||||||||
| Replace | Oil Filter | √ | √ | ||||||||||
| Engine Olil | √ | √ | |||||||||||
| Clean | Crankcase box | √ | √ | ||||||||||
| Cooling System | Check | Oil leakage | √ | √ | √ | √ | √ | ||||||
| Radiator Block | √ | √ | √ | ||||||||||
| Soft Tube and Joint | √ | √ | √ | ||||||||||
| Fluid | √ | √ | √ | √ | |||||||||
|
Antifreeze and Anticorrosion |
√ | √ | √ | ||||||||||
| Belt Status | √ | √ | |||||||||||
|
Add Grease lubricant |
Fan and Tensing | √ | √ | ||||||||||
| Belt wheel | √ | √ | |||||||||||
| Check | Driving Belt wheel and pump | √ | √ | ||||||||||
| Replace | Cooling Liquid | Every 12 months | |||||||||||
| Clean | Cooling System | ||||||||||||
| Airflow System | Check | Oil Gas | √ | √ | √ | ||||||||
| Cleaner | √ | √ | √ | √ | |||||||||
| Pipe Fittings and Joint | √ | √ | |||||||||||
| Replace | Core of Air Cleaner | √ | |||||||||||
| Fuel System | Check | Leakage | √ | √ | √ | √ | √ | ||||||
| Quality of Fuel | √ | √ | √ | √ | |||||||||
| Pump Nozzle | √ | ||||||||||||
| Fuel pipe and Joint | √ | √ | |||||||||||
| Oil Pump | √ | √ | √ | ||||||||||
| Discharged | Deposition of Fuel Tank | √ | √ | √ | |||||||||
| Replace | Filter of oil | √ | √ | ||||||||||
| Check | Nozzle | Every Two Years | |||||||||||
| Adjust | Value | √ | |||||||||||
Usage:
Ideal for industrial, commercial, and residential applications where reliable and quiet power supply is essential. It can be used as a primary or backup power source in hospitals, data centers, construction sites, and other critical facilities.
Advantage:
- Superior Soundproofing - Our generator's soundproof design significantly reduces noise levels, ensuring a peaceful environment.
- Easy Maintenance - The compact design and user-friendly control panel make maintenance and troubleshooting effortless.
- Long-lasting Durability - High-quality materials and components ensure long-term reliability and durability.
- Versatile Options - Multiple options and accessories allow for customization to meet specific needs.
Option:
- Integrated-Fuel-Tank: For extended operation without frequent refueling.
- ATS Box / Cabinet: Automatic Transfer Switch for seamless power transfer.
- PMG Alternator: Provides additional power generation capacity.
- Trailer Type: Easy transportation to remote locations.
- Engine Heater: Ensures smooth startup in cold weather conditions.
FAQ:
Q: Is the generator easy to operate?
A: Yes, the generator comes with a user-friendly control panel and detailed instructions for easy operation.
Q: How often does the generator require maintenance?
A: Regular maintenance is recommended to ensure optimal performance. Please refer to the maintenance timetable for specific intervals.
Q: Can the generator be customized with additional features?
A: Yes, we offer a range of options and accessories to customize the generator to your specific needs.
Q: What is the warranty period for the generator?
A: Please contact our customer service for detailed warranty information.
