53kVA Perkins Diesel Generators 60Hz Soundproof Perkins Generator Set With Ats
Price:
Negotiation
MOQ:
1 unit
Delivery Time:
15 Days
Brand:
Tecgen Power
Product Description

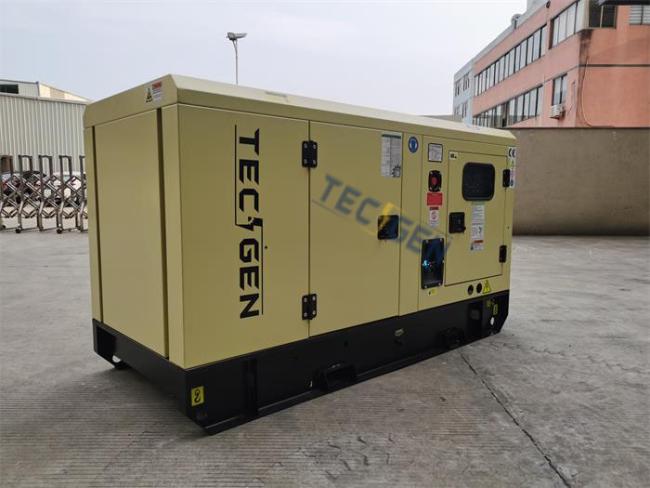

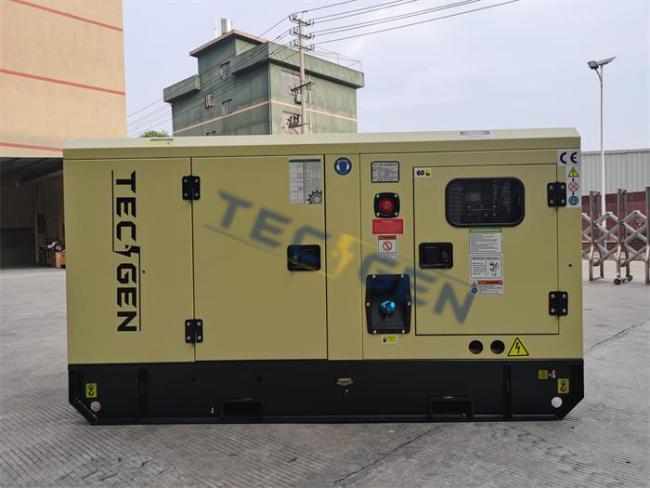

53kVA Perkins diesel generators 60Hz soundproof Perkins generator set with ats
Product Description: Perkins Diesel Generator Set - TG58PSD6
Standard Features:
- Model: TG58PSD6, a silent type generator set designed for optimal performance and minimal noise output.
- Voltage options: 440V, 415V, 400V, 380V, 230V, 220V, and 110V to cater to various power requirements.
- Operating frequency: 60Hz, ensuring stable power output.
- Engine speed: 1800rpm, maintaining efficient and reliable operation.
- Power factor: 0.8, optimizing the generator's efficiency.
Key Features:
- Perkins diesel engine: Reliable and durable, providing long-lasting power.
- Leroy Somer alternator: High-quality alternator ensures stable and efficient power output.
- DEIF controller: Automatic main failure detection and advanced control functions for seamless operation.
- Silent design: Reduces noise levels, making it suitable for a wide range of applications.
53kVA Soundproof Perkins Generator Set Specifications:
| Soundproof Perkins Generator Set Technical Datasheets | ||||||
| Genset model | TG58PSD6 | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 69.5A | |||||
| Prime Power | 42kW / 53kVA | |||||
| Standby Power | 46kW / 58kVA | |||||
| Engine | Brand | Perkins | ||||
| Model | 1103A-33TG1 | |||||
| Alternator | Brand | Leroy Somer | ||||
| Model | TAL-A42-F | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 1300kgs | |||||
| Genset Dimensions | L2250 * W 1050 * 1300 | |||||
| Perkins Diesel Engine Data | ||||||
| Brand | Perkins | |||||
| Engine Model | 1103A-33TG1 | |||||
| Number of Cylinders | 3 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged | |||||
| Displacement | 3.3L | |||||
| Compression ratio | 17.25:1 | |||||
| Bore×Stroke | 105*127mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 50.5kW | |||||
| Standby Power | 55.6kW | |||||
| Speed Governor | Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 210g/kwh@1800rpm | |||||
| Leroy Somer Alternator Data | ||||||
| Brand | Leroy Somer | |||||
| Model | TAL-A42-F | |||||
| Frequency/speed | 60HZ/1800RPM | |||||
| Rate Output | 42kw | |||||
| No. of Phase | 3 Phase, 4 Wire or 12 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
The Perkins diesel generator set is suitable for a variety of applications, including industrial, commercial, and residential use. It can be used as a primary or standby power source to ensure uninterrupted power supply in case of power outages or failures.
Advantages:
- High power output: Up to 42kW prime power and 46kW standby power, satisfying most power needs.
- Turbocharged engine: Delivers maximum performance and efficiency.
- Forced water cooling system: Ensures optimal engine temperature for longer lifespan.
- Easy to maintain: User-friendly design and access to critical components make maintenance a breeze.
Options:
Customers can choose from a range of options, including different voltage configurations, additional protection features, and customization options to suit their specific needs.
FAQ:
- Q: What is the warranty period for the Perkins diesel generator set?
A: The warranty period depends on the specific agreement and can be negotiated with our sales team. - Q: Is it possible to customize the generator set to meet my specific requirements?
A: Yes, we offer customization options to suit your unique needs. Please contact our sales team for more details. - Q: How noisy is the silent type generator set?
A: The silent design significantly reduces noise levels, making it suitable for most environments. Exact noise levels can be provided upon request.
