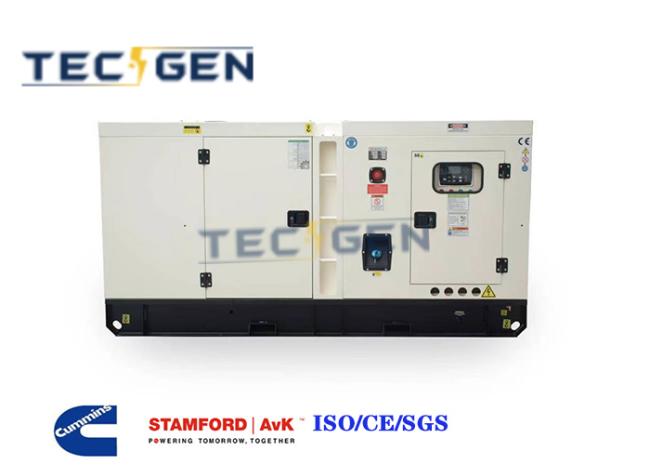

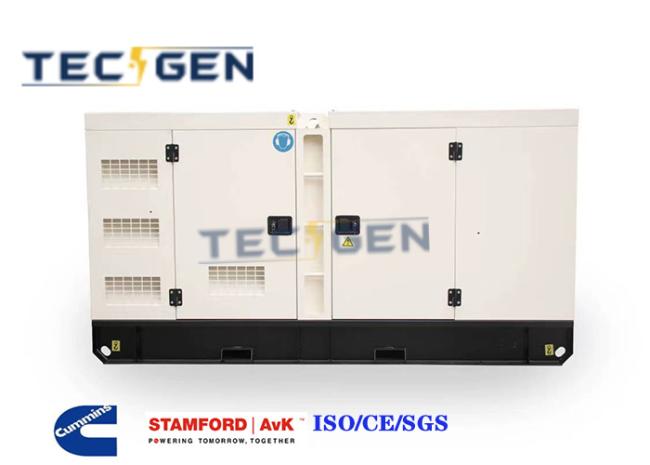

60Hz Cummins Diesel Powered Generator 40kW Silent Diesel Genset With Soundfproof Canopy
Price:
4900$ - 5366$
MOQ:
1 unit
Delivery Time:
15 Days
Brand:
Tecgen Power
Product Description
60Hz Cummins diesel powered generator 40kW silent diesel genset with soundfproof canopy
Standard Features
- Powerful Engine: Equipped with a Cummins 4BT3.9-G2 diesel engine, renowned for its durability and efficiency.
- Multi-Voltage Output: Supports 480V, 440V, 240V, 230V, 220V, and 110V to cater to various applications.
- Silent Operation: Engineered for minimal noise output, ensuring a quiet working environment.
- Forced Water Cooling: Ensures optimal engine temperature, extending the generator's lifespan.
- Automatic Voltage Regulation (AVR): Maintains stable voltage output for sensitive equipment.
Key Features
- 60Hz Frequency: Ideal for North American and other 60Hz applications.
- Turbocharged Engine: Provides superior power and torque for demanding workloads.
- High-Grade Materials: Constructed with durable materials for long-lasting performance.
- Easy Start System: DC motor starting system for quick and reliable start-up.
- Energy Efficient: Low fuel consumption ensures cost-effective operation.
60Hz Cummins Diesel Powered Generator Specifications:
| 60Hz Cummins Diesel Powered Generator Technical Datasheets | ||||||
| Genset model | TG55CSD6 | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 480V//440V/240V/230V/220V/110V | |||||
| Frequency | 60Hz | |||||
| Speed | 1800rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 69.6A | |||||
| Prime Power | 40kW / 50kVA | |||||
| Standby Power | 44kW / 55kVA | |||||
| Engine | Brand | DCEC Cummins | ||||
| Model | 4BT3.9-G2 | |||||
| Alternator | Brand | Copy Stamford | ||||
| Model | TGI224S40 | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 1230kgs | |||||
| Genset Dimensions | L2480 * W 1000 * 1400 | |||||
| DCEC Cummins Diesel Engine Data | ||||||
| Brand | Dongfeng Cummins Engine Co., Ltd | |||||
| Engine Model | 4BT3.9-G2 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged | |||||
| Displacement | 3.9L | |||||
| Compression ratio | 18:1 | |||||
| Bore×Stroke | 102*120mm | |||||
| Speed | 1800rpm | |||||
| Prime Power | 40kW | |||||
| Standby Power | 44kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 214g/kwh@1800rpm | |||||
| Copy Stamford Alternator Data | ||||||
| Brand | Copy Stamford | |||||
| Model | TGI224S40 | |||||
| Frequency/speed | 60HZ/1800RPM | |||||
| Rate Output | 40kW | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage
This 60Hz diesel powered generator is suitable for a wide range of applications, including construction sites, industrial facilities, emergency backup power, and more. Its versatile voltage options and powerful engine make it a reliable choice for various needs.
Advantages
- Brand Reliability: Cummins engines are known for their robust build and dependability.
- Versatile Voltage Options: Supports multiple voltage standards, making it suitable for global use.
- Low Maintenance: Sturdy construction and efficient cooling system minimize maintenance requirements.
- Environment-Friendly: Low emissions and efficient fuel consumption contribute to a greener footprint.
Options
- Customization: Custom voltage configurations and additional features available upon request.
- Extended Warranty: Extended warranty options for enhanced peace of mind.
- Accessories: Comprehensive range of accessories, including cables, connectors, and more.
FAQs
- Q: What is the maximum power output of this generator?
- A: The prime power output is 40kW, and standby power is 44kW.
- Q: Is it suitable for continuous operation?
- A: Yes, it is designed for reliable continuous operation.
- Q: What is the noise level?
- A: It is engineered for silent operation, minimizing noise disruption.
