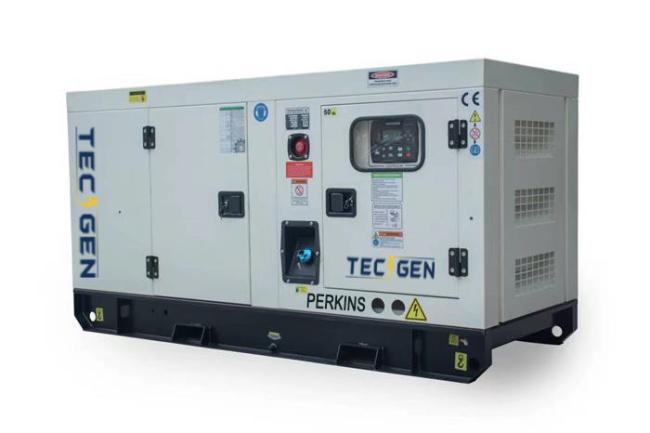

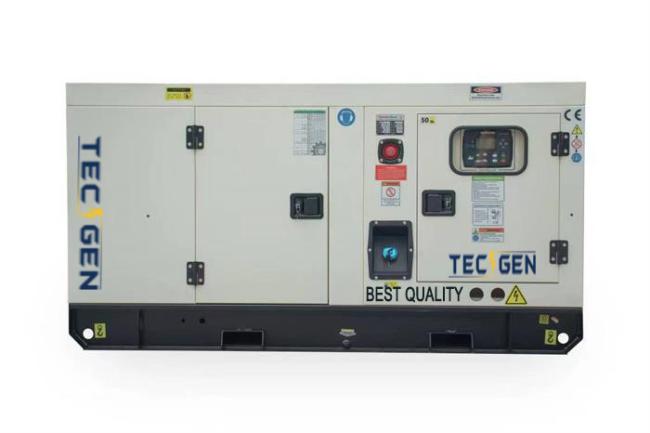

3 Cylinders 10kW Perkins Diesel Engine Genset Silent Diesel Generator With Soundproof Canopy
3 Cylinders 10kW Perkins diesel engine genset silent diesel generator with soundproof canopy
Standard Features
The 3 Cylinders 10kW Perkins Diesel Engine Genset is a robust and reliable power source. It comes equipped with a Perkins diesel engine, renowned for its durability and performance. Other standard features include a high-efficiency alternator, ensuring stable power output.
Key Features
- Powerful Engine: The Perkins diesel engine, with its 3-cylinder design, delivers 10kW of reliable power.
- Efficient Alternator: Ensures stable and clean power output, ideal for sensitive equipment.
- Compact Design: Perfect for space-constrained applications.
- Low Noise: Operation is quiet, with a noise level of 70dB(A) @7m.
3 Cylinders 10kW Perkins Diesel Engine Genset Specifications:
| 3 Cylinders 10kW Perkins Diesel Engine Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG14PS | 403A-15G1 | TAL-A40-C | DEIF SGC-420 | 10kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 10kW Perkins Diesel Engine Generator Set | |||||
| Engine Model | 403A-15G1 | ||||
| Alternator Mode | TAL-A40-C | ||||
| Rated Output | 10kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 19.0A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 640KGS | ||||
| Genset size | L1900 * W730 * H1100mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 10kW Perkins Diesel Engine Generator Set | |||||
| Manufacture | Perkins (Wuxi) | ||||
| Model | 403A-15G1 | ||||
| Rated Output/Speed | 12.2KW/1500RPM | ||||
| Standby Output/Speed | 13.5KW/1500RPM | ||||
| Aspiration | Naturally aspirated | ||||
| Speed Governor | MECH or Electric | ||||
| Engine Type | 3 cylinders in line | ||||
| Bore X Stroke | 84*90mm | ||||
| Displacement | 1.496 L | ||||
| Compression ratio | 22.5:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 3.7 L / h | ||||
| Fuel Consumption/standby output | 4.1 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 10kW Perkins Diesel Engine Generator Set | |||||
| Alternator Model | TAL-A40-C | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 10kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 10kW Perkins Diesel Engine Generator Set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage
The Perkins generator Set is suitable for a wide range of applications, including emergency backup power, construction sites, and events. Whether you need a reliable power source for your business or personal use, this genset is a great choice.
Advantage
- Perkins Reliability: The Perkins diesel engine is built to last, providing years of dependable service.
- Efficient Operation: The 10kW output and high-efficiency alternator ensure maximum efficiency.
- Easy Maintenance: Well-designed service layout and accessible components make maintenance quick and easy.
Options
We offer a range of optional extras to customize your Perkins generator Set, including integrated fuel tanks, ATS (Automatic Transfer Switch), and extended warranties.
FAQs
- Q: What is the noise level of this genset?
A: The noise level is 70dB(A) @7m. - Q: How reliable is the Perkins diesel engine?
A: The Perkins diesel engine is built to last, providing years of dependable service. - Q: Can I customize this genset?
A: Yes, we offer a range of optional extras to customize your Perkins generator Set.
