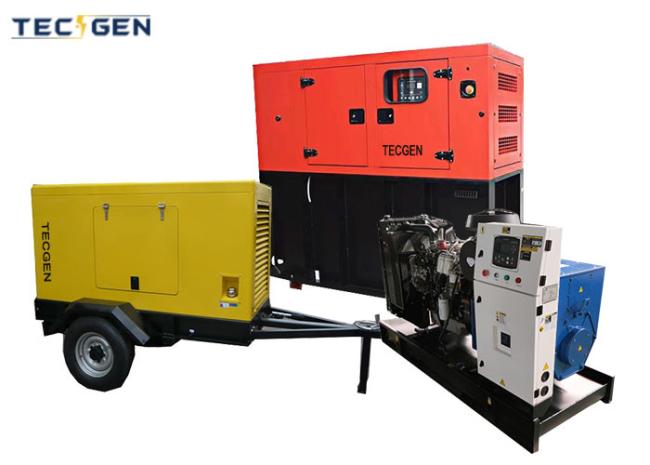

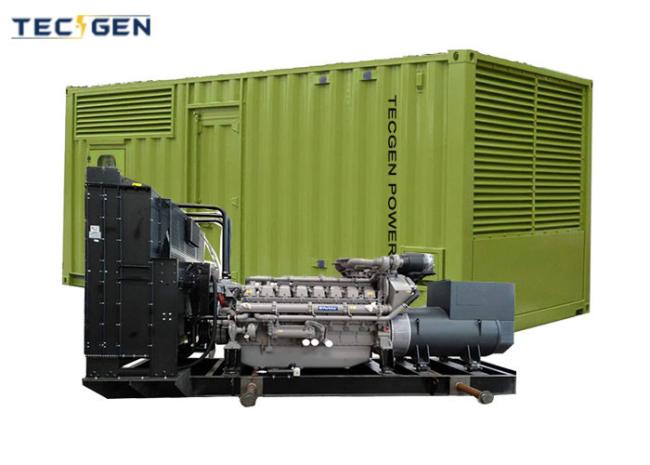

China Made Perkins Genset AC Diesel Generator 7kW To 1800 kW For Continuous Use
China made Perkins genset AC diesel generator power range from 7kW to 1800kW for continuous use
Product Description: China Made Perkins Genset - Premium AC Diesel Generator
Standard Features:
Introducing our flagship product, the China Made Perkins Genset, an AC diesel generator that redefines reliability and efficiency in power generation. Equipped with a robust Perkins engine, renowned for its durability and fuel-efficiency, this generator ensures uninterrupted power supply for a wide range of applications. Standard features include a digital control panel for easy monitoring and operation, automatic voltage regulation to maintain stable output, and a low-oil shutdown system to prevent engine damage. The compact design and heavy-duty steel frame ensure portability and durability, making it the ideal choice for both industrial and residential use.
Key Features:
- Perkins Engine: Powered by a genuine Perkins diesel engine, renowned for its high-performance and low maintenance requirements.
- AC Output: Delivers clean and stable AC power, suitable for powering sensitive electronics and appliances.
- Automatic Voltage Regulation (AVR): Ensures a constant output voltage, protecting your equipment from voltage fluctuations.
- Digital Control Panel: User-friendly interface for monitoring engine status, fuel level, and output voltage.
- Low-Oil Shutdown: Prevents engine damage by automatically shutting down the generator when oil levels are low.
- Noise Reduction Technology: Equipped with advanced sound-dampening materials, minimizing operational noise for a quieter environment.
Perkins Series Diesel Generator Datasheets:
| FEATURE Power Range: 7KW-1800KW ( 9KVA-2250KVA) Model: Open Type / Silent Type/ Super Silent Type Engine: PERKINS Speed: 1500/1800rpm Alterantor: Stamford/Leroy Somer/Marathon/Mecc Alte/TECGEN IP & Insulation Class: IP22-23 & F/H Frequency: 50/60Hz Controller: Deepsea/Smartgen/DEIF/Comap/Mebay/DATAKOM/Others ATS System: AISIKAI/Others |
||||||||||||
| PERKINS Series | ||||||||||||
| Diesel Generator Set Techinical Specification ( 50Hz ) | ||||||||||||
| Genset Model | Genset Prime Power |
Genset Standby Power |
Engine Model | Engine Max Power |
Cylinders | Governor | Alternator Model | Fuel Consumption | Dimension (LxWxH) mm | |||
| KVA | KW | KVA | KW | KW | L/H | Open Type | Silent Type | |||||
| TG10P | 9 | 7 | 10 | 8 | 403D-11G | 9 | 3L | MECH | TGI164S7 | 2.9 | 1300x700x1100 | 1700x850x1120 |
| TG14P | 13 | 10 | 14 | 11 | 403A-15G1 | 14 | 3L | MECH | TGI164S10 | 3.7 | 1300x700x1100 | 1700x850x1120 |
| TG17P | 15 | 12 | 17 | 13 | 403A-15G2 | 15 | 3L | MECH | TGI164S12 | 5.0 | 1300x700x1100 | 1700x850x1120 |
| TG22P | 20 | 16 | 22 | 18 | 404A-22G1 | 21 | 4L | MECH | TGI184S16 | 5.3 | 1350x700x1100 | 1950x900x1150 |
| TG30P | 28 | 22 | 30 | 24 | 404D-22TG | 28 | 4L | ELECTRIC | TGI184S22 | 7.1 | 1350x700x1100 | 1950x900x1150 |
| TG33P | 30 | 24 | 33 | 26 | 1103A-33G | 30 | 3L | MECH | TGI184S24 | 7.1 | 1600x760x1250 | 2100x950x1200 |
| TG50P | 45 | 36 | 50 | 40 | 1103A-33TG1 | 46 | 3L | MECH | TGI224S36 | 10.7 | 1650x760x1250 | 2250x1000x1300 |
| TG66P | 60 | 48 | 66 | 53 | 1103A-33TG2 | 59 | 3L | MECH | TGI224S48 | 13.9 | 1750x760x1250 | 2250x1000x1300 |
| TG72P | 65 | 52 | 72 | 57 | 1104A-44TG1 | 66 | 4L | MECH | TGI224S52 | 14.8 | 1750x760x1250 | 2300x950x1450 |
| TG88P | 80 | 64 | 88 | 70 | 1104A-44TG2 | 81 | 4L | MECH | TGI224S64 | 18.7 | 2000x900x1500 | 2500x1100x1450 |
| TG110P | 100 | 80 | 110 | 88 | 1104C-44TAG2 | 75 | 4L | ELECTRIC | TGI274S80 | 18.6 | 2100x900x1500 | 2600x1100x1450 |
| TG149P | 135 | 108 | 149 | 119 | 1106A-70TG1 | 136 | 6L | MECH | TGI274S108 | 30.2 | 2400x980x1650 | 2900x1100x1600 |
| TG165P | 150 | 120 | 165 | 132 | 1106A-70TAG2 | 154 | 6L | MECH | TGI274S120 | 33.4 | 2500x980x1650 | 3000x1100x1700 |
| TG198P | 180 | 144 | 198 | 158 | 1106A-70TAG3 | 180 | 6L | MECH | TGI274S144 | 35.0 | 2500x980x1650 | 3200x1100x1800 |
| TG220P | 200 | 160 | 220 | 176 | 1106A-70TAG4 | 200 | 6L | ELECTRIC | TGI274S160 | 38.0 | 2550x980x1650 | 3400x1100x1800 |
| TG248P | 225 | 180 | 248 | 198 | 1206A-E70TTAG2 | 225 | 6L | ELECTRIC | TGI274S180 | 51.0 | 2700x1100x1700 | 3900x1600x2200 |
| TG275P | 250 | 200 | 275 | 220 | 1206A-E70TTAG3 | 249 | 6L | ELECTRIC | TGI274S200 | 56.9 | 2700x1100x1700 | 3900x1600x2200 |
| TG275P | 250 | 200 | 275 | 220 | 1506A-E88TAG3 | 267 | 6L | ELECTRIC | TGI274S200 | 60.0 | 2800x1100x1700 | 3900x1600x2200 |
| TG330P | 300 | 240 | 330 | 264 | 1506A-E88TAG5 | 293 | 6L | ELECTRIC | TGI314S240 | 65.0 | 2800x1100x1700 | 3900x1600x2200 |
| TG385P | 350 | 280 | 385 | 308 | 2206C-E13TAG2 | 353 | 6L | ELECTRIC | TGI314S280 | 70.6 | 3450x1100x1800 | 4200x1600x2200 |
| TG440P | 400 | 320 | 440 | 352 | 2206C-E13TAG3 | 396 | 6L | ELECTRIC | TGI314S320 | 81.1 | 3450x1100x1800 | 4500x1600x2200 |
| TG495P | 450 | 360 | 495 | 396 | 2506C-E15TAG1 | 459 | 6L | ELECTRIC | TGI354S360 | 95.0 | 3450x1100x1900 | 4500x1800x2200 |
| TG550P | 500 | 400 | 550 | 440 | 2506C-E15TAG2 | 503 | 6L | ELECTRIC | TGI354S400 | 105.0 | 3450x1100x1900 | 4500x1800x2200 |
| TG660P | 600 | 480 | 660 | 528 | 2806C-E18TAG1A | 558 | 6L | ELECTRIC | TGI354S480 | 118.2 | 3550x1200x1900 | 4800x1800x2200 |
| TG715P | 650 | 520 | 715 | 572 | 2806A-E18TAG2 | 642 | 6L | ELECTRIC | TGI354S520 | 132.0 | 3650x1200x1900 | 4800x1800x2200 |
| TG825P | 750 | 600 | 825 | 660 | 4006-23TAG2A | 702 | 6L | ELECTRIC | TGI404S600 | 155.0 | 4100x1600x2200 | ISO 20GP |
| TG880P | 800 | 640 | 880 | 704 | 4006-23TAG3A | 785 | 6L | ELECTRIC | TGI404S640 | 165.0 | 4100x1600x2200 | ISO 20GP |
| TG990P | 900 | 720 | 990 | 792 | 4008TAG1A | 885 | 8L | ELECTRIC | TGI404S720 | 206.0 | 4580x1600x2200 | ISO 20GP |
| TG1100P | 1000 | 800 | 1100 | 880 | 4008TAG2A | 985 | 8L | ELECTRIC | TGI404S800 | 206.0 | 4580x1600x2200 | ISO 20GP |
| TG1238P | 1125 | 900 | 1238 | 990 | 4008-30TAG3 | 1042 | 8L | ELECTRIC | TGI404S900 | 206.0 | 4580x1600x2200 | ISO 20GP |
| TG1375P | 1250 | 1000 | 1375 | 1100 | 4012-46TWG2A | 1217 | 12V | ELECTRIC | TGI404S1000 | 265.0 | 5000x2100x2400 | ISO 40HQ |
| TG1485P | 1350 | 1080 | 1485 | 1188 | 4012-46TWG3A | 1224 | 12V | ELECTRIC | TGI454S1080 | 258.0 | 5000x2100x2400 | ISO 40HQ |
| TG1650P | 1500 | 1200 | 1650 | 1320 | 4012-46TAG2A | 1422 | 12V | ELECTRIC | TGI454S1200 | 306.0 | 5200x2100x2400 | ISO 40HQ |
| TG1815P | 1650 | 1320 | 1815 | 1452 | 4012-46TAG3A | 1500 | 12V | ELECTRIC | TGI454S1320 | 330.0 | 5200x2100x2400 | ISO 40HQ |
| TG1876P | 1705 | 1364 | 1876 | 1500 | 4012-46TAG3A | 1500 | 12V | ELECTRIC | TGI454S1364 | 330.0 | 5200x2100x2400 | ISO 40HQ |
| TG2030P | 1845 | 1476 | 2030 | 1624 | 4016TAG1A | 1741 | 16V | ELECTRIC | TGI454S1476 | 383.0 | 5400x2150x2500 | ISO 40HQ |
| TG2255P | 2050 | 1640 | 2255 | 1804 | 4016TAG2A | 1981 | 16V | ELECTRIC | TGI454S1640 | 434.0 | 5600x2150x2500 | ISO 40HQ |
| TG2475P | 2250 | 1800 | 2475 | 1980 | 4016-61TRG3 | 2173 | 16V | ELECTRIC | TGI454S1800 | 470.0 | 5600x2150x2500 | ISO 40HQ |
Usage:
The China Made Perkins Genset is versatile and can be used in various settings, from powering homes during power outages to serving as a primary or backup power source for small businesses, construction sites, and remote locations. Its AC diesel generator capabilities make it ideal for powering electrical tools, lighting, HVAC systems, and more. With its easy-to-use controls and robust construction, it's the perfect solution for those seeking reliable and cost-effective power generation.
Advantages:
- Cost-Effective: China-made quality without compromising on performance, offering exceptional value for money.
- Durability: Built to last, with high-quality components and materials that withstand harsh conditions.
- Fuel Efficiency: The Perkins engine is designed for optimal fuel consumption, reducing operational costs.
- Portability: Compact design and optional wheels make it easy to transport and set up in different locations.
- Eco-Friendly: Low emissions and fuel efficiency contribute to a greener environment.
Options:
- Multiple Power Outputs: Choose from a range of kW ratings to suit your specific power requirements.
- Extended Warranty: Upgrade to an extended warranty plan for added peace of mind.
- Customized Paint Job: Personalize your generator with a custom paint job to match your brand or environment.
- Automatic Transfer Switch: For seamless transition between grid power and generator power.
FAQs:
Q: Is the Perkins engine genuine?
A: Yes, our China Made Perkins Genset is equipped with an authentic Perkins diesel engine, ensuring superior performance and reliability.
Q: How long does it take for the generator to start?
A: The generator starts quickly, typically within seconds of turning the ignition key, thanks to its efficient starting system.
Q: Can I use it for sensitive electronics?
A: Absolutely, with its automatic voltage regulation feature, the China Made Perkins Genset provides clean and stable AC power, safe for powering sensitive electronics.
Q: What maintenance is required?
A: Regular maintenance, such as checking oil levels, air filters, and spark plugs, is recommended to keep your generator running smoothly. Our user manual provides detailed maintenance instructions.
Experience the power of reliability and efficiency with the China Made Perkins Genset, your trusted AC diesel generator for all your power needs. Order now and enjoy the peace of mind that comes with having a dependable power source at your fingertips.
