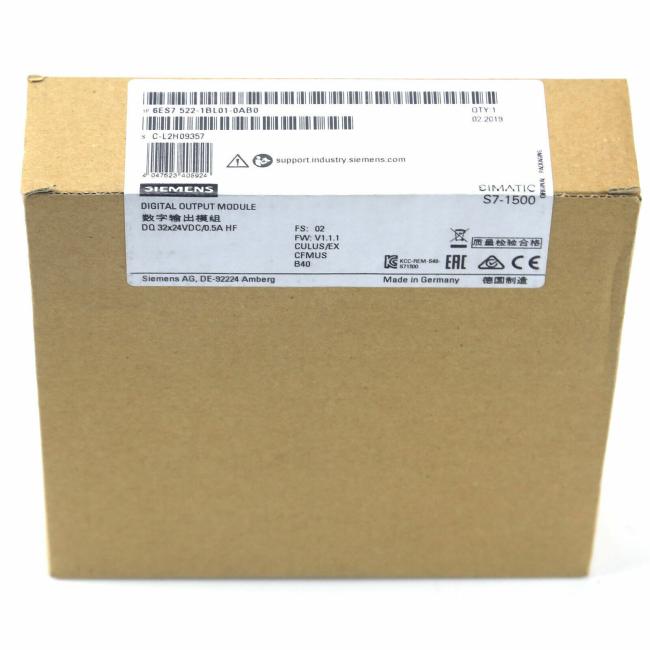

SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 SINGLE-CHANNEL
SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 SINGLE-CHANNEL
Product Introduction:
The SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 is a digital output module designed for the SIEMENS SIMATIC S7-1500 series. It features 32 digital output channels capable of handling outputs at 24VDC with a maximum current of 0.5A per channel. The module operates on a single-channel basis, offering individual control for each output.
Product Information and Specifications:
- Model: DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0
The DQ 32X24VDC/0.5A ST module provides 32 digital output channels designed to handle outputs operating at 24VDC. Each channel can deliver a maximum current of 0.5A. This module operates on a single-channel basis, meaning each output can be independently controlled and monitored.
Product Attributes:
- Model: DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0
- Digital Outputs: 32 channels
- Output Voltage: 24VDC
- Maximum Current: 0.5A per channel
- Operation Mode: Single-channel (individual control for each output)
In summary, the SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 is a digital output module with 32 channels designed for outputs operating at 24VDC. Each channel can deliver a maximum current of 0.5A. The module operates on a single-channel basis, allowing for individual control and monitoring of each output. It is suitable for industrial applications where precise and independent control of electrical outputs at 24VDC with a maximum current of 0.5A per channel is required.
| Product | |||||
| Article Number (Market Facing Number) | 6ES7522-1BL01-0AB0 | ||||
| Product Description | SIMATIC S7-1500, digital output module DQ 32x24V DC/0.5A HF; 32 channels in groups of 8; 4 A per group; single-channel diagnostics; substitute value, switching cycle counter for connected actuators. the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw terminals or push-in) to be ordered separately | ||||
| Product family | SM 522 digital output modules | ||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||
| Price data | |||||
| Region Specific PriceGroup / Headquarter Price Group | 219 / 219 | ||||
| List Price | Show prices | ||||
| Customer Price | Show prices | ||||
| Surcharge for Raw Materials | None | ||||
| Metal Factor | None | ||||
| Delivery information | |||||
| Export Control Regulations | AL : N / ECCN : 9N9999 | ||||
| Estimated dispatch time (Working Days) | 1 Day/Days | ||||
| Net Weight (kg) | 0,321 Kg | ||||
| Packaging Dimension | 15,10 x 15,40 x 4,70 | ||||
| Package size unit of measure | CM | ||||
| Quantity Unit | 1 Piece | ||||
| Packaging Quantity | 1 | ||||
| Additional Product Information | |||||
| EAN | 4047623405924 | ||||
| UPC | 804766234446 | ||||
| Commodity Code | 85389091 | ||||
| LKZ_FDB/ CatalogID | ST73 | ||||
| Product Group | 4501 | ||||
| Group Code | R151 | ||||
| Country of origin | Germany | ||||
| Compliance with the substance restrictions according to RoHS directive | Since: 13.11.2015 | ||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
||||
| SCIP number | cdfd47a6-ce55-49c0-95cb-ca56dd2d1ad6 | ||||
| Classifications | |||||
