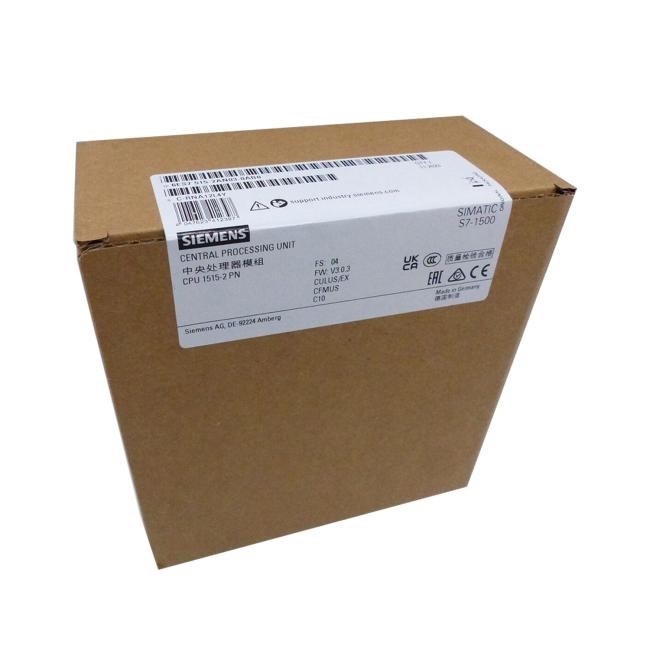

SIEMENS 6ES7515-2AN03-0AB0 SIMATIC MEMORY CARD REQUIRED *** APPROVALS AND CERTIFICATES ACCORDING TO ENTRY
SIEMENS 6ES7515-2AN03-0AB0 SIMATIC MEMORY CARD REQUIRED *** APPROVALS AND CERTIFICATES ACCORDING TO ENTRY
The SIEMENS 6ES7515-2AN03-0AB0 is a central processing unit (CPU) that is part of the SIMATIC S7-1500 automation system. Here are the key details about this CPU:
SIMATIC Memory Card Required:
- This CPU model requires a SIMATIC memory card to be inserted for operation.
- The memory card provides the storage for the user program, configuration data, and other runtime information.
- This allows the CPU's program and data to be stored and loaded independently from the CPU hardware.
Approvals and Certificates:
- This CPU has approvals and certifications according to the relevant entry.
- This ensures the CPU meets the necessary safety, electromagnetic compatibility, and other regulatory requirements for industrial automation applications.
Other Features:
- Work Memory: 500 KB for program and 3 MB for data
- High-performance CPU for fast program execution
- PROFINET interfaces with integrated 2-port switch
- Supports PROFINET IRT (Isochronous Real-Time) communication
- Part of the modular SIMATIC S7-1500 system
- Programmed using the STEP 7 engineering software
The requirement for a SIMATIC memory card and the specific approvals/certifications distinguish this CPU model from other variants in the SIMATIC S7-1500 series. These features ensure the CPU can be used in applications that require secure data storage and compliance with industry standards.
| General information | ||
| Product type designation | CPU 1515-2 PN | |
| HW functional status | FS04 | |
| Firmware version | V3.1 | |
| ● FW update possible | Yes | |
| Product function | ||
| ● I&M data | Yes; I&M0 to I&M3 | |
| ● Isochronous mode | Yes; Distributed and central; with minimum OB 6x cycle of 375 µs (distributed) and 1 ms (central) | |
| ● SysLog | Yes | |
| Engineering with | ||
| ● STEP 7 TIA Portal configurable/integrated from version | V19 (FW V3.1) / V18 (FW V3.0) or higher; with older TIA Portal versions configurable as 6ES7515-2AM02-0AB0 | |
| Configuration control | ||
| via dataset | Yes | |
| Display | ||
| Screen diagonal [cm] | 6.1 cm | |
| Control elements | ||
| Number of keys | 8 | |
| Mode buttons | 2 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Mains buffering | ||
| ● Mains/voltage failure stored energy time | 5 ms | |
| Input current | ||
| Current consumption (rated value) | 0.65 A | |
| Current consumption, max. | 1.03 A | |
| Inrush current, max. | 1.15 A; Rated value | |
| I²t | 0.6 A²·s | |
| Power | ||
| Infeed power to the backplane bus | 12 W | |
| Power consumption from the backplane bus (balanced) | 6.2 W | |
| Power loss | ||
| Power loss, typ. | 3.6 W | |
| Memory | ||
| Number of slots for SIMATIC memory card | 1 | |
| SIMATIC memory card required | Yes | |
| Work memory | ||
| ● integrated (for program) | 1 Mbyte | |
| ● integrated (for data) | 4.5 Mbyte | |
| Load memory | ||
| ● Plug-in (SIMATIC Memory Card), max. | 32 Gbyte | |
| Backup | ||
| ● maintenance-free | Yes | |
| CPU processing times | ||
| for bit operations, typ. | 6 ns | |
| for word operations, typ. | 7 ns | |
| for fixed point arithmetic, typ. | 9 ns | |
| for floating point arithmetic, typ. | 37 ns | |
| CPU-blocks | ||
| Number of elements (total) | 8 000; Blocks (OB, FB, FC, DB) and UDTs | |
| DB | ||
| ● Number range | 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999 | |
| ● Size, max. | 4.5 Mbyte; For DBs with absolute addressing, the max. size is 64 KB | |
| FB | ||
| ● Number range | 0 ... 65 535 | |
| ● Size, max. | 1 Mbyte | |
| FC | ||
| ● Number range | 0 ... 65 535 | |
| ● Size, max. | 1 Mbyte | |
| OB | ||
| ● Size, max. | 1 Mbyte | |
| ● Number of free cycle OBs | 100 | |
| ● Number of time alarm OBs | 20 | |
| ● Number of delay alarm OBs | 20 | |
| ● Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 250 µs | |
| ● Number of process alarm OBs | 50 | |
| ● Number of DPV1 alarm OBs | 3 | |
| ● Number of isochronous mode OBs | 2 | |
| ● Number of technology synchronous alarm OBs | 2 | |
| ● Number of startup OBs | 100 | |
| ● Number of asynchronous error OBs | 4 | |
| ● Number of synchronous error OBs | 2 | |
| ● Number of diagnostic alarm OBs | 1 | |
