YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
15kw 18.75KVA Yuchai silent diesel Generator

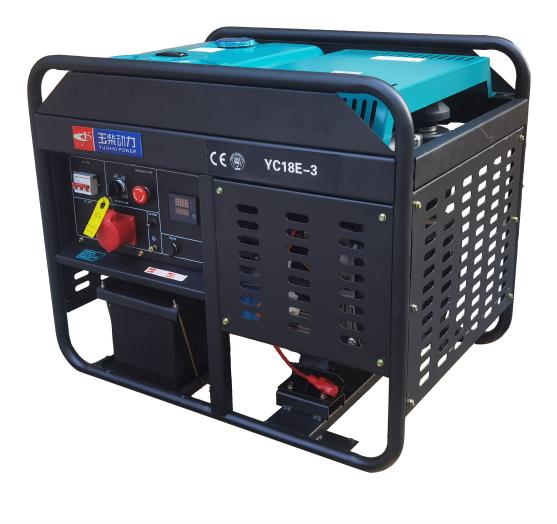

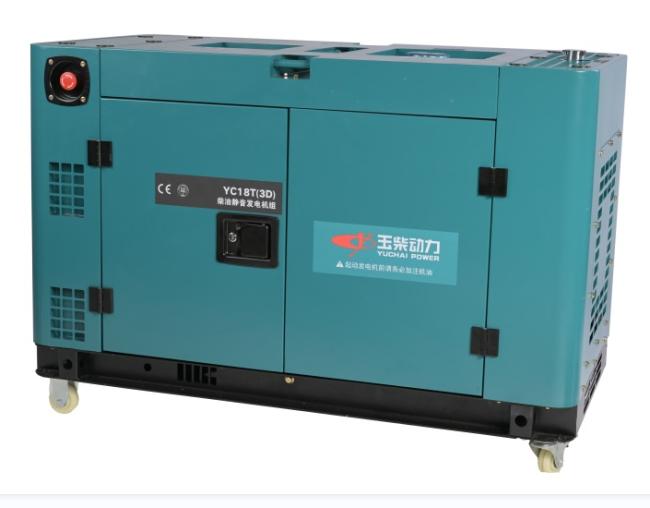

| Model number | YC18E-3 | YC18T-3 |
| Brand | yuchai | yuchai |
| Picture |  |
 |
| Rated frequency (HZ) | 50 | 50 |
| Rated voltage (V) | 380 | 380 |
| Rated current (A) | 28.5 | 28.5 |
| Rated power (KW) | 15 | 15 |
| Rated power (Kva) | 18.8 | 18.8 |
| Maximum power (Kva) | 20 | 20 |
| Power factor (Cos Φ) | 0.8 | 0.8 |
| Phase number | Three Phase | Three Phase |
| Size (mm) | 950*680*780 | 1257*670*780 |
| Weight (KG) | 280 | 345 |
| Tank capacity (L) | 26 | 25 |
| Noise (separate @7 m) | 85 | 75 |
| Engine type | YC292FE | YC292FE |
| Form | V-type two-cylinder, four-stroke, air-cooled,turbo charger | V-type two-cylinder, four-stroke, air-cooled,turbo charger |
| Structure type | open type | Silent type |
| Suction mode | turbo charger | turbo charger |
| Speed regulation mode | Machinery | Machinery |
| Cylinder diameter (mm) | 92 | 92 |
| Piston path (mm) | 75 | 75 |
| Displacement (L) | 0.997 | 0.997 |
| Compressor | 20:1 | 20:1 |
| Fuel consumption rate g/kw·h | 240 | 285 |
| Oil Capacity (L) | 2.75 | 2.75 |
| Rated speed (r/min) | 3000 | 3000 |
| Engine power kw | 18 | 18 |
| Starting mode | Electrical Starting | Electrical Starting |
| Electric machine | pure coppe | pure coppe |
| Motor insulation class | F | F |
| Steady-state speed adjustment (%) | 5 | 5 |
| Temperature rise | 40 | 40 |
| Lubricating oil grade | SAE 10W30 (CD level or above) | SAE 10W30 (CD level or above) |
| Diesel type | 0#(Summer) -10# (Winter) - 35# (cold) | 0#(Summer) -10# (Winter) - 35# (cold) |
| Starting battery capacity | 12V 32AH | 12V 32AH |
| Dc output (V/A) | 12V 8.3A | 12V 8.3A |
| Controller | Hanjing brand | Hanjing brand |
| Disposition | 1. Electric starting (including battery), 2.2V95 diesel engine, 3. Three-hole anti-loose, 4. Including wheels, 5. Wooden paper packaging |
1. Electric starting (including battery), 2.2V95 diesel engine, 3. Three-hole anti-loose, 4. Including wheels, 5. Wooden paper packaging |
Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).
