Portable generator YC6800T-3 5.6KVA Open type diesel generator 4.5KW silent type diesel generator FOR HOME USE 50/60HZ
Price:
Negotiable
MOQ:
1
Delivery Time:
25 working days
Brand:
YLFDJ
Product Description

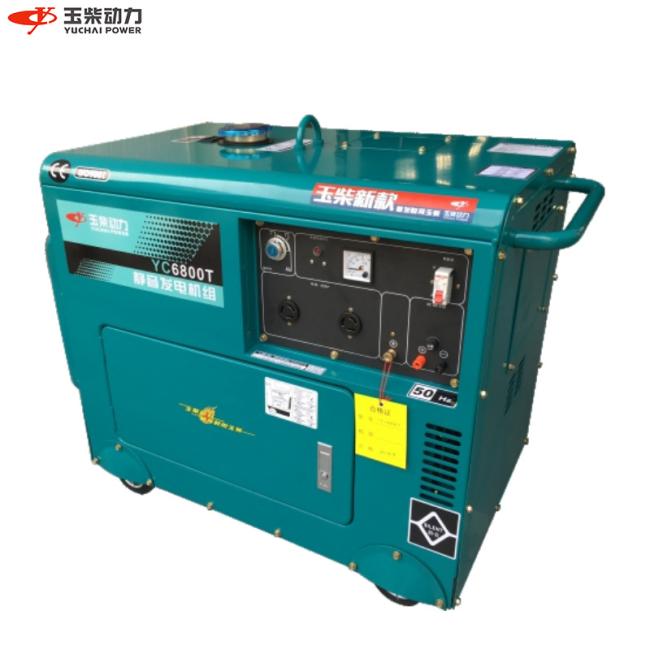

Portable generator YC6800T-3 5.6KVA Open type diesel generator 4.5KW silent type diesel generator FOR HOME USE 50/60HZ
Product Parameter
| Model number | YC6800XE | YC6800XE-3 | YC6800XE-3D | YC6800T | YC6800T -3 | YC6800T -3D |
| Brand | yuchai | yuchai | yuchai | yuchai | yuchai | yuchai |
| Rated frequency (HZ) | 50 | 50 | 50 | 50 | 50 | 50 |
| Rated voltage (V) | 220 | 380 | 220/380 | 220 | 380 | 220/380 |
| Rated current (A) | 22.5 | 7.8 | Single Phase 22.5/ Three Phase7.8 | 22.5 | 8.2 | Single Phase 22.5/ Three Phase8.2 |
| Rated power (KW) | 4.48 | 4.48 | 4.48 | 4.48 | 4.48 | 4.48 |
| 5 | 5 | 5 | 5 | 5 | 5 | |
| Rated power (Kva) | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 |
| Maximum power (Kva) | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 |
| Power factor (Cos Φ) | 1 | 0.8 | 0.8 | 1 | 0.8 | 0.8 |
| Phase number | Single Phase | Three Phase | Single/Three Phase | Single Phase | Three Phase | Single/Three Phase |
| Size (mm) | 720*490*600 | 720*490*600 | 720*490*600 | 860×530×660 | 860×530×660 | 860×530×660 |
| Weight (KG) | 100 | 100 | 100 | 160 | 160 | 160 |
| Tank capacity (L) | 12.5 | 12.5 | 12.5 | 14.5 | 14.5 | 14.5 |
| Noise (separate @7 m) | 85 | 85 | 85 | 75 | 75 | 75 |
| Engine type | YC186FAE | YC186FAE | YC186FAE | YC186FAE | YC186FAE | YC186FAE |
| Form | Single cylinder, four stroke, forced air cooling | Single cylinder, four stroke, forced air cooling | Single cylinder, four stroke, forced air cooling | Single cylinder, four stroke, forced air cooling | Single cylinder, four stroke, forced air cooling | Single cylinder, four stroke, forced air cooling |
| Structure type | open type | open type | open type | Silent type | Silent type | Silent type |
| Suction mode | normally aspirated | normally aspirated | normally aspirated | normally aspirated | normally aspirated | normally aspirated |
| Speed regulation mode | Machinery | Machinery | Machinery | Machinery | Machinery | Machinery |
| Cylinder diameter (mm) | 86 | 86 | 86 | 86 | 86 | 86 |
| Piston path (mm) | 72 | 72 | 72 | 72 | 72 | 72 |
| Displacement (L) | 0.418 | 0.418 | 0.418 | 0.418 | 0.418 | 0.418 |
| Compressor | 19:1 | 19:1 | 19:1 | 19.5:1 | 19.5:1 | 19.5:1 |
| Fuel consumption rate g/kw·h | 280 | 280 | 280 | 275 | 275 | 275 |
| Oil Capacity (L) | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 |
| Rated speed (r/min) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Engine power kw | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 |
| Starting mode | Electrical Starting | Electrical Starting | Electrical Starting | Electrical Starting | Electrical Starting | Electrical Starting |
| Electric machine | pure coppe | pure coppe | pure coppe | pure coppe | pure coppe | pure coppe |
| Motor insulation class | F | F | F | F | F | F |
| Steady-state speed adjustment (%) | 5 | 5 | 5 | 5 | 5 | 5 |
| Temperature rise | 40 | 40 | 40 | 40 | 40 | 40 |
| Lubricating oil grade | SAE 10W30 (CD level or above) | SAE 10W30 (CD level or above) | SAE 10W30 (CD level or above) | SAE 10W30 (CD level or above) | SAE 10W30 (CD level or above) | SAE 10W30 (CD level or above) |
| Diesel type | 0#(Summer) -10# (Winter) - 35# (cold) | 0#(Summer) -10# (Winter) - 35# (cold) | 0#(Summer) -10# (Winter) - 35# (cold) | 0#(Summer) -10# (Winter) - 35# (cold) | 0#(Summer) -10# (Winter) - 35# (cold) | 0#(Summer) -10# (Winter) - 35# (cold) |
| Starting battery capacity | 12V 32AH | 12V 32AH | 12V 32AH | 12V 32AH | 12V 32AH | 12V 32AH |
| Dc output (V/A) | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A | 12V 8.3A |
| Controller | Hanjing brand | Hanjing brand | Hanjing brand | Hanjing brand | Hanjing brand | Hanjing brand |
| Disposition | 1. Electric starting (including battery) 2.186FAE diesel Engine, 3. Three-hole anti-loose, 4.30 Square pipe rack, 5. With arc plate, 6. Single axle, 7. Double handles (two wheels) including carton packing |
1. Electric starting (including battery), 2.186FAE diesel Engine, 3. Three-hole anti-loose, 4.30 Square pipe rack, 5. With arc plate, 6. Single axle, 7. Double handles (two wheels) including carton packing |
1. Electric starting (including battery), 2.186FAE diesel Engine, 3. Three-hole anti-loose, 4.30 Square pipe rack, 5. With arc plate, 5. Single axle, 6. Double handles (two wheels) including carton packing |
1 Electric starting (including battery), 2.186FAE diesel Engine, 3. Three-hole anti-loose, 4. Including wheels, 5. Wooden paper packaging |
1. Electric starting (including battery), 2.186FAE diesel Engine, 3. Three-hole anti-loose, 4. Including wheels, 5. Wooden paper packaging |
1. Electric starting (including battery), 2.186FAE diesel Engine, 3. Three-hole anti-loose, 4. Including wheels, 5. Wooden paper packaging |
| Payment & Delivery Terms | ||
| 1.Minimum Order Quantity: 1 set. | ||
| 2.Packing Details: standard export packing. | ||
| 3.Delivery Time: 15-20 working days after receipt of deposit . | ||
| 4.Payment Terms: T/T (50% as deposit,the balance to be paid before delivery) . | ||
| 5.Valid time of the quotation: 30 days. | ||
| 6.The warranty period is one year or 1000 hours( First come is valid.) | ||
| Attachment list | ||
| 1.Fuel connecting pipes | ||
| 2.12V DC battery c/w battery cables 2 sets | ||
| 3.Industrial type silencer c/w stainless steel flexible exhaust bellows | ||
| 4.The tool kit and 1 set of manuals (English version). |
| FAQ |
| Q: What is your MOQ of this item? |
| A: Our MOQ is one set generator,EX factory price.For full container order our price is FOB price. |
| Q: Is it ok to make customers’ own brand name? |
| A: Sure, we can be your OEM manufacturer with your authorization of brand. |
| Q: What are your payment terms? |
| A: 30% T/T deposit, 70% balance before shipment or L/C at sight. |
| Q: How long is your warranty? |
| A: 12months or1000 hours basis on the earlier one. |
| Q: What is the delivery time? |
| A: 15 work days after receiving your T/T deposit or L/C. |
| Q: What is your packing way ? |
| A: Factory standard packing is plastic film, for other packing way should recalculate the packing cost. |
