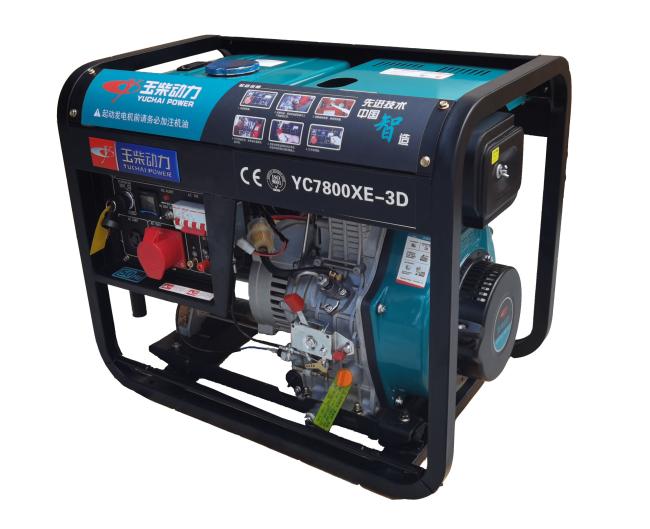

Yuchai Air cooling System 5kw ATS Portable diesel generator set 6KVA Remotable objects for home use open type YC8800XE/-
Price:
Negotiable
MOQ:
1
Delivery Time:
25 working days
Brand:
YLFDJ
Product Description
Yuchai Air cooling System 5kw ATS Portable diesel generator set 6KVA Remotable objects for home use open type YC8800XE/-

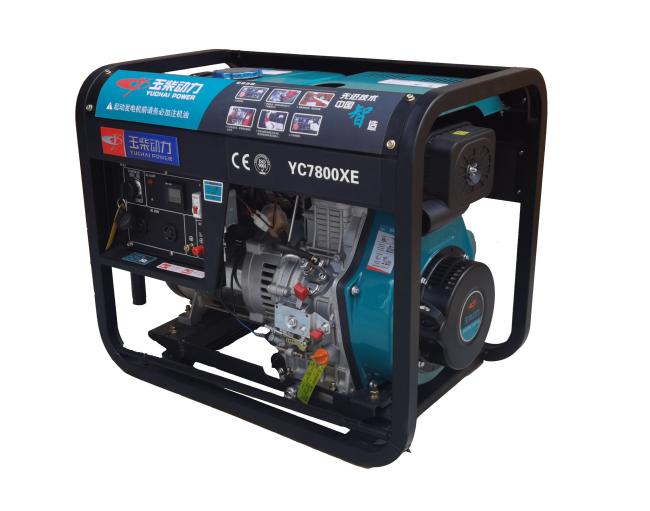

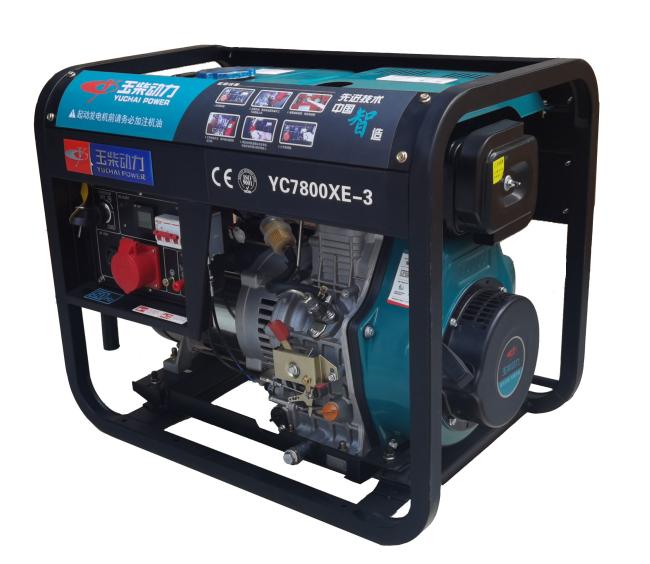

| Model number | YC7800XE | YC7800XE-3 | YC7800XE-3D |
| Brand | yuchai | yuchai | yuchai |
| Rated frequency (HZ) | 50 | 50 | 50 |
| Rated voltage (V) | 220 | 380 | 220/380 |
| Rated current (A) | 24.5 | 8.3 | Single Phase24.5/Three Phase8.3 |
| Rated power (KW) | 5.6 | 5.6 | 5.6 |
| 6 | 6 | 6 | |
| Rated power (Kva) | 7 | 7 | 7 |
| Maximum power (Kva) | 7.5 | 7.5 | 7.5 |
| Power factor (Cos Φ) | 1 | 0.8 | 0.8 |
| Phase number | Single Phase | Three Phase | Single/Three Phase |
| Size (mm) | 720*490*600 | 720*490*600 | 720*490*600 |
| Weight (KG) | 106 | 106 | 106 |

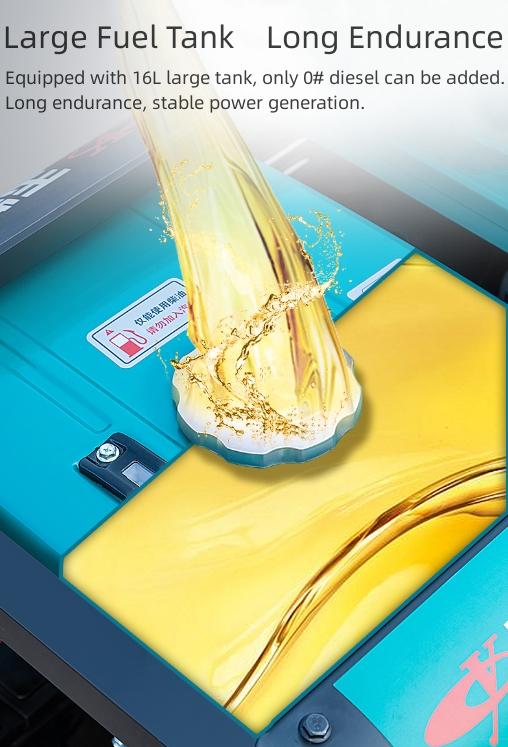

| Tank capacity (L) | 12.5 | 12.5 | 12.5 |

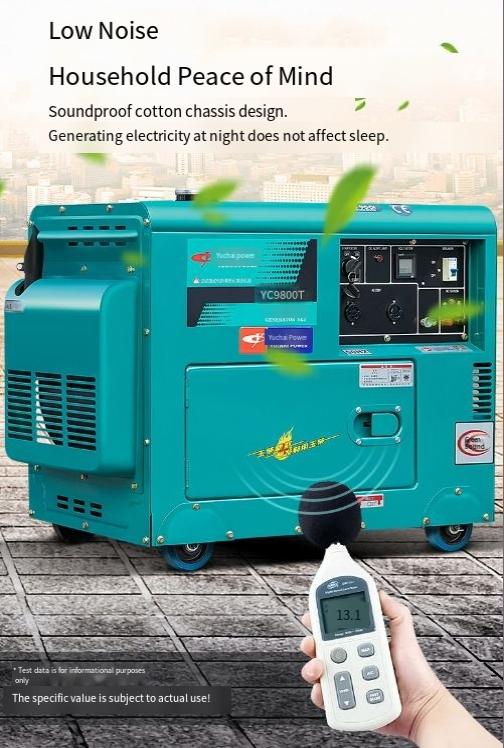

| Noise (separate @7 m) | 85 | 85 | 85 |
| Engine type | YC188FE | YC188FE | YC188FE |

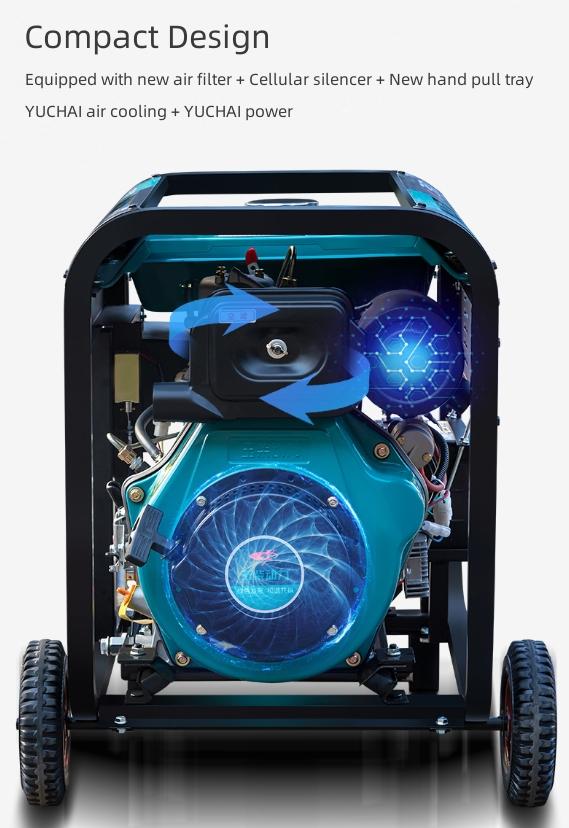

| Form | Single cylinder, four stroke, air cooled | Single cylinder, four stroke, air cooled | Single cylinder, four stroke, air cooled |
| Structure type | open type | open type | open type |
| Suction mode | normally aspirated | normally aspirated | normally aspirated |
| Speed regulation mode | Machinery | Machinery | Machinery |
| Cylinder diameter (mm) | 88 | 88 | 88 |
| Piston path (mm) | 75 | 75 | 75 |
| Displacement (L) | 0.456 | 0.456 | 0.456 |
| Compressor | 19.5:1 | 19.5:1 | 19.5:1 |
| Fuel consumption rate g/kw·h | 275 | 275 | 275 |
| Oil Capacity (L) | 1.65 | 1.65 | 1.65 |
| Rated speed (r/min) | 3000 | 3000 | 3000 |
| Engine power kw | 6.8 | 6.8 | 6.8 |
| Starting mode | Electrical Starting | Electrical Starting | Electrical Starting |

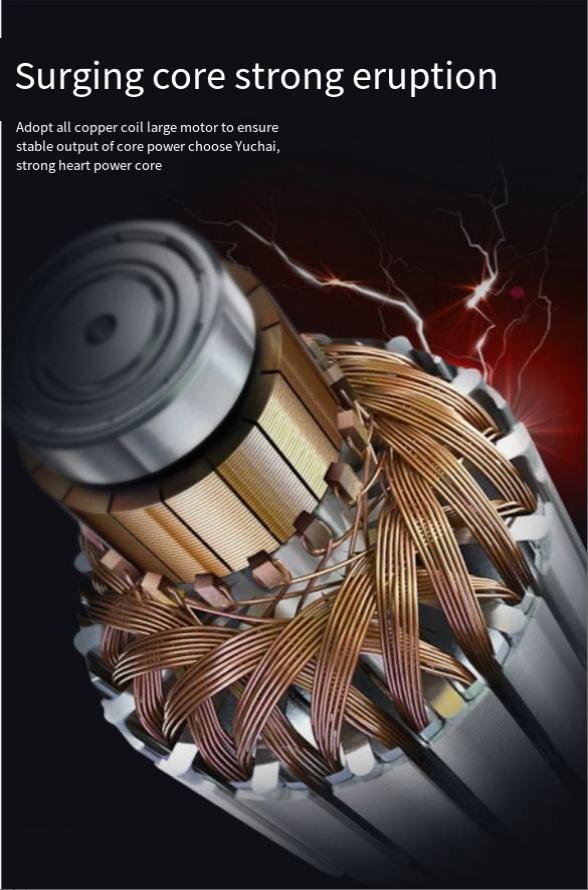

| Electric machine | pure coppe | pure coppe | pure coppe |
| Motor insulation class | F | F | F |
| Steady-state speed adjustment (%) | 5 | 5 | 5 |
| Temperature rise | 40 | 40 | 40 |
| Lubricating oil grade | SAE 10W30 (CD level or above) | SAE 10W30 (CD level or above) | SAE 10W30 (CD level or above) |
| Diesel type | 0#(Summer) -10# (Winter) - 35# (cold) | 0#(Summer) -10# (Winter) - 35# (cold) | 0#(Summer) -10# (Winter) - 35# (cold) |
| Starting battery capacity | 12V 32AH | 12V 32AH | 12V 32AH |
| Dc output (V/A) | 12V 8.3A | 12V 8.3A | 12V 8.3A |
| Controller | Hanjing brand | Hanjing brand | Hanjing brand |

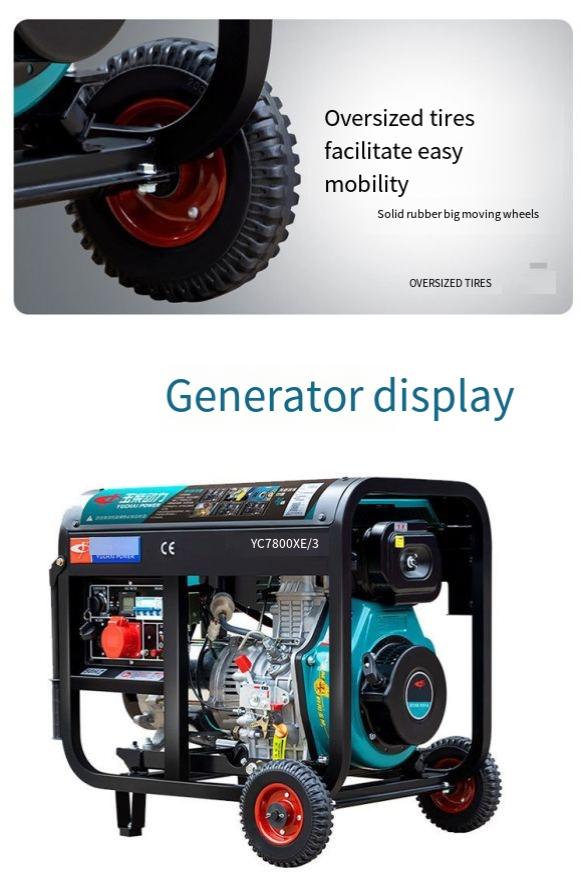

| Disposition | 1. Electric starting (including battery), 2.188FE diesel engine, 3. Three-hole anti-loose, 4.30 Square pipe rack, 5. With arc plate, 6. Single axle, 7. Double handles (two wheels) including carton packing |
1. Electric starting (including battery), 2.188FE diesel engine, 3. Three-hole anti-loose, 4.30 Square pipe rack, 5. With arc plate, 6. Single axle, 7. Double handles (two wheels) including carton packing |
1. Electric starting (including battery), 2.188FE diesel engine, 3. Three-hole anti-loose, 4.30 Square pipe rack, 5. With arc plate, 6. Single axle, 7. Double handles (two wheels) including carton packing |
