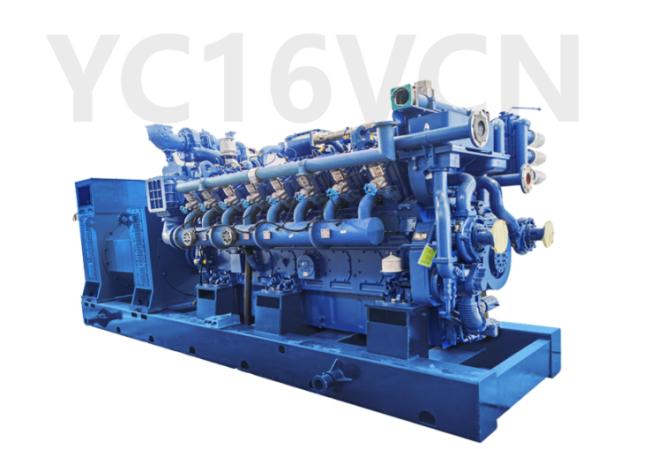

2MW Yuchai YC16VCN Coal Mine Gas Power Generator Set 2000KW Fully Automatic Generator

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 15-45 working days
Brand: YingLi
Product Description







High reliability

Based on the design and production platform of mature products,

Yuchai independently developed and manufactured high-temperature wear-resistant materials suitable for gas generator sets and high-strength cylinder block, cylinder head, camshaft, crankshaft, common base and other major components.

Greatly improve the reliability and durability of products.







Efficient and environmentally friendly

Using mature rarefied combustion,

Capacitive high energy ignition module,

Yuchai patent combustion chamber,

Oxygen sensor closed-loop control and other technologies,

Ensure efficient and clean combustion of gas,

Precise control of air-fuel ratio,

Ensure low emissions while improving performance consistency and stability.















机组参数
Maching series Data

机组型号
Model

YC16VCG-2000M5HC

额定功率
Rated Power(kW)

2000KW

额定电压
Rated Voltage(V)

10500

额定电流
Rated Current(A)

137.5A

频率
Frequency(Hz)

50

电效率
Electrical Efficiency

40%

长×宽×高
Length × width × height(mm)

6050×2100×2850

发动机参数
Date of Engine

额定转速
Rated speed(r/min)

1500

排量
Displacement(L)

105.6

缸数-缸径/行程
Number of cylinders - cylinder diameter(mm)

16-200/210

机油耗
oil consumption(g/kwh)

≤0.3

氮氧化合物排放
Nitrogen oxide emissions(mg/Nm3)

<500

注:上述所有数据在标准参考条件测试得出,且会随配置变化和技术发展而变化.
Note: All data above are tested under standard reference conditions and are subject to configuration changes and technological developments.









Low maintenance costs

Yuchai patented cylinder liner,

Piston ring and valve seal technology,

Greatly reduce the consumption rate of lubricating oil,

Lubricating oil replacement cycle exceeds 1000h.

Gas generator set supporting the use of good versatility,

Easy to repair parts,

Greatly reduce the maintenance cost of power generation equipment.









Safety protection

Adopting independent and mature unit control system,

The control system is stable,

Knock monitoring is set for each cylinder.

Real-time monitoring of the whole machine status,

Ensure the safety of the whole machine.



Generator of electricity

The generator has the advantages of high power generation efficiency, low temperature rise, low waveform distortion rate, good dynamic performance, and stable AVR parallel operation.

With first-class reliability and durability,

It can meet the requirements of various harsh environments.
