350V Gas Discharge Tube Arrester Surface Mount GDT For Communication Equipment
350V Gas Discharge Tube Arresters SC2E5-350LSMD, Surface Mount GDT Suitable for Communication Equipment
DATASHEET: SC2E5-SMD_v2110.1.pdf
| Part Number | DC Spark-over Voltage | Maximum Impulse Spark-over Voltage | Minimum Insulation Resistance | Maximum Capacitance | Arc Voltage | Service Life | ||||
Nominal Impulse Discharge Current | Max Impulse Discharge Current | Nominal Alternating Discharge Current | Impulse Life | |||||||
| @100V/S | @100V/μs | @1KV/μs | @1MHz | @1A | @8/20μs ±5 times | @8/20μs 1 time | @50Hz 1 Sec 10 times | @10/1000μs 300 times | ||
| SC2E5-75LSMD | 75V±20% | ＜500V | ＜650V | 1 GΩ (at 50V DC) | ＜1.0pF | ~15V | 5KA | 10KA | 5A | 100A |
| SC2E5-90LSMD | 90V±20% | ＜500V | ＜650V | 1 GΩ (at 50V DC) | ＜1.0pF | ~15V | 5KA | 10KA | 5A | 100A |
| SC2E5-150LSMD | 150V±20% | ＜500V | ＜650V | 1 GΩ (at 50V DC) | ＜1.0pF | ~20V | 5KA | 10KA | 5A | 100A |
| SC2E5-200LSMD | 200V±20% | ＜500V | ＜650V | 1 GΩ (at 100V DC) | ＜1.0pF | ~20V | 5KA | 10KA | 5A | 100A |
| SC2E5-230LSMD | 230V±20% | ＜600V | ＜700V | 1 GΩ (at 100V DC) | ＜1.0pF | ~20V | 5KA | 10KA | 5A | 100A |
| SC2E5-300LSMD | 300V±20% | ＜700V | ＜800V | 1 GΩ (at 100V DC) | ＜1.0pF | ~20V | 5KA | 10KA | 5A | 100A |
| SC2E5-350LSMD | 350V±20% | ＜700V | ＜800V | 1 GΩ (at 100V DC) | ＜1.0pF | ~20V | 5KA | 10KA | 5A | 100A |
Notes:
| ||||||||||
Descriptions:

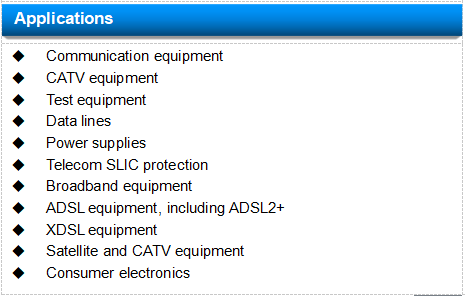

These protective components are also indispensable in other sectors, In AC power transmission systems, they are often used with current-limiting varistors, In customer premises equipment such as DSL modems, WLAN routers, TV sets and cable modems In air-conditioning equipment, the integral black-box concept offers graduated protection by combining arresters with varistors, PTC, diodes and inductor.
