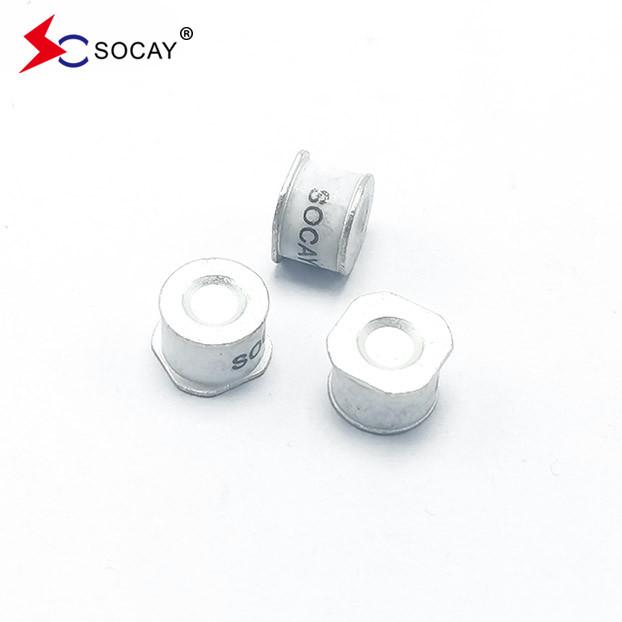

SMD Ceramic Gas Discharge Tube SC2E8-350MSMD Surface Mount Gas Tube Arrester

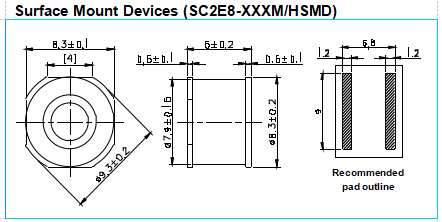

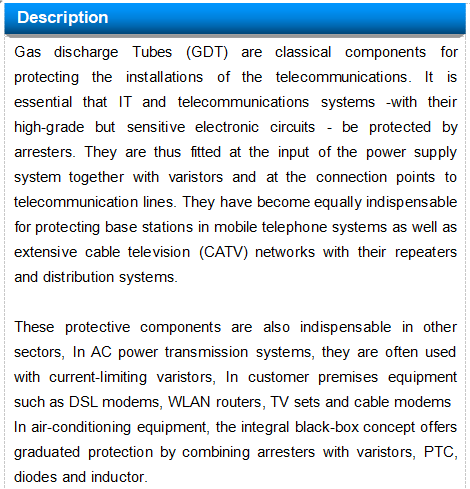

SMD Ceramic Gas Discharge Tube SC2E8-350MSMD, Surface Mount GDT Arrester
DATASHEET: SC2E8_v91.1.pdf
| Part Number | Marking |
DC Spark- over Voltage |
Maximum Impulse Spark-over Voltage | Minimum Insulation Resistance | Maximum Capacitance | Arc Voltage | Service Life | ||||
|
Nominal Impulse Discharge Current |
Max Impulse Discharge Current |
Nominal Impulse Discharge Current |
Impulse Life | ||||||||
| @100V/S | @100V/μs | @1KV/μs | @1MHz | @1A |
@8/20μs ±5 times |
@8/20μs 1 time |
@50Hz 1 Sec 10 times |
@10/1000μs 300 times |
|||
|
SC2E8-75M SC2E8-75ML SC2E8-75MSMD |
SOCAY 75M |
75V±20% | ＜500V | ＜600V | 1 GΩ (at 25V) | ＜1.5pF | ~15V | 10KA | 20KA | 10A | 100A |
|
SC2E8-90M SC2E8-90ML SC2E8-90MSMD |
SOCAY 90M |
90V±20% | ＜500V | ＜600V | 1 GΩ (at 50V) | ＜1.5pF | ~15V | 10KA | 20KA | 10A | 100A |
|
SC2E8-150M SC2E8-150ML SC2E8-150MSMD |
SOCAY 150M |
150V±20% | ＜500V | ＜600V | 1 GΩ (at 50V) | ＜1.5pF | ~20V | 10KA | 20KA | 10A | 100A |
|
SC2E8-230M SC2E8-230ML SC2E8-230MSMD |
SOCAY 230M |
230V±20% | ＜600V | ＜700V | 1 GΩ (at 100V) | ＜1.5pF | ~20V | 10KA | 20KA | 10A | 100A |
|
SC2E8-250M SC2E8-250ML SC2E8-250MSMD |
SOCAY 250M |
250V±20% | ＜700V | ＜800V | 1 GΩ (at 100V) | ＜1.5pF | ~20V | 10KA | 20KA | 10A | 100A |
|
SC2E8-300M SC2E8-300ML SC2E8-300MSMD |
SOCAY 300M |
300V±20% | ＜800V | ＜900V | 1 GΩ (at 100V) | ＜1.5pF | ~20V | 10KA | 20KA | 10A | 100A |
|
SC2E8-350M SC2E8-350ML SC2E8-350MSMD |
SOCAY 350M |
350V±20% | ＜800V | ＜900V | 1 GΩ (at 100V) | ＜1.5pF | ~20V | 10KA | 20KA | 10A | 100A |
| Materials |
Leaded Device: Nickel-plated with Tinplated wires Surface Mount: Dull Tin-plated |
|
| Product Marking |
SOCAY XXXM/H XXX -Nominal voltage M - 10KA H - 20KA |
|
|
Glow to Arc Transition Current |
< 0.5 Amps | |
| Glow Voltage | ~60 Volts | |
|
Storage and Operational Temperature |
-40 to +90°C | |
| Weight | SC2E8-XXXML | ~1.5g |
| SC2E8-XXXHL | ~1.6g | |
| SC2E8-XXXM/H | ~1.35g | |
| SC2E8-XXXM/HSMD | ~1.5g | |
| Climatic category (IEC 60068-1) | 40/ 90/ 21 | |
