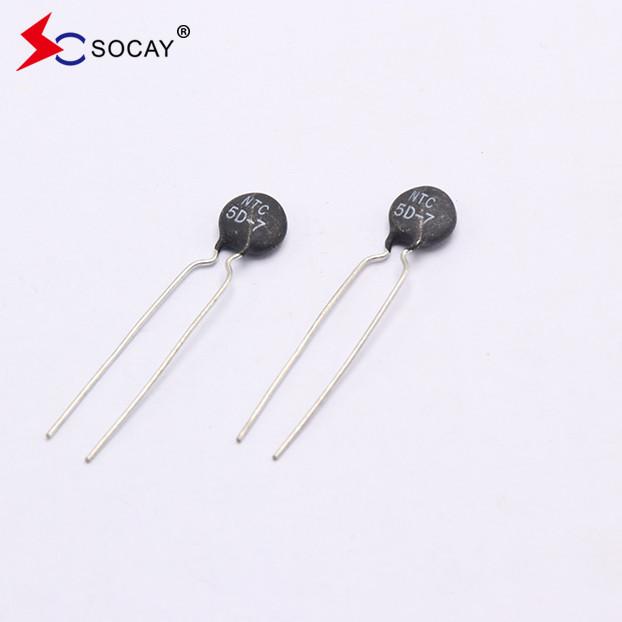

78μF 2A Imax NTC Thermistor MF72-SCN5D-7 Radial Lead Resin Coated
78μF 2A Imax NTC Thermistor MF72-SCN5D-7 Radial Lead Resin Coated
DATASHEET: MF72-SCN5D-7_v2105.1.pdf

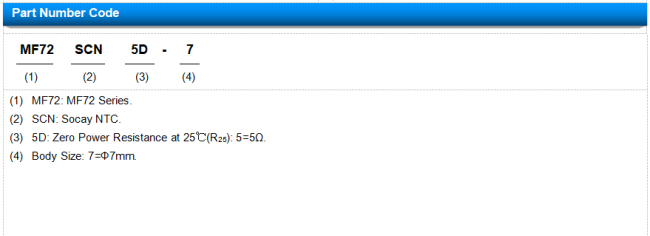

| Part Number |
Resistance at 25℃ ±20% |
Max. Permissible Working Current |
Resistance under Load (mΩ) |
Dissipation Factor |
Thermal Time Constant |
Maximum permissible capacitance @240Vac |
| R25(Ω) | Imax(A) | (mΩ) | δ(mW/℃) | τ(Sec.) | C(uF) | |
| MF72-SCN5D-7 | 5 | 2 | 283 | 10 | 30 | 78 |
About NTC
The working principle of NTC thermistor is: when the temperature rises, the free electrons and holes in the thermosensitive material increase, causing the electron concentration within the material to increase, so the conductivity also increases. Since resistance and conductivity are related, resistance decreases as temperature increases.
The functions of NTC thermistor mainly include the following aspects:
1. Temperature measurement and control: NTC thermistors can be used to measure and control the temperature of various devices and systems, such as car engines, solar panels, refrigerators, ovens, etc.
2. Electronic circuit protection: NTC thermistors can be used for overcurrent, overvoltage, overheating and other protection of electronic circuits, such as power supplies, motor drivers, UPS and other equipment.
3. Environmental monitoring: NTC thermistors can be used to monitor indoor and outdoor environmental temperatures, such as greenhouses, weather stations, etc.
4. Medical equipment: NTC thermistors can be used in medical equipment, such as blood glucose meters, thermometers, etc.
5. Wearable devices: NTC thermistors can be used in wearable devices, such as smart bracelets, smart watches, etc., to measure physiological parameters such as human body temperature and heart rate.
Features:
|

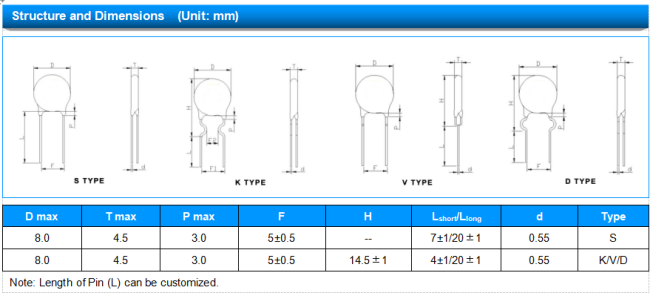

| Part Number | Type of L | Quantity (pcs/bag) |
| MF72-SCN5D-7 | Lshort | 1000 |
| Llong | 500 |
| Item | Test conditions / Methods | Test Result |
|
Tensile Strength of Terminals |
Fasten body with a Load Applied to each lead 3.0Kg for 1sec. | No break out and damage |
|
Bending Strength of Terminals |
Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. | No break out and damage |
| Solder Ability | When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. | More than 95% solder ability |
| Temp. Cycle Test |
(-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) × 5Cycles |
∣ΔR/R∣≤ ±20 % |
| Humidity Test | 45℃ 95%RH×1000 hours | ∣ΔR/R∣≤ ±20 % |
| Load Life | 6 AMP×1000 hours | ∣ΔR/R∣≤ ±20 % |
| Insulation Test | DC 700V | R≥500MΩ |
