China SOCAY MF72-SCN20D-5 NTC 20D-5 Power Thermistor 1878mΩ 40μF RoHS compliant for sale

SOCAY MF72-SCN20D-5 NTC 20D-5 Power Thermistor 1878mΩ 40μF RoHS compliant

Name: SOCAY MF72-SCN20D-5 NTC 20D-5 Power Thermistor 1878mu03a9 40u03bcF RoHS compliant
Brand: Shenzhen Socay Electronics Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1000PCS / 2000PCS

Delivery Time: 5-7 work days

Brand: SOCAY

Product Description

SOCAY MF72-SCN20D-5 NTC 20D-5 Power Thermistor 1878mΩ 40μF RoHS compliant

DATASHEET:

Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac

R25(Ω)

Imax(A)

(mΩ)

δ(mW/℃)

τ(Sec.)

C(μF)

MF72-SCN5D-11

0.3

1878

Features:

RoHS & Halogen Free (HF) compliant
Body size: Ф5mm
Radial lead resin coated
High power rating
Wide resistance range
Cost effective
Operating temperature range: -40~+200℃
Agency recognition: UL /cUL/RoHS

Applications:

u Electric motor
u Switch mode power supply
u Adapter
u Transformer
u Halogen lamp
u Projector
u LED driver circuit

Storage Conditions of Products:

Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.

Relative Humidity: ≤ 75%RH.

Keep away from corrosive atmosphere and sunlight.

Period of Storage: 1 year.

Packing Specifiction:

Part Number	Type of L	Quantity (pcs/bag)
MF72-SCN5D-11	Lshort	2000
	Llong	1000

Reliability:

Item	Test conditions / Methods	Test Result
Tensile Strength of Terminals	Fasten body with a Load Applied to each lead 3.0Kg for 1sec.	No break out and damage
Bending Strength of Terminals	Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite.	No break out and damage
Solder Ability	When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%.	More than 95% solder ability
Temp. Cycle Test	(-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) × 5Cycles	∣ΔR/R∣≤ ±20 %
Humidity Test	45℃ 95%RH×1000 hours	∣ΔR/R∣≤ ±20 %
Load Life	6 AMP×1000 hours	∣ΔR/R∣≤ ±20 %
Insulation Test	DC 700V	R≥500MΩ

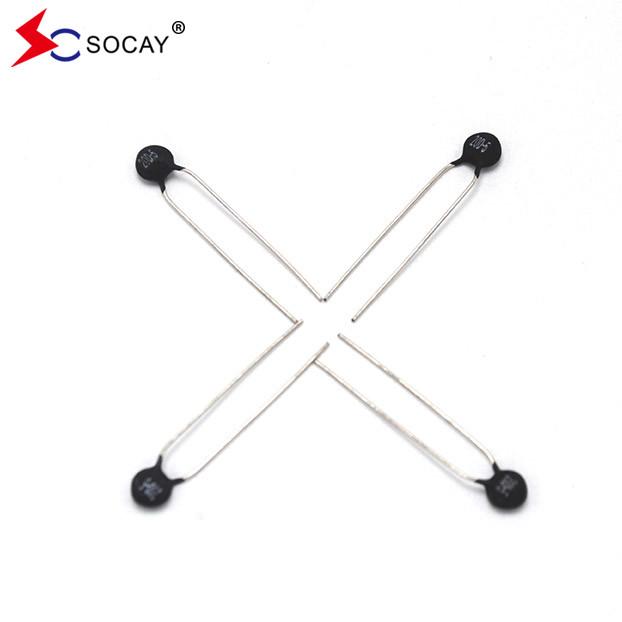

Product Picture:

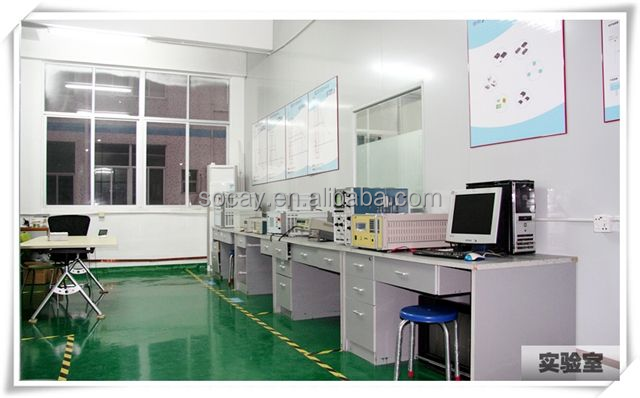

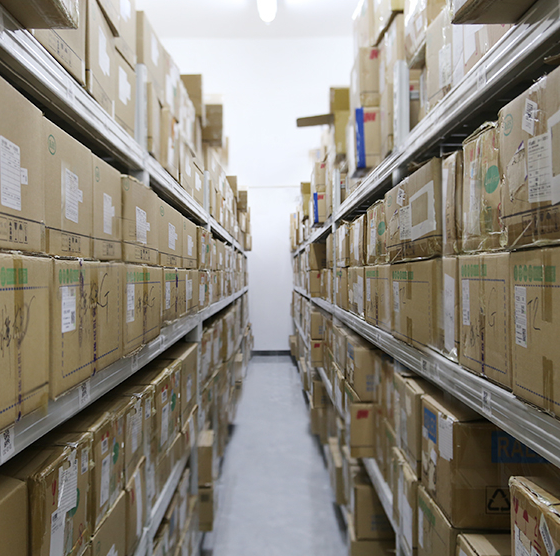

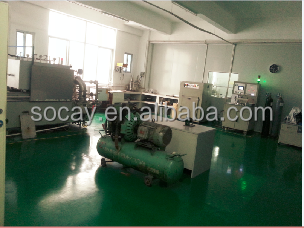

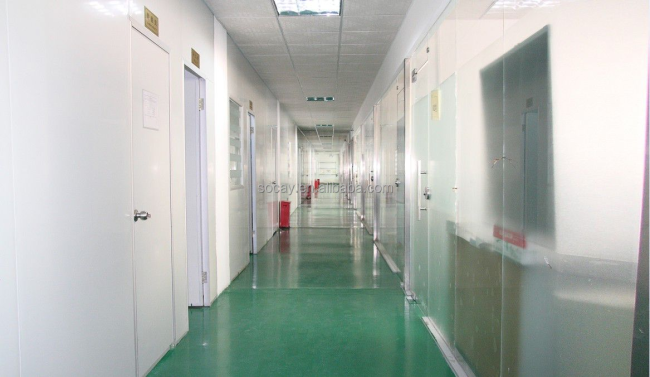

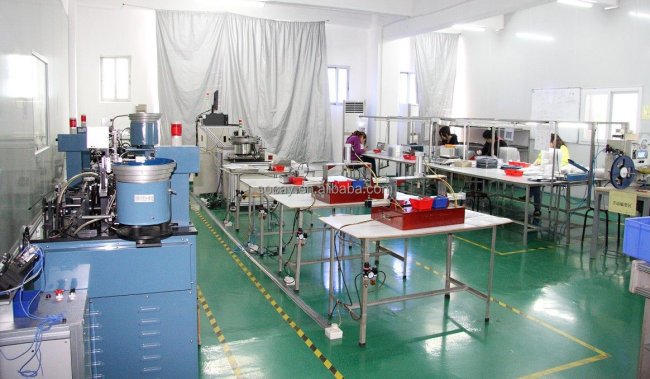

Company profile:

Certificates:

Mode of Transport::

FAQ:

Q: May we get some samples?

A: Of course,samples are available.

Q: What is product lead time?

A: For GDT,TVS and ESD,lead time will take 3-4 weeks.For TSS,MOV,MLV,NTC,and PPTC,lead time will take 4-6 weeks.Accurate lead time will be further confirmed when we know your specific requirement.

Q: Are you a Manufacturer?

A: YES.
