SOCAY Power NTC Thermistor MF72-SCN10D-20 10Ω 20mm Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN10D-20 10Ω 20mm Imax Wide Resistance Range
DATASHEET:
| Features | RoHS & Halogen Free (HF) compl Body size: Ф20mm Radial lead resin coate High power ratin Wide resistance range Cost effective Operating temperature range: -40~+200℃ Agency recognition: UL /cUL/RoHS |
|||||
| Recommended Applications | Switch mode power supply Electric motor Transformer Adapter Projector Halogen lam LED driver circui |
|||||
| Storage Conditions of Products |
Storage Conditions:
|
|||||
| Electrical characteristics: | ||||||
| Part Number | Resistance at 25℃ ±20% |
Max. Permissible Working Current |
Resistance under Load (mΩ) |
Dissipation Factor |
Thermal Time Constant |
Maximum permissible capacitance @240Vac |
| R25(Ω) | Imax(A) | (mΩ) | δ(mW/℃) | τ(Sec.) | C(uF) | |
| MF72-SCN10D-9 | 10 | 16 | 194 | 23 | 118 | 560 |
Part No. Code:
(1) MF72: MF72 Series.
(2) SCN: Socay NTC.
(3) 2.5D: Zero Power Resistance at 25℃(R25): 10=10Ω.
(4) Body Size: 20=Ф20mm.
Maximum Power Rating(Pmax)

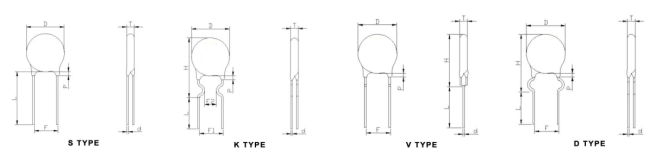

Dimensions and Structure (Unit: mm)
| D max | T max | P max | F | H | Lshort / Llong | d | Type |
| 22 | 7 | 3 | 10±0.5 | -- | 7±1/20±1 | 1 | S |
| 22 | 7 | 3 | 10±0.5 | 27.5±1 | 4±1/20±1 | 1 | K/V/D |
Packing:
| Part Number | Type of L | Quantity (pcs/bag) |
| MF72-SCN10D-20 | Lshort | 100 |
| Llong | 100 |

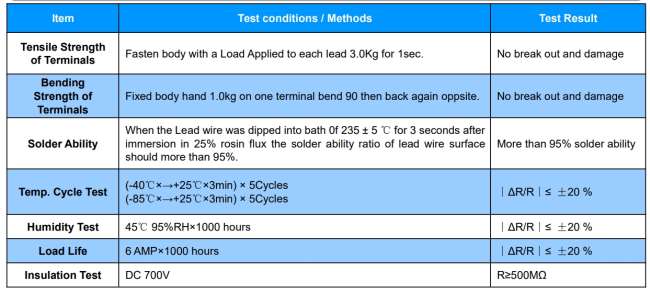

Dependability:

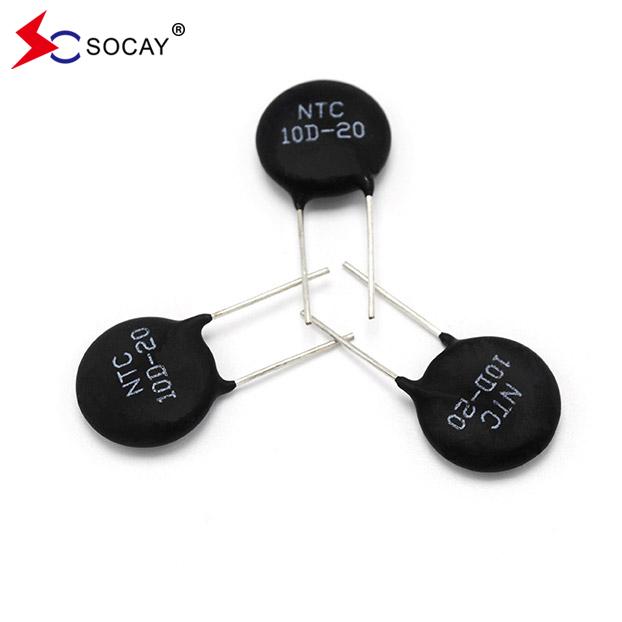

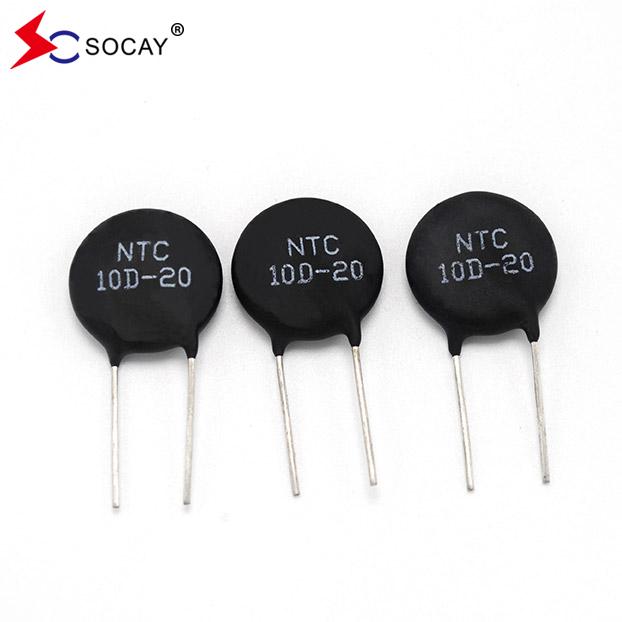

Product Display
Company Profile:
FAQ
Q: May we get some samples?
A: Of course,samples are available.
Q: What is product lead time?
For GDT, TVS, and ESD, the lead time will 1-2 weeks. For TSS, MOV, MLV, NTC, and PPTC, the lead time 2-3 weeks. According your specific requirements, we will further confirm the accurate lead time.
Q: Do you support customization?
A: Of course, We do.
Please feel free to contact us if you have any question.
Contact Person: Aria Wei
Tel/WhatsApp/Wechat/Skype: +8615778830733
Email Address: sc72@socay.com
Website: www.socay.com / www.socay.en.alibaba.com
Address: Floor 4, Building C, Hengxing Science park, No.19 Minqing Road, Longhua District, Shenzhen
