SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range
Price:
USD0.01-0.25/piece
MOQ:
500
Delivery Time:
5-8 work days
Brand:
SOCAY
Product Description
SOCAY Power NTC Thermistor MF72-SCN16D-9 16Ω 9mm Wide Resistance Range
DATASHEET:
|
Features:
Applications:
Storage Conditions of Products:
Storage Temperature: -10℃ ~ +40℃.
Part Number Code: MF72 SCN 2.5D - 9 (1) (2) (3) (4)
(1) MF72: MF72 Series. (2) SCN: Socay NTC. (3) 16D: Zero Power Resistance at 25℃(R25). (4) Body Size: 9=Ф9mm.
|
| Electrical Characteristics |
| Resistance at 25℃ ±20% | R25(Ω) | 2.5(Ω) |
| Max. Permissible Working Current | Imax(A) | 4A |
| Resistance under Load (mΩ) | (mΩ) | 128mΩ |
| Dissipation Factor | δ(mW/℃) | 11mW/℃ |
| Thermal Time Constant | τ(Sec.) | 35Sec. |
| permissible capacitance @240Vac | C(uF) | 110uF |
| Maximum Power Rating(Pmax) |
|
|
| MF72-SCN2.5D-9 Packing Specifiction | Quantity (pcs/bag) |
| L short | 1000 |
| L long | 500 |
|
| D max | T max | P max | F | H | Lshort/Llong | d | Type |
| 10.5 | 5.5 | 3.0 | 7.5±0.5 | -- | 7±1/20±1 | 0.75 | S |
| 10.5 | 5.5 | 3.0 | 7.5±0.5 | 16.5±1 | 4±1/20±1 | 0.75 | K/V/D |

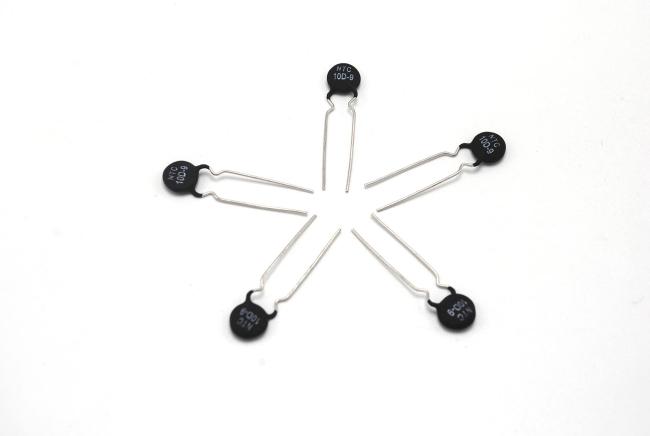

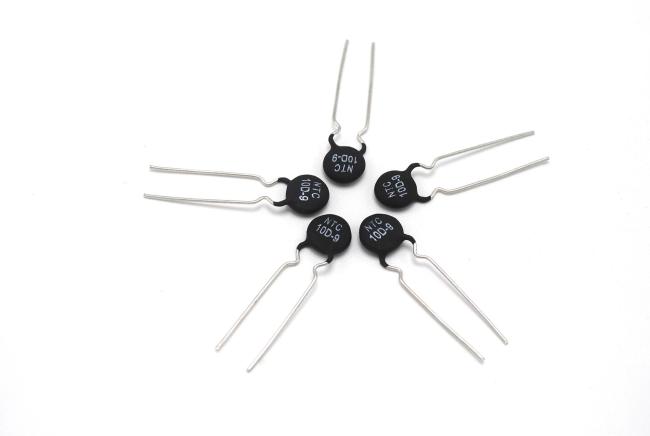

Product Pictures:
Company Profile:
Logistics services:

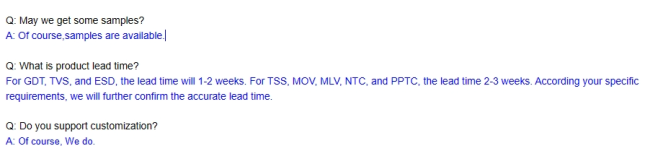

FAQ:
