1. RoHS & Halogen Free (HF) compliant.
2. Radial lead resin coated.
3. Body size: Ф11mm.
4. Wide resistance range.
5. High power rating.
6. Operating temperature range: -40~+200℃.
7. Cost effective.

1. Electric motor.
2. Switch mode power supply.
3. Adapter.
4. Transformer.
5. Projector.
6. LED driver circuit.
7. Halogen lamp.

1. Period of Storage: 1 year.
2. Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.
Relative Humidity:≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.

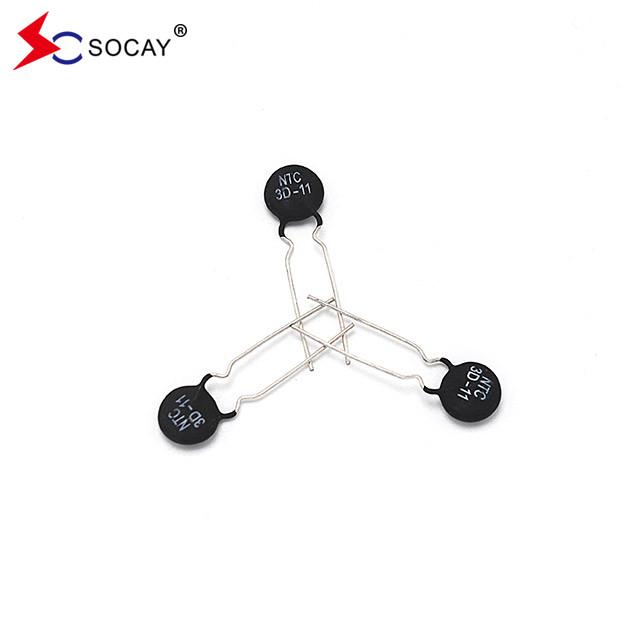

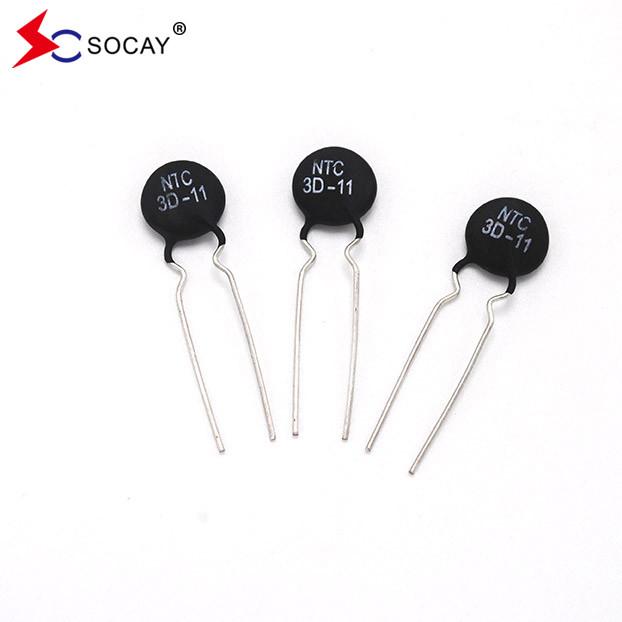

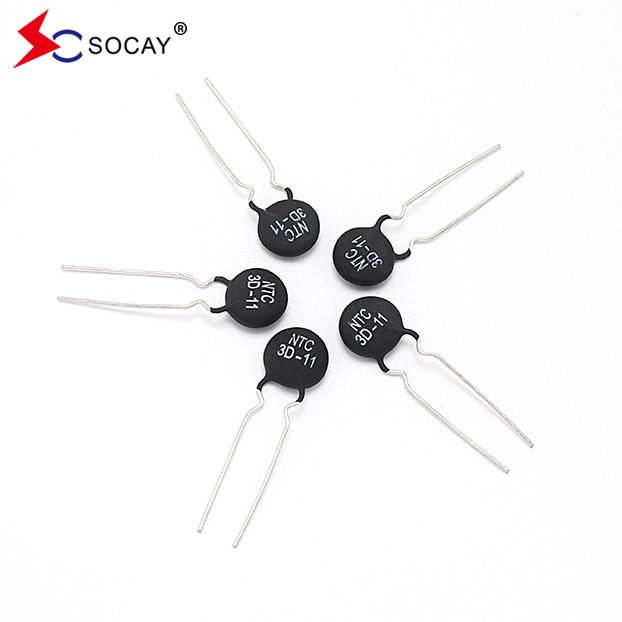

MF72  SCN  3D  -  11

(1)       (2)     (3)      (4)

1. Resistance at 25℃ ±20%: R3(Ω)
2. Resistance under Load (mΩ): 126mΩ
3. Max. Permissible Working Current: 5A
4. Thermal Time Constant τ(Sec.):45Sec.
5. Dissipation Factor δ(mW/℃): 13mW/℃
6. permissible capacitance @240Vac C(uF): 220uF
