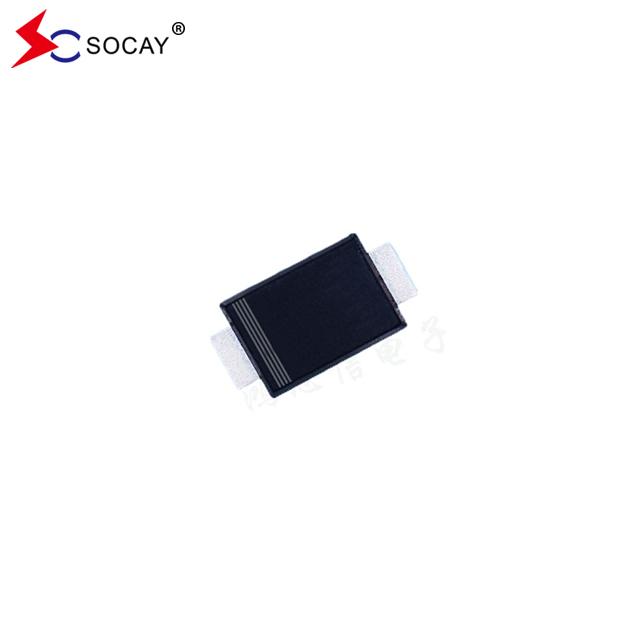

SOD-123FL Package Schottky Barrier Rectifiers SBD102D1~SBD120D1 20 To 200VRRM SBD104D1
SOD-123FL Package Schottky Barrier Rectifiers SBD102D1~SBD120D1 20 to 200VRRM SBD104D1
Schottky Barrier Rectifiers SBD102D1~SBD120D1 DATASHEET: SBD102D1~SBD120D1(SOD-123FL)_v2109.1.pdf
The Features of Schottky Barrier Rectifiers SBD104D1 :
- Fast switching speed
- Surface mount package ideally suited for automatic insertion
- Schottky Barrier Rectifiers SBD104D1 has Low power loss, high efficiency
- SBD104D1 Lead free in compliance with EU RoHS 2.0
-
The product SBD104D1 is Green molding compound as per IEC 61249 standard
Mechanical Data of Schottky Barrier Rectifiers SBD104D1:
- Case: SOD-123FL, Plastic
- Component's Terminals: Solderable per MIL-STD-750, Method 2026
-
Its Polarity: Color band denotes cathode end
- SBD104D1 has Apporx. Weight: 0.0006 ounces, 0.0173 grams
Schottky Barrier Rectifiers SBD104D1 Electrical and Thermal Characteristics (TA=25℃ unless otherwise noted):
| SBD104D1 Parameter | Symbol | SBD102D1 | SBD103D1 | SBD104D1 | SBD106D1 | SBD110D1 | SBD115D1 | SBD120D1 | Unit | ||||
|
SBD104D1 Maximum VRRM |
VRRM | 20 | 30 | 40 | 60 | 100 | 150 | 200 | V | ||||
| Maximum VRMS | VRMS | 14 | 21 | 28 | 42 | 70 | 105 | 140 | V | ||||
| Maximum VDC | VDC | 20 | 30 | 40 | 60 | 100 | 150 | 200 | V | ||||
| Average Rectified Current IF(AV) | IF(AV) | 1 | A | ||||||||||
| SBD104D1 Forward Current RMS, D=0.5 | IF(RMS) | 2 | A | ||||||||||
| SBD104D1 Non-repetitive Peak Forward Surge Current at t=8.3ms | IFSM | 40 | 30 | A | |||||||||
| Maximum VF at IF=1A | VF | 0.55 | 0.7 | 0.8 | 0.85 | V | |||||||
| SBD104D1 Reverse Leakage Current at VRRM | IR | 30 | μA | ||||||||||
|
SBD104D1 Typical Thermal Resistance |
(Note 1) | RθJC | 32 | ℃/W | |||||||||
| (Note 2) | RθJA | 200 | |||||||||||
| Typical CJ Rating at VR=0V | CJ | 155 | 125 | 100 | 85 | pF | |||||||
| SBD104D1 Operating Junction Temperature and Storage Temperature Range | TJ,TSTG | -55 to +150 | ℃ | ||||||||||
|
Notes:1.Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area. 2.Mounted on a FR4 PCB, single-sided copper, mini pad. |
|||||||||||||

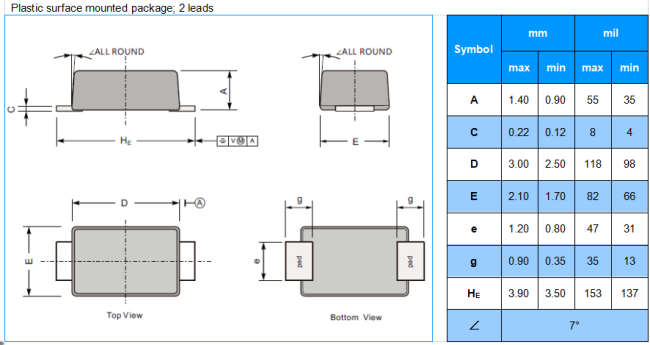

Schottky Barrier Rectifiers SBD104D1 SOD-123FL Package Outline (Unit:inch(mm)):
Packaging Information:
| Part Number | Component Package | Quantity | Packaging Option |
| SBD102D1~SBD120D1 | SOD-123FL | 3000 PCS | per 7" plastic Reel |
