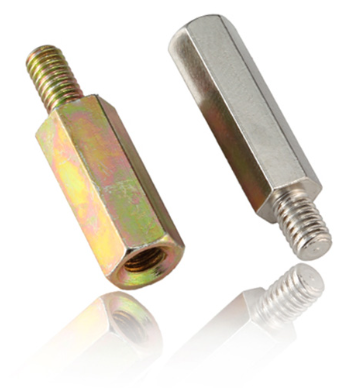

Hex Standoffs And Spacers Femal Male Thread Zinc Plated ISO14001
Wuerd is a professional manufacturing supplier for standoffs,pillars,spacers,with high quality at competitive prices in China.
Standoffs,pillars and spacers
Femal-Male thread,Female-Female thread,steel,stainless steel,brass etc.

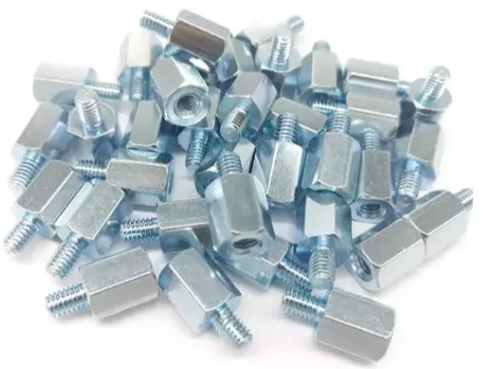

Standoffs and Hex spacers,Female-Male thread, steel,zinc white-blue:
| Item | s | d | h2 | h1 | h min | Material |
| H4.75-M3x14+6 | 4.75 | M3 | 14 | 6 | 6 | Steel |
| H4.75-M3x18+6 | 4.75 | M3 | 18 | 6 | 6 | Steel |
| H4.75-M3x25+6 | 4.75 | M3 | 25 | 6 | 6 | Steel |
| H4.75-M3x30+6 | 4.75 | M3 | 30 | 6 | 6 | Steel |
| H4.75-M3x35+6 | 4.75 | M3 | 35 | 6 | 6 | Steel |
| H5.5-M3x16+6 | 5.5 | M3 | 16 | 6 | 6 | Steel |
| H6-M4x45+6 | 6 | M4 | 45 | 6 | 6 | Steel |
| H7-M4x40+8 | 7 | M4 | 40 | 8 | 9 | Steel |
| H8-M5x10+10 | 8 | M5 | 10 | 10 | 6 | Steel |
| H10-M6x20+12 | 10 | M6 | 20 | 12 | 12 | Steel |
| H13-M8x20+14 | 13 | M8 | 20 | 14 | 13 | Steel |
Standoffs,pillars and hex spacers:
Material: steel
Surface: zinc white-blue,zinc/yellow,nickel plated
Alternative: stainless steel 304,stainless 316,brass,Aluminum
* Standoff and spacer are made as customer’s drawing and request
* Both inch thread and metric thread are available
Application:
Consumer electronics,Office machinery, Telecommunications equipment, Audiovisual equipment
Why choose Wuerd?
*Customized solution provider and partner
*Good quality
*Competitive prices
*Fast delivery time
*Perfect service and technology support
*RoHS compliant
* The thread and dimensions are 100% checked by image screening machines to make highest quality to meet top-class company requirements.
