1X4 1X3 1X2 4K Video Wall Controller 30Hz 4 Channels HDMI TV Video Wall Processor 2x2
2x2 Video Wall Controller Support 4K@30Hz 1X4 1X3 1X2 4 Channels HDMI TV Wall Controller
Introduction

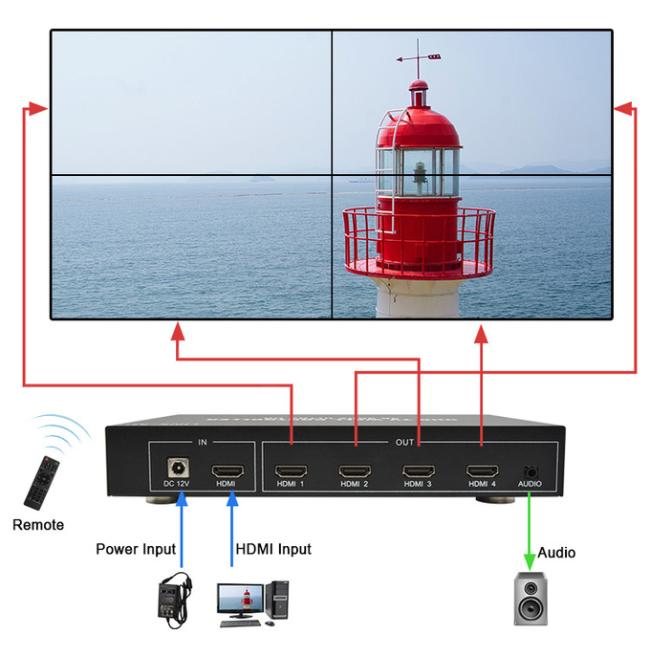

LINK-MI LM-TV04Q This product is a special LCD TV, ultra-narrow LCD screen, projector HD screen splicing processor, a single unit supports 4 HDMI signal output, connected to LCD TV or other display devices, can be customized according to user needs of various splicing mode.
Features
1. Support cascade, the maximum 255 signal output.
2. HD processing chip, up to support 4K@30Hz HDMI signal input.
3. Support infrared remote control, the user can remote control the splicer for a key quick control and full function Simple and convenient, the remote control adopts ultra-sensitive design, easy to use.
4. Support 1 HDMI input signal to the large screen for splicing display.
5. Support audio independent output, support audio and video synchronous output.
6. Support all models of splicing screen and 180 degree image rotation.
7. Support border fading technology, in the case of not using the border fading, the image will appear visually stretched away; after the border fading processing image without distortion, stretching, visual more natural and realistic.
8. Intelligent fan cooling, product performance is more stable and reliable.
Specification
| Model No. | LINK-MI LM-TV04Q |
| Input Signals | |
|
HDMI signal
|
HDMI1.4 HDMI with audio resolution support 640x480 to 3840x2160@30hz；
|
|
Output Signals
|
|
| HDMI 1 | Support 2x2, 1x4, 4x1...etc video wall mode, max resolution upto 1920x1200@60hz |
| HDMI 2 | Support 2x2, 1x4, 4x1...etc video wall mode, max resolution upto 1920x1200@60hz |
| HDMI 3 | Support 2x2, 1x4, 4x1...etc video wall mode, max resolution upto 1920x1200@60hz |
| HDMI 4 | Support 2x2, 1x4, 4x1...etc video wall mode, max resolution upto 1920x1200@60hz |
|
Audio Output
|
3.5 audio interface, supporting left and right channel stereo, simultaneous switching of audio and video signals
|
| Other | |
|
Control
|
IR remote
|
|
Power
|
DC 12V - 2A
|
|
Video wall mode
|
Simple type 4 HDMI out video wall
|
|
Power consumption
|
15W
|
| Carton box size |
210mm(L)*160mm(W)*45mm(H)
|
| Carton box weight |
1.2kg
|

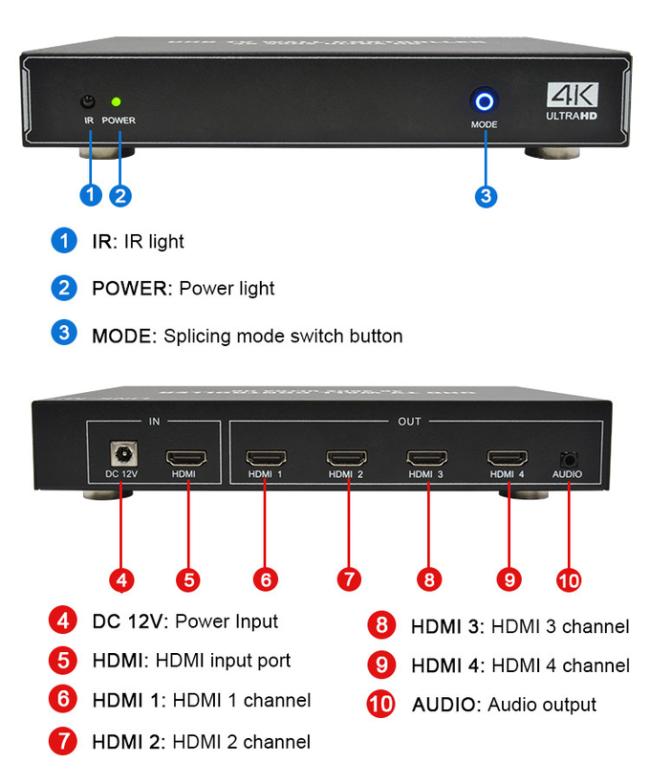

Panel Description
